INVT Goodrive350-19 Series User Manual

Goodrive350-19 series VFD Commissioning
- 39 -
5 Commissioning
5.1 Commissioning lifting in open-loop vector control
5.1.1 Wiring
(+) PB
GD350-19 VFD
R
S
T
R
S
T
M
3~
U
V
W
PE
S1
S2
S3
S4
HDIA
HDIB
S5
S6
COM
Brake
output
VFD fault
output
Brake check
reminding/Overloa
d reminding
RO1A
RO1B
RO1C
RO2A
RO2B
RO2C
Y1
CME
HDO
COM
CME
+24V
Lifting
Lowering
Graded reference terminal 1
Graded reference terminal 2
Graded reference terminal 3
Graded reference terminal 4
Fault reset
Brake feedback
Braking resistor
S7
S8
PW
+24V

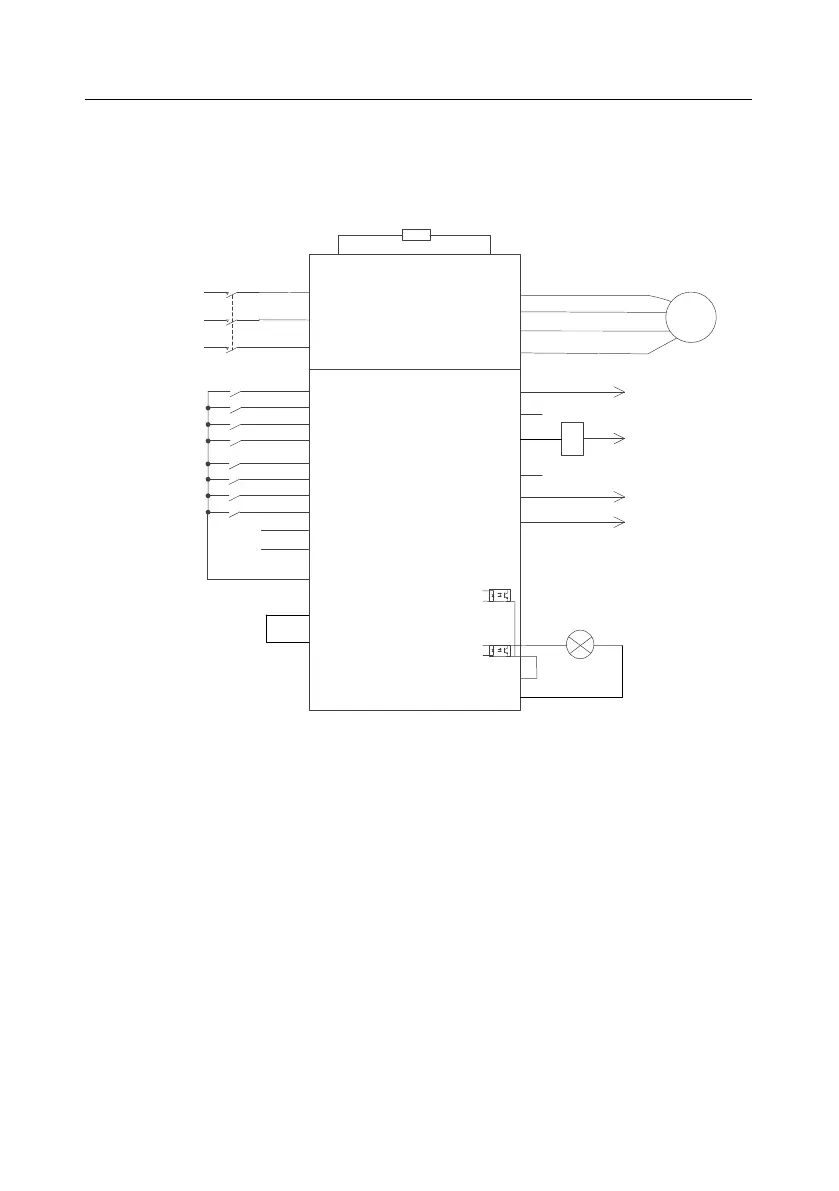

Figure 5.1 Wiring for lifting in open-loop vector control
Note: If the wiring is performed according to Figure 5.1, most VFD parameters need no adjustment. If
the onsite function terminals are inconsistent with the terminals shown in the figure, adjust the input
and output terminal functions according to the actual wiring after selecting the open-loop vector
controlled lifting application macro.
5.1.2 Commissioning procedure
1. Check the wiring and ensure the wiring is proper.
2. Set P00.18=1.
3. Set P02 motor parameters.
4. Set P00.15=2. The keypad displays "-ΓUN-". Press the RUN key to perform static autotuning.
5. Set P90.00=1 to select the open-loop vector controlled lifting function macro.
6. Perform low-speed trial running.
