Goodrive350-19 series VFD Installing
- 24 -
4.2.7 Tilted installation
Hot
air
Hot
Hot
Cold
Cold
Cold
air
air
air
air
air

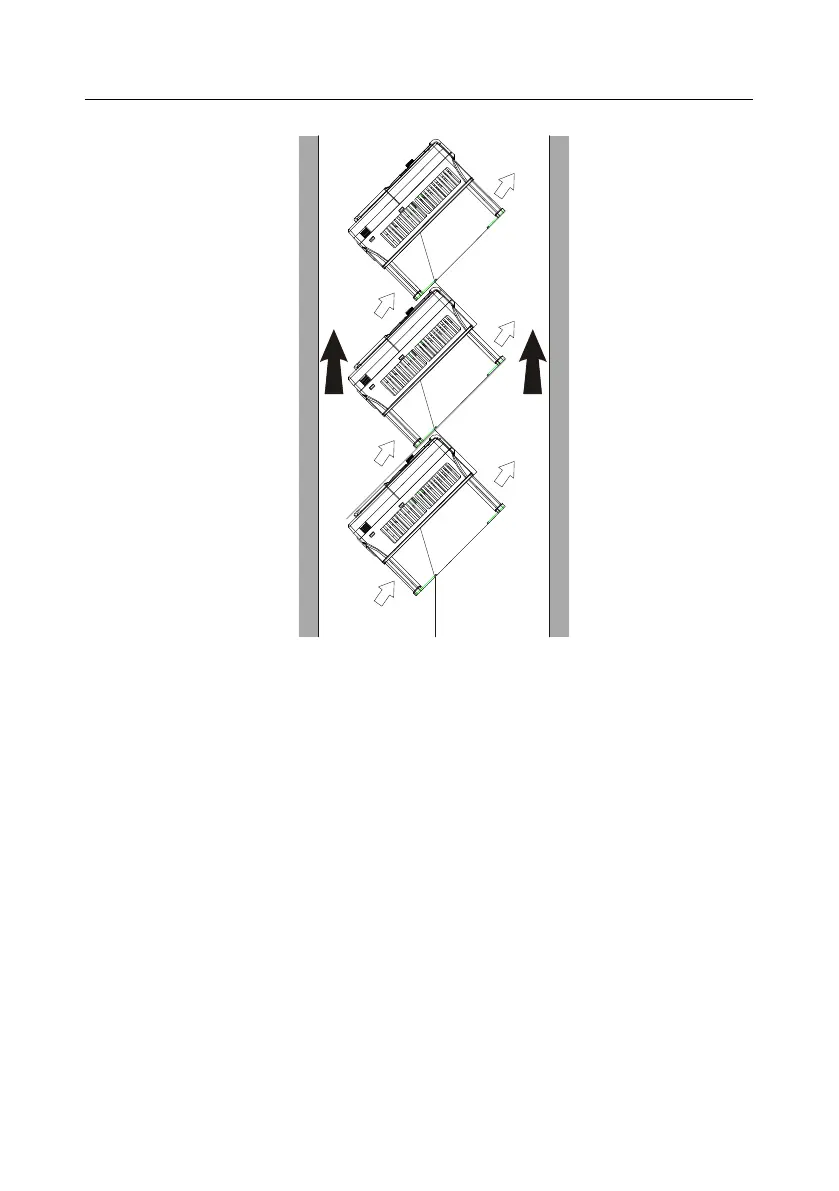

Figure 4.6 Tilted installation
Note: To prevent mutual interference in tilted installation, separate the air inlet ducts of the VFDs from
the air outlet ducts of the VFDs.
