Chapter 6 Operator Control and Display
Panel
This chapter introduces the functions and operation instructions of the parts on UPS operator control
and display panel in detail, and provides LCD display information, including LCD display types, detailed
menu information, prompt window information and UPS alarm list.
6.1 Introduction
The operator control and display panel is located on the front panel of the UPS. Through this LCD
panel, the operator can operate and control the UPS, and check all measured parameters, UPS and
battery status and event and alarm logs. The operator control panel is divided into three functional areas
as shown in fig 6-1: mimic current path, LCD display & Menu keys, and Control and Operation Keys.

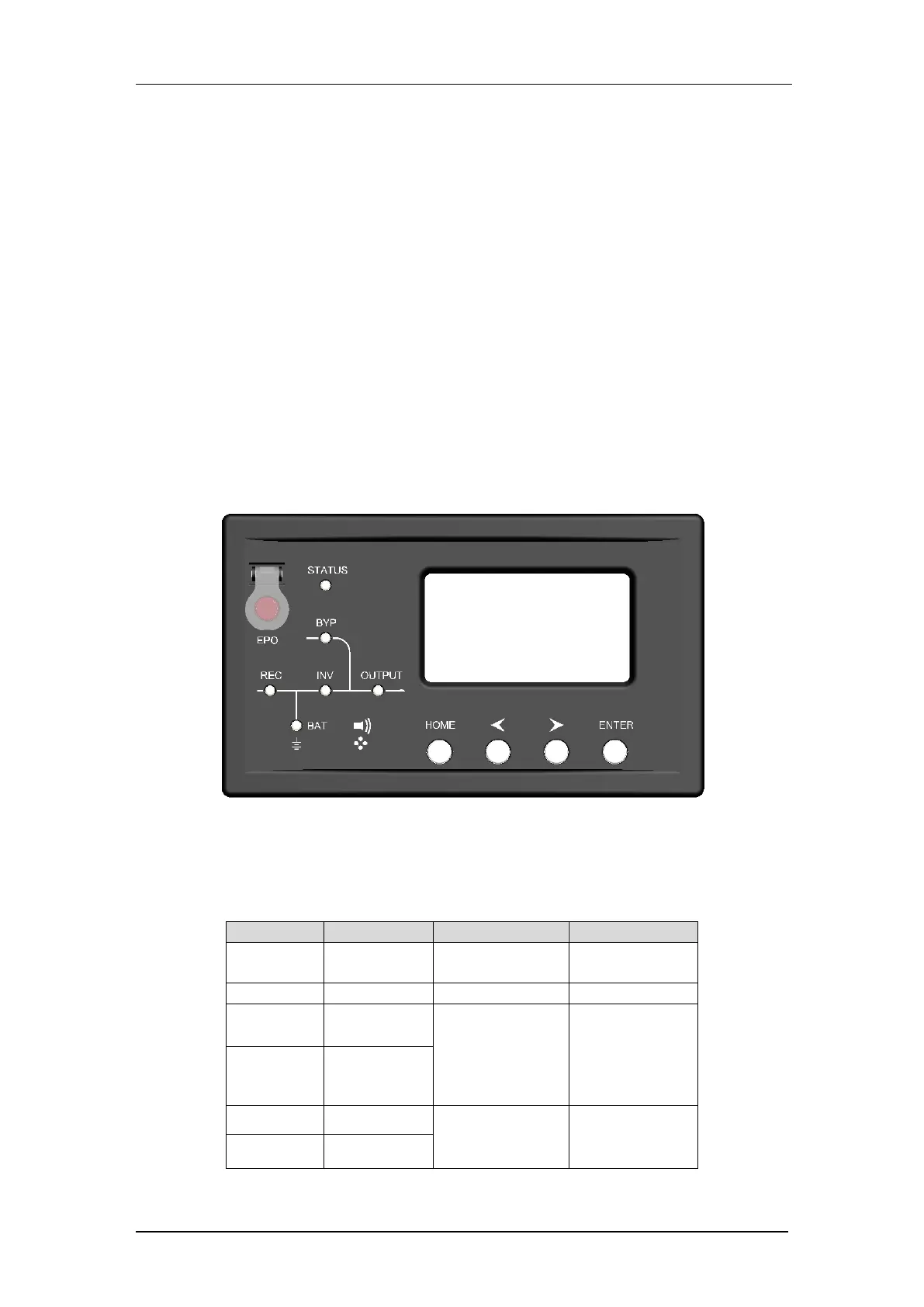

Fig 6-1 UPS operator control and display panel
Table 6-1 Description of UPS operator control and display panel
Part No.
Function
Button
Function
REC
Rectifier
indicator
EPO EPO switch
BAT
Battery indicator
HOME
Back to main menu
BYP
Bypass
indicator
Left arrow
Right arrow
Select main menu
items; switch
between submenu;
increase or reduce
for number input
INV
Inverter
indicator
OUTPUT Load indicator
ENTER Confirm
STATUS Status indicator
