6.3.6 Restart prevention function limits
The restart prevention function based on motion detection (automatic and safe manual type, see "Types of
managed restart" on page20) is not guaranteed in the immediate vicinity of the sensor blind spots. The
guaranteed minimum detection distance depends on the distance between the sensors:
Distance between
sensors (cm)
Guaranteed
minimum distance
(cm)
50 30
100 60
150 90
NOTICE: auxiliary functions are necessary in the immediate vicinity of the sensor to guarantee the system restart
prevention function.
6.3.7 Calculation of the monitored area
The monitored area is calculated automatically by the Inxpect Safety application. Given the dimensions of the
dangerous area and any pre-alarm area, the system calculates:
l the number of necessary sensors
l the sensors installation distance
l the total depth of the monitored area (dangerous area + pre-alarm area + tolerance area)
l the total width of the monitored area (dangerous area + distance of side guards)
l the depth of the tolerance area
To calculate the depth of the dangerous area, "Dangerous area calculation" on page27.

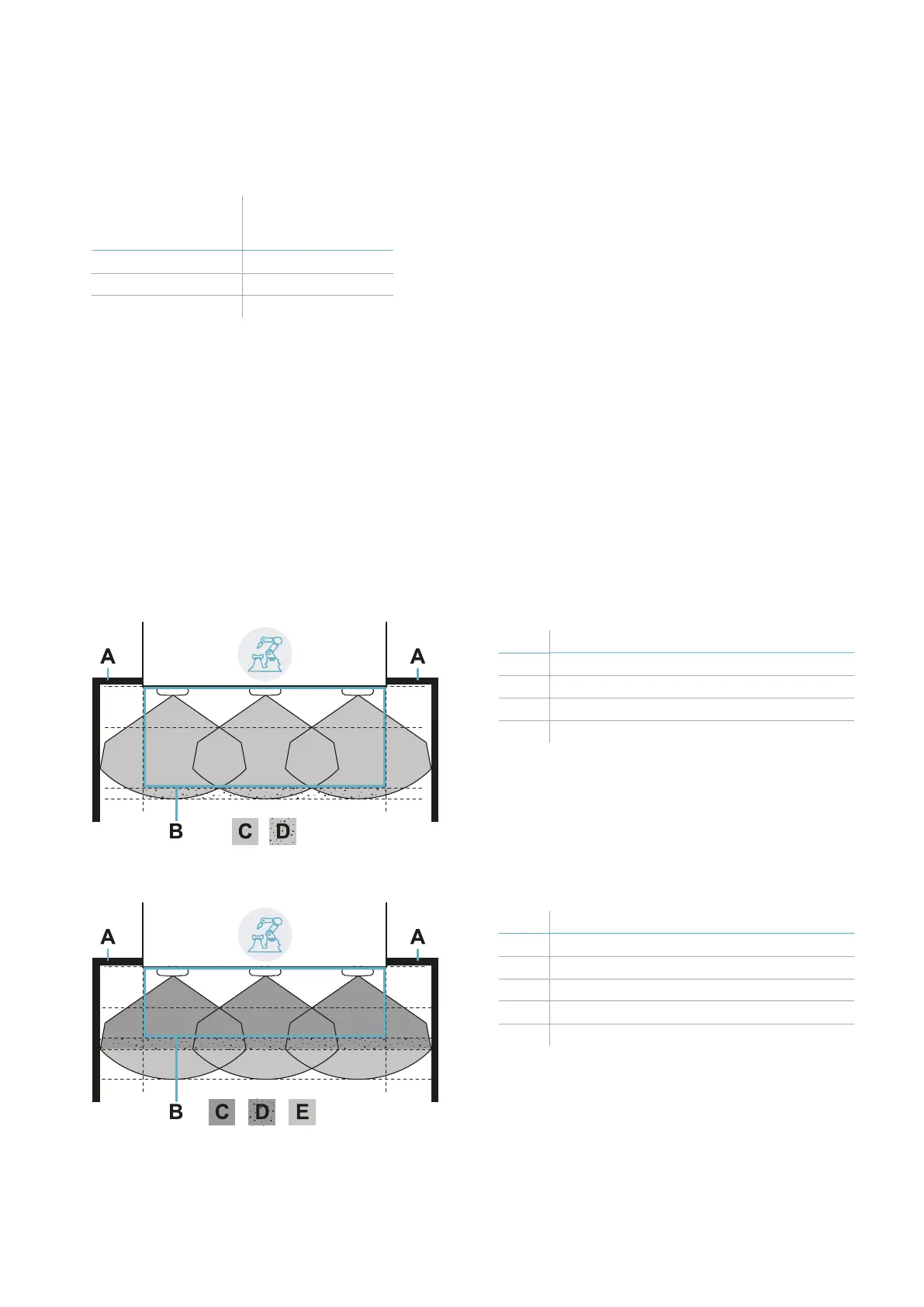

6.3.8 Example of monitored area without pre-alarm area
Part Description
A Guards to prevent side access
B Dangerous area
C Stopping area
D Tolerance area
6.3.9 Example of monitored area with pre-alarm area
Part Description
A Guards to prevent side access
B Dangerous area
C Stopping area
D Tolerance area of the stopping area
E Pre-alarm area
