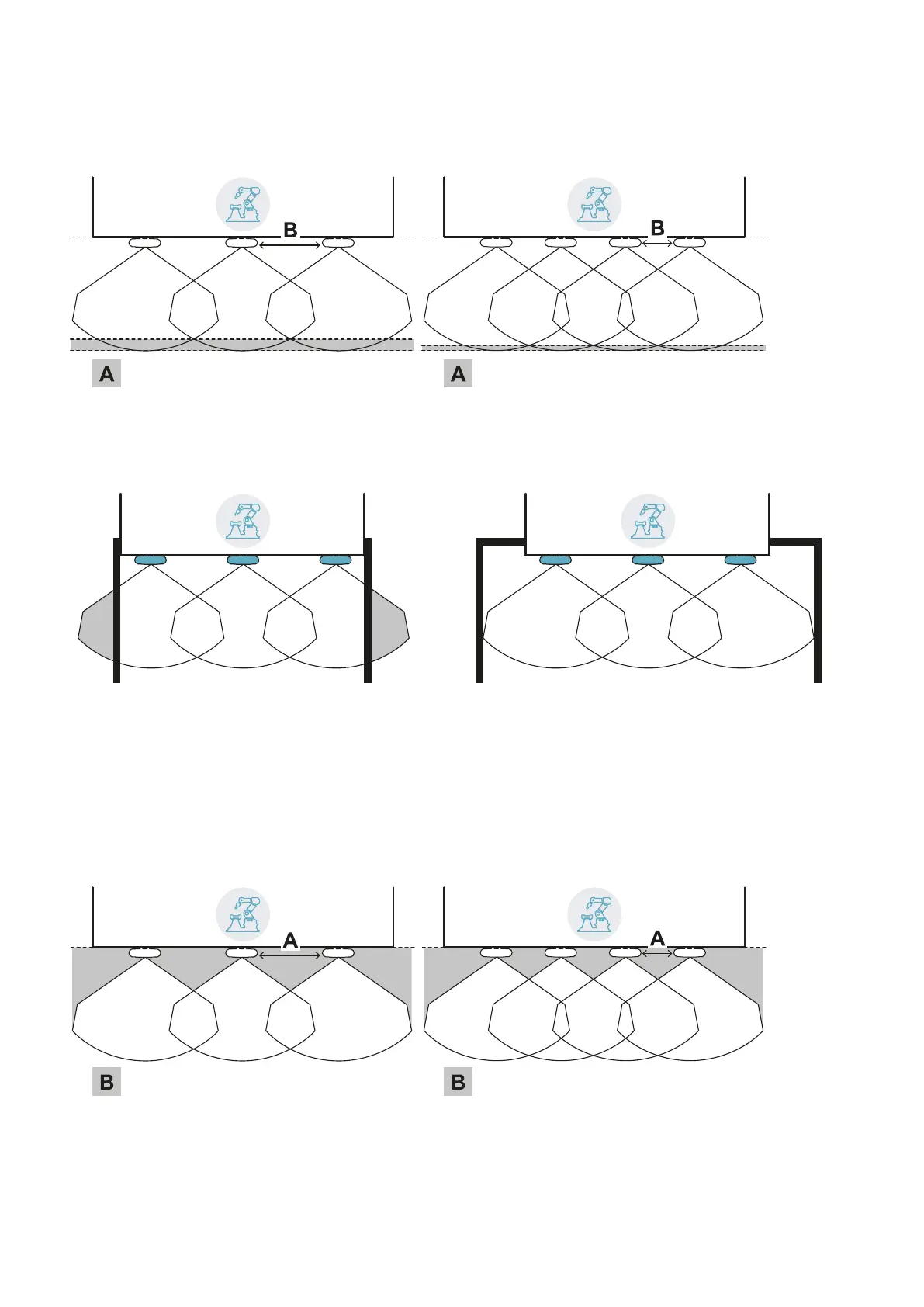

6.3.3 Distance of sensors and tolerance area
The tolerance area [A] increases as the distance between the sensors [B] increases, up to a maximum of 20
cm approximately.
6.3.4 Side guards and false alarms
Given the geometry of the sensor field of vision, guards must be installed to prevent side access to the
machinery. To prevent false alarms, the guards must be positioned on the exterior of the dangerous area.
Guards and possible false alarms
Guards without false alarms
The distance for installation of the guards can be calculated based on the parameters provided by the
Inxpect Safety application during the configuration phase.
6.3.5 Blind spots
Given the geometry of the sensor field of vision, blind spots are generated within the monitored area.
Sensitivity to motion is greatly reduced in blind spots.
The greater the distance between sensors [A] the wider the blind spot areas become [B].
6. Applications
