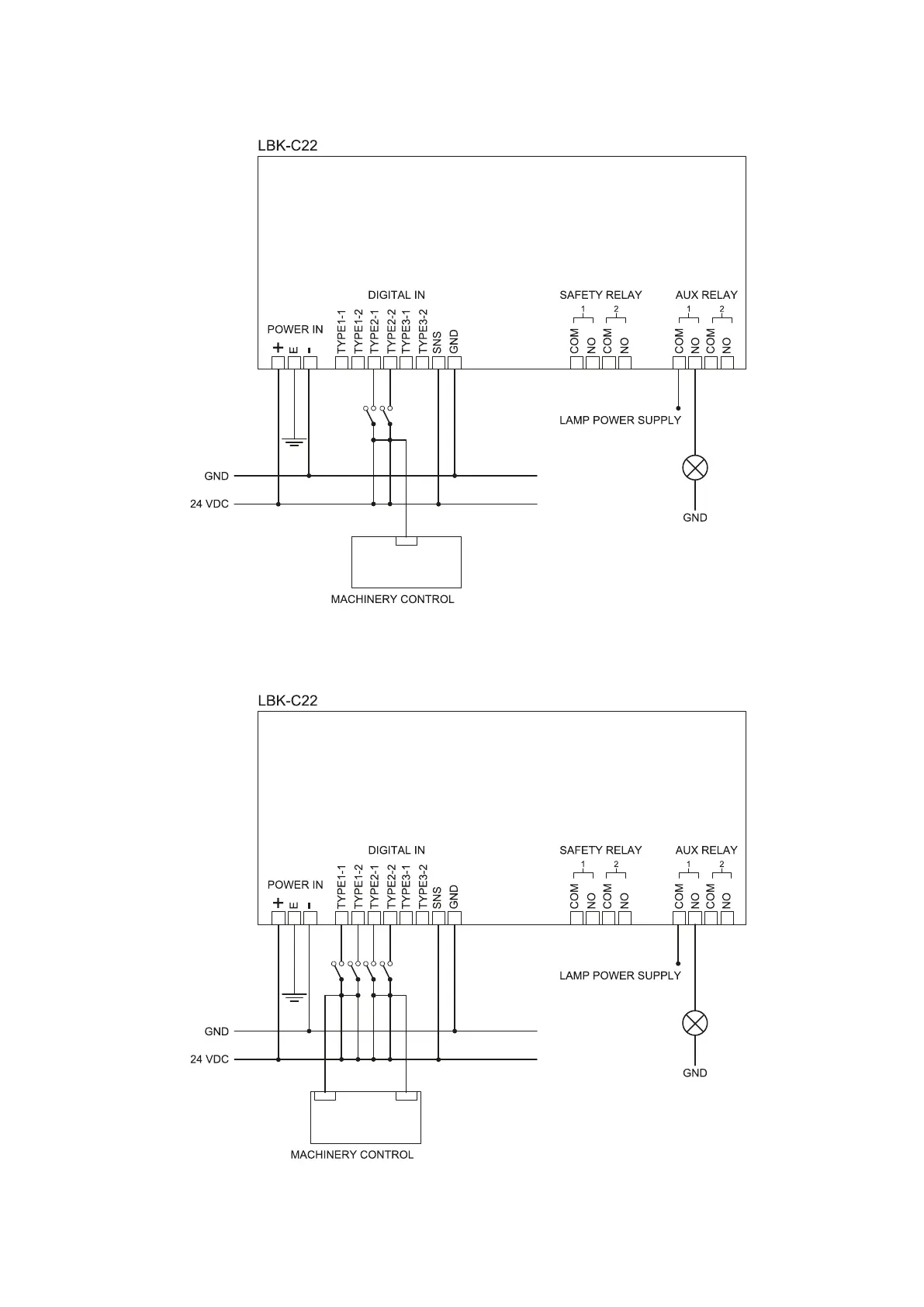

9.3.5 Connection of the muting input and output (one group of sensors)
Note: the cables used for wiring the digital inputs must have a maximum length of 30 m.
9.3.6 Connection of the muting input and output (two groups of sensors)
Note: the cables used for wiring the digital inputs must have a maximum length of 30 m.
9. Technical references
LBK System| Instruction manual v1.3 SEP 2019 |LBK-System_instructions_en v1.3|© 2018-2019 Inxpect SpA
65
