IONPURE IP-VNX-MAX-1 User Manual

IONPURE
®
VNX CEDI Modules
Page 17 IP-MAN-VNX-1019-EN.pdf
3.2.2. VNX Piping Configurations
Because the internal piping of a VNX module can vary depending on model, external
connections can vary as well. Consult the table below for the correct configuration for
your specific VNX module.

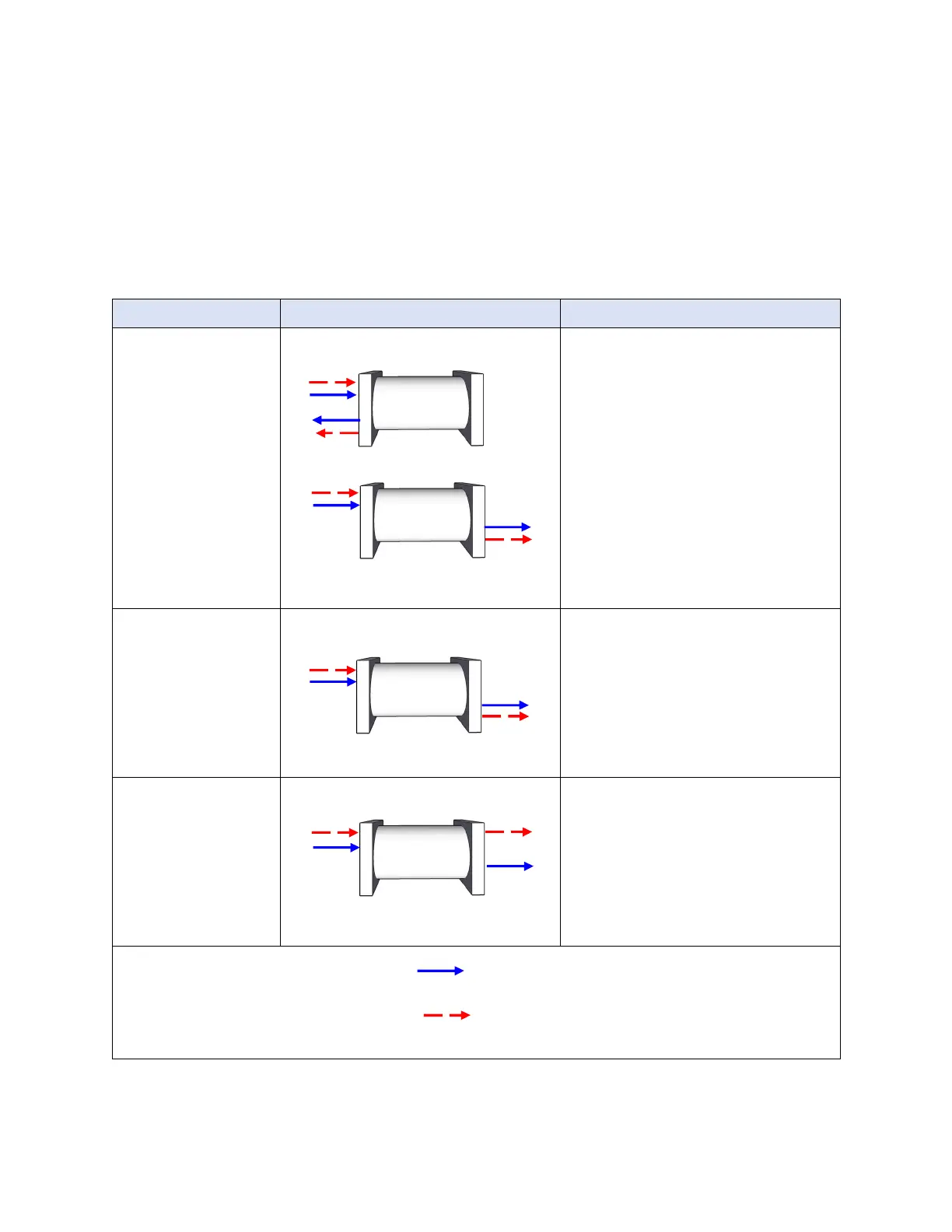

Table 3-1 VNX Module Piping Connections
Model Recommended Configuration Comments
IP-VNX28EP-2
IP-VNX55EP-2
IP-VNX55HH-2
IP-VNX15CDIT-2
IP-VNX30CDIT-2
IP-VNX-MAX
IP-VNX-MINI
Product:
Inlet & outlet on same side OR
Inlet & outlet on opposite sides
Reject:
Inlet & outlet on same side OR
Inlet & outlet on opposite sides
IP-VNX55E-2
Product:
Inlet & outlet on same side OR
Inlet & outlet on opposite sides
Reject:
Inlet & outlet on opposite sides
(Top inlet, bottom outlet)
IP-VNX55EX-2
Product:
Inlet & outlet on same side OR
Inlet & outlet on opposite sides
Reject:
Inlet & outlet on opposite sides
(Top inlet, top outlet)
Product connection (blue, solid)
Reject connection (red, dashed)
