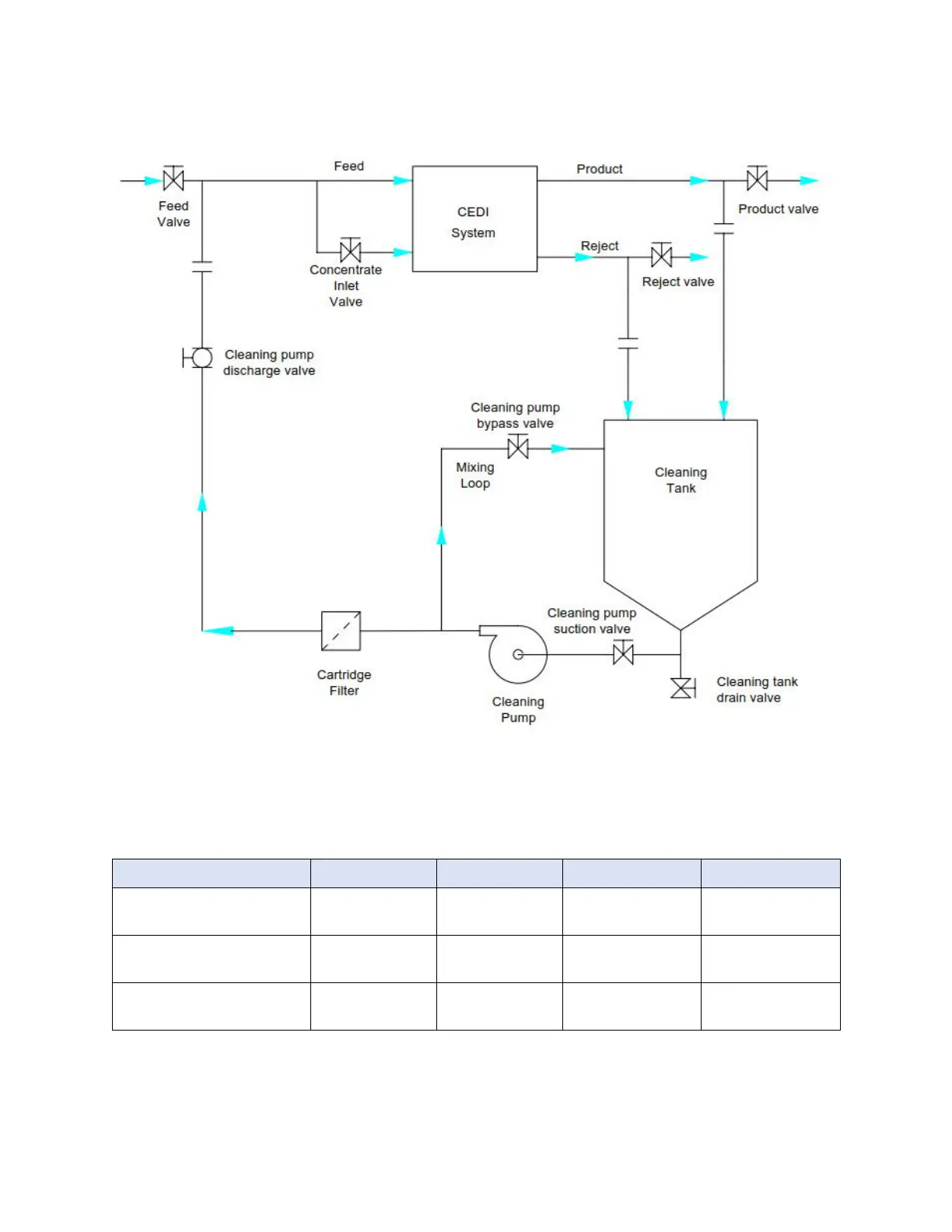

Figure 6-1: Typical CEDI CIP System
Table 6-1a VNX CEDI Cleaning Flow Rates (per module)
55EP-2 55EX-2 55E-2 55HH-2
Product gpm
m
3
/h
27.5-82.5
6.3-18.8
27.5-82.5
6.3-18.8
27.5-82.5
6.3-18.8
27.5-82.5
6.3-18.8
Reject gpm
m
3
/h
10-30
2.3-6.8
5-15
1.2-3.4
3.3-10
0.8-2.3
10-30
2.3-6.8
Pump gpm
Capacity m
3
/h
75
17
65
15
62
14
75
17
The preferred cleaning flow rates are nominal product flow (midpoint of the ranges above)
and reject flow of 0.35 x nominal product flow (for Gen 2 VNX spacer). EX and E have
lower reject flow due to 2-pass and 3-pass concentrate, respectively.
