iOptron CEM25 User Manual

9
2.3. CEM25 Ports
Ports on the mount
DEC Unit R.A. Unit
Main Board Main Board
DEC Unit R.A. Unit
Main Board Main Board

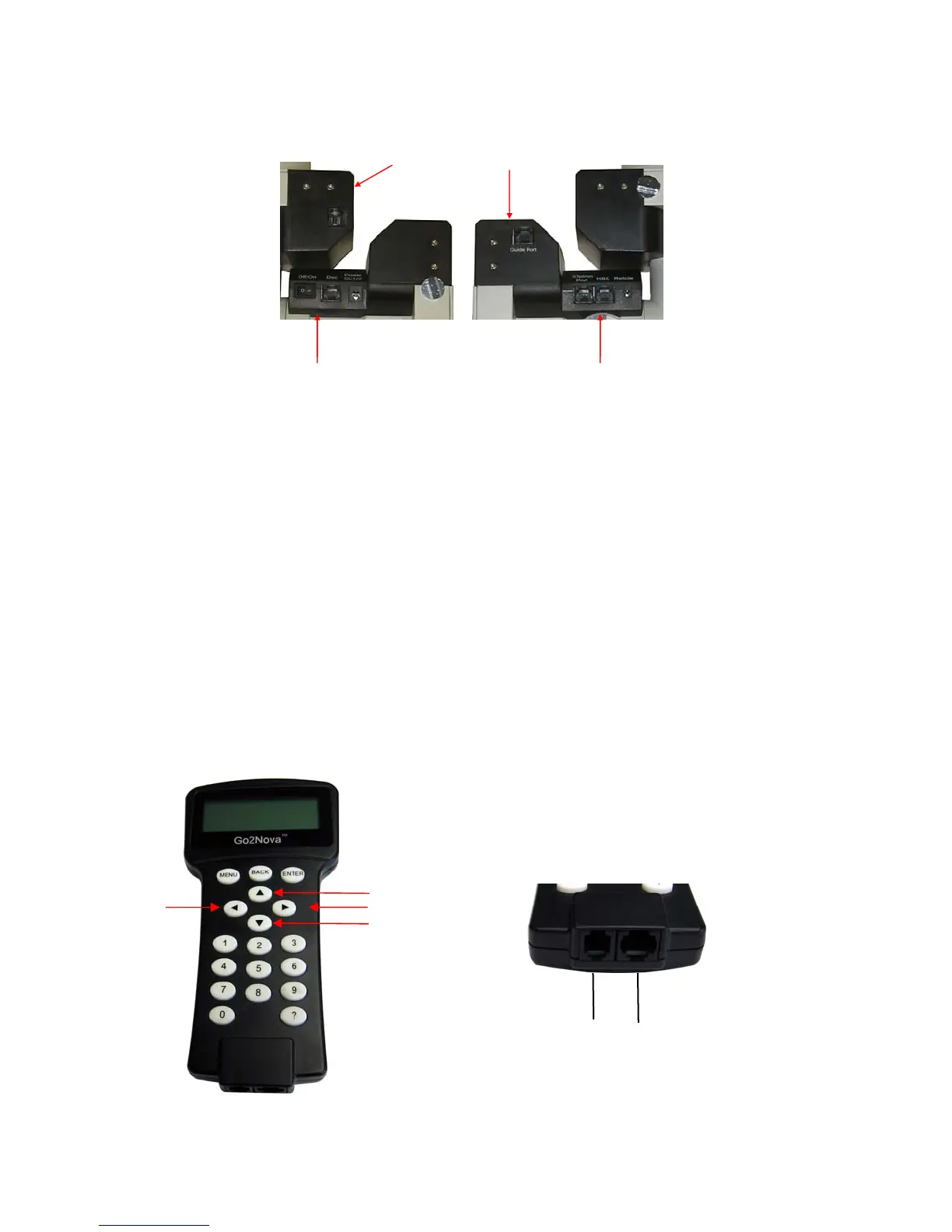

Figure 2. Ports on a CEM25 mount
On main control board:
 OFF/ON Switch: Power switch
 Dec: For connecting to DEC drive unit
 Power DC 12V: DC power plug (2.1mmX5.5mm, center positive)
 iOptron Port: For connecting to other iOptron accessories, such as a laser pointer or a planetary
dome control. DO NOT plug guiding camera cable into it or the camera will be damaged.
 HBX (Hand Box): For connecting to an 8408 Hand Controller
 Reticle: Power supply for the polar scope dark field illumination LED, or illuminated eyepiece
On RA unit:
Guide Port: Autoguiding port for guiding cameras
On DEC unit:
The only port on the DEC unit is used to connect to the Dec port on main control board
2.4. Go2Nova
®
8408 Hand Controller
Figure 3. Go2Nova
®
8408 hand controller
HBX
Port
Serial
Port
RA+
RA-
DEC-
DEC+
