Page 1-1
CORNERMATIC PLUS

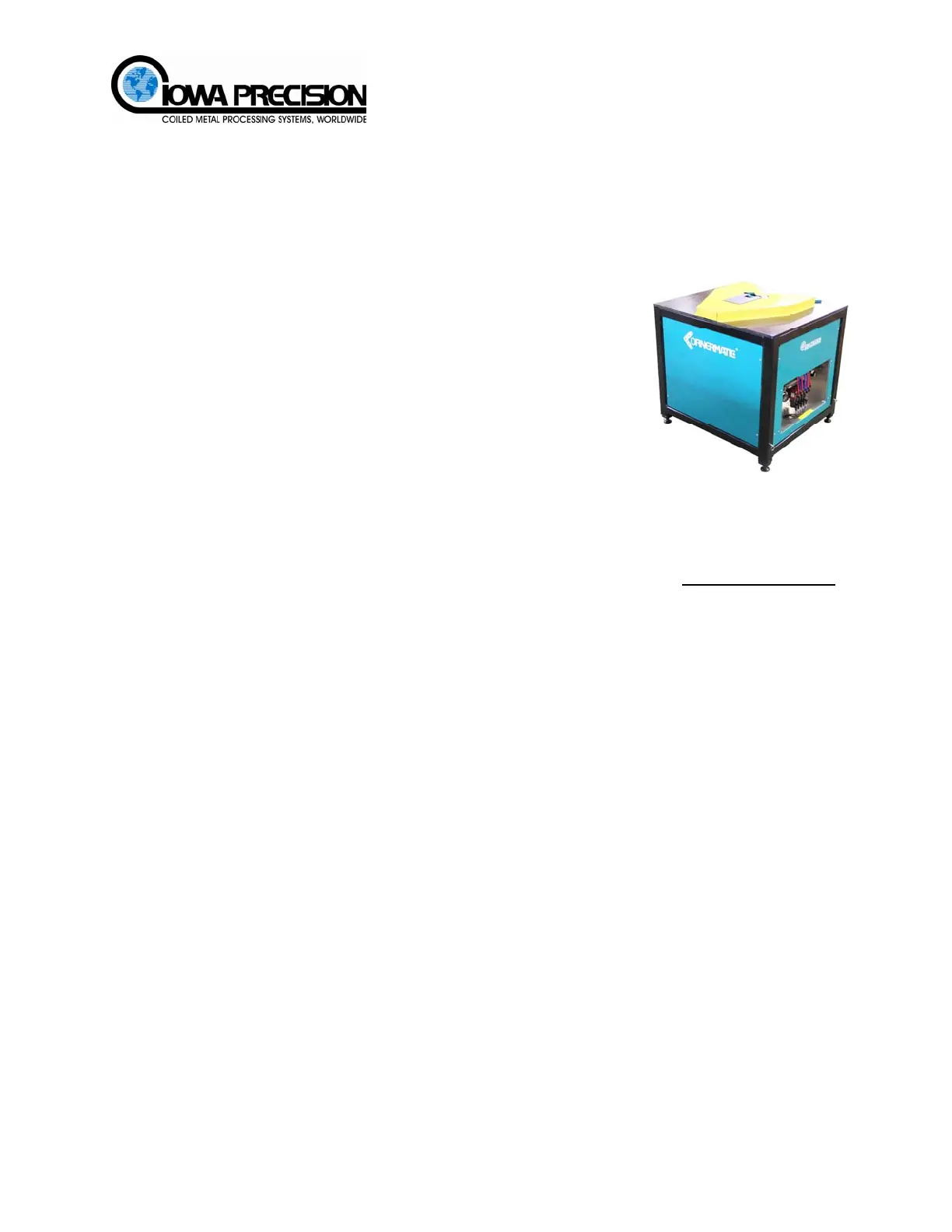

Figure 1-1.Cornermatic
Plus
INSTALLATION
1. INSTALLATION
A. SELECTING A LOCATION
Select a location that will save the most work and time in
moving duct fittings about in your shop. A table that
matches the height of the bottom head base plate of the
Cornermatic Plus is a must in helping to position the duct
fittings sections into the Cornermatic Plus, especially if only
one person may be handling the duct fittings.
B. PNEUMATIC REQUIREMENTS
A clean, dry air supply of 11 CFM at 100 PSI (not to exceed
120 PSI) must be made available to the equipment. This
can be a rigid supply line such as pipe, but the terminating
line to the equipment should be a non-rigid air line to isolate
the compressor and machine from each other’s vibrations.
C. ELECTRICAL REQUIREMENTS
Electrical power requires only the availability of a standard 115 VAC (or optional 240 VAC
)
three prong type grounded outlet to plug in the connector on the Cornermatic Plus. The
machine should also be located away from grinding machines, sanding machines, spray
painting areas, and other sources of contamination if at all practical. Answers to questions
regarding site preparation and other technical assistance is available by calling our Service
Department.
D. RECEIVING AND UNPACKING THE EQUIPMENT
When the equipment arrives, inspect it carefully before accepting the shipment. It is important
to note any damage on the Bill of Lading or other shipping documents so that a claim can be
filed with the carrier. Pay special attention to the control wiring, air regulator, gauges, etc.
Check for physical damage to the switches and the components inside the Cornermatic Plus.
If anything looks damaged, notify both the carrier (to file a claim) and the Service Department
at the factory (to order replacement parts). It is important to notify the factory promptly so the
new parts arrive before the machine is installed, as it may not be possible to start and run the
machine without them.
• Removing any covers, steel strapping, or packing around the machine.
• Set the Cornermatic Plus upright in a vertical position, preferably in its final product
location.
• Adjust the leveling foot pads to firmly rest on the foundation keeping the bottom head
base plate horizontally as level as possible.
• Make any final adjustments necessary with the leveling foot pads to make the bottom
head base plate level horizontally.
Before operating the Cornermatic Plus, read the safety section of this manual. Study and
follow the safety precautions in this section, which are intended to prevent injury to you and
