Page 2-3
CORNERMATIC PLUS
B. TABLE TOP COMPONETS
The Cornermatic Plus working platform is low profile, which helps with insertion of corners into
duct fittings of various configurations and sizes. The tooling of the Cornermatic Plus was
designed and manufactured for years of dependable production. The platform components
also require little or no adjustment.

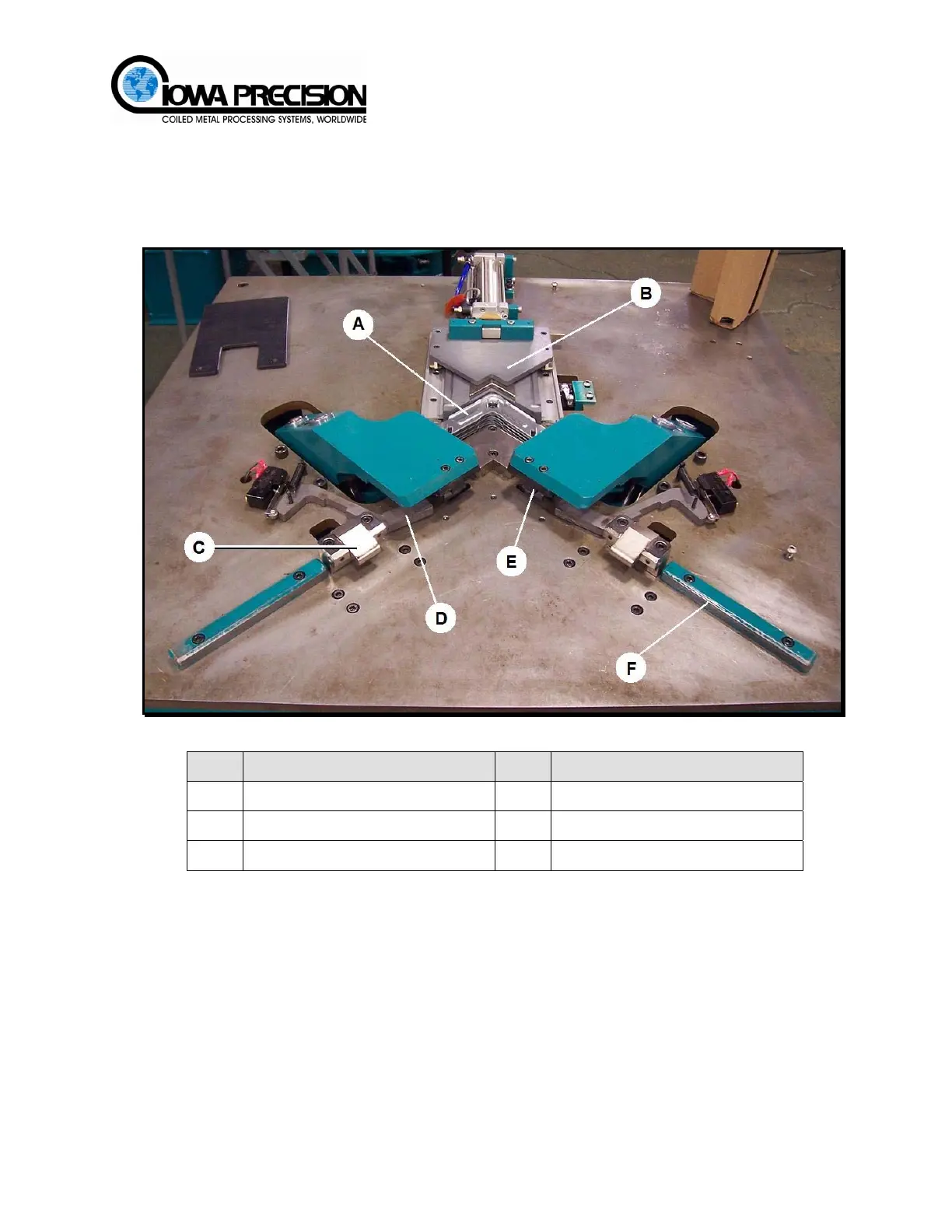

Figure 2-4 Table Top Components
Item Description Item Description
A
Corners
D
Start Levers
B
Feeder
E
Crimpers
C
Clamps
F
Guide Bars
C. PNEUMATIC CONTROL PANEL
Located on the side of the Cornermatic Plus is the pneumatic control panel. This panel
includes two air regulators and the pneumatic manifold with control valves.
Each valve has a manual override (J) which can be used for setup and maintenance. To utilize
the manual override, insert a small screwdriver into the slot and turn clockwise to activate or
counter clockwise to deactivate the valve.
