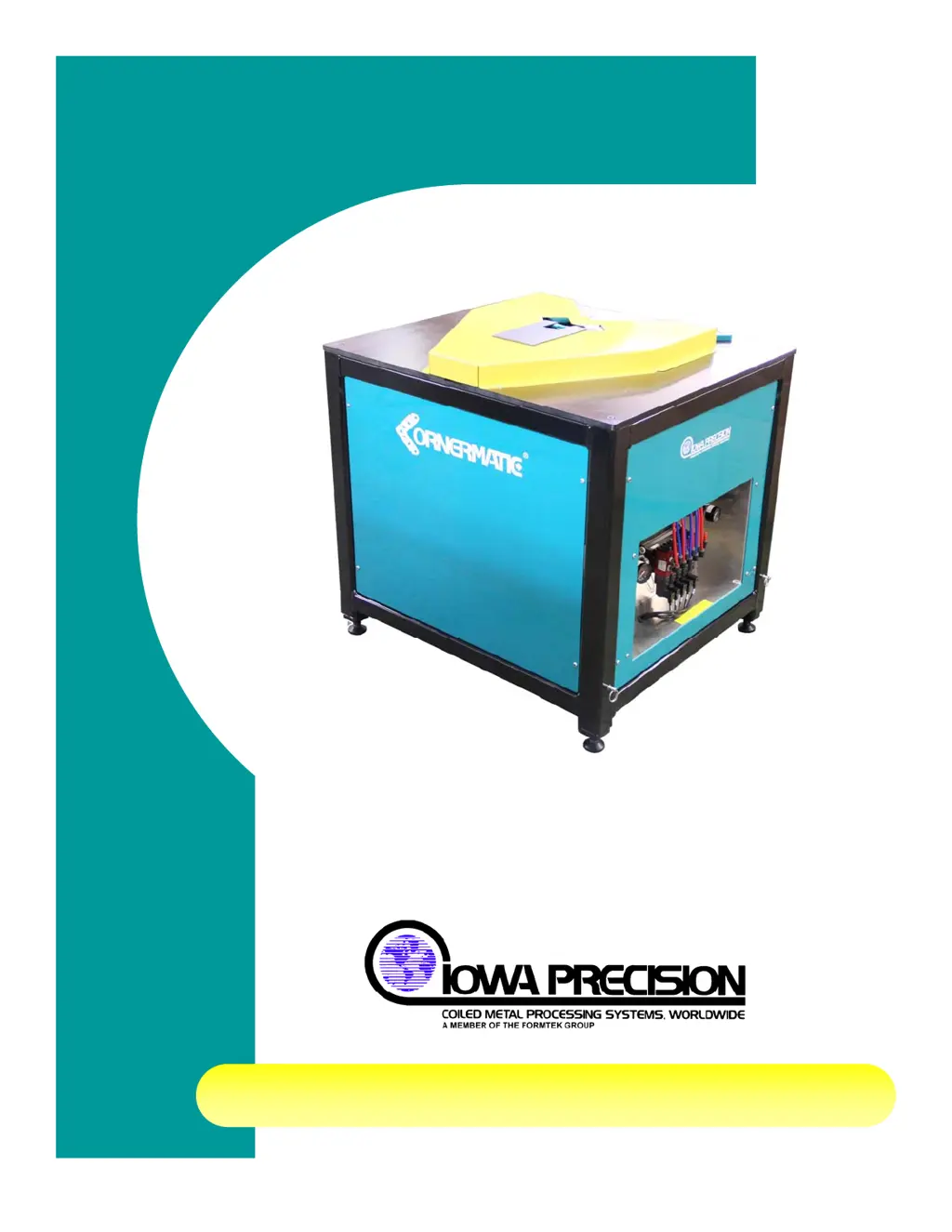

IPI003V04
CORNERMATIC PLUS
H. WEISS MACHINERY & SUPPLY
H. WEISS MACHINERY & SUPPLY
PHONE: (718) 605-0395 - www.hweiss.com

Table of Contents

Questions and Answers

  • W
    Wendy BoydAug 4, 2025
    What to do if Iowa Precision Cornermatic Plus Industrial Equipment won't start but start switches are working?
    • K
      Keith WeeksAug 4, 2025
      If your Iowa Precision Industrial Equipment isn't starting or completing its cycle even though the start switches are working, the issue might be with the air valve. You can manually activate each air valve by turning the red screw on each valve clockwise about a quarter turn. Turning it counter-clockwise will turn the valve off. With the power off, cycle each valve at least 3 or 4 times to check for mechanical issues, broken parts, pinched or blocked air lines, low air pressure, or valve contamination.
  • H
    hreyesAug 14, 2025
    How to fix Iowa Precision Cornermatic Plus that won't start when duct fitting is positioned correctly?
    • A
      Angie BrownAug 14, 2025
      If your Iowa Precision Industrial Equipment isn't starting its operating cycle even when the duct fitting is correctly positioned, the start switches may not be activating. Here's what you can do: 1. Completely remove electrical power from the machine. 2. Push each start lever and listen for a click. Adjust the switch lever if you hear two clicks, ensuring it activates with minimal lever rotation. 3. If there's no click, check the screw locking the start lever and switch cam. Retighten if loose; if stripped, consider drilling and tapping for a larger screw or replacing the part.
  • E
    Ellen CampbellAug 25, 2025
    Why won't the head cycle on my Iowa Precision Industrial Equipment?
    • J
      John BirdAug 25, 2025
      If the head of your Iowa Precision Industrial Equipment isn't cycling, make sure the head power switch is on, the switch is lit, and PLC input 0.3 is ON. This ensures the head is properly enabled and powered.

Summary

Safety Summary

Developing a Safety Program

Steps and suggestions for creating a comprehensive company safety program.

Customers Responsibilities

Customer Safety Duties

User's responsibilities in safeguarding equipment and personnel against hazards.

Warning Labels

Label Definitions

Defines DANGER, WARNING, CAUTION, and NOTICE labels and their meanings.

Machine Hazards and Safeguards

Machinery Operation and Safeguards

Safety around moving parts and the importance of functional safeguards.

Operational and Maintenance Safety

Operation Safety Precautions

Safety rules during machine operation, including traffic around equipment.

Maintenance Safety Precautions

Safety rules before and during machine maintenance activities.

Lockout Procedures

General Lockout Principles

Basic requirements for isolating energy sources during maintenance.

Unit Specific Lockout Procedures

Procedures for locking out the Cornermatic Plus unit.

Power Source Lockout Methods

Methods for isolating hydraulic, electrical, and pneumatic power.

Installation Guide

Installation Safety

Pre-Operation Safety

Safety precautions to follow before starting the machine.

Operation Safety

Safety precautions to follow during machine operation.

System Operation Procedures

Pre-Operation Safety Checks

Essential safety steps before starting the machine.

Safe Operation Practices

Guidelines for safe machine operation and material handling.

Operation Preparation and Shutdown

Operation Preparation and Placement

System Shut-Down

Safe procedures for powering down the machine.

Maintenance and Torque Values

General Assembly Torque

Maintenance Safety and Servicing

Safe Maintenance Practices

Rules for performing maintenance safely, including power removal.

Servicing and Lubrication

Preventive Maintenance and Troubleshooting

Preventive Maintenance Checks

Troubleshooting Guide

Information for diagnosing and resolving operational issues.

Troubleshooting Chart

Common Issues and Solutions

Table of common symptoms, probable causes, and corrective actions.

Iowa Precision Cornermatic Plus Specifications

General IconGeneral
ModelCornermatic Plus
CategoryIndustrial Equipment
Power SourcePneumatic
ManufacturerIowa Precision
Material CompatibilityAluminum, Stainless Steel
