Page 2-6
CORNERMATIC PLUS

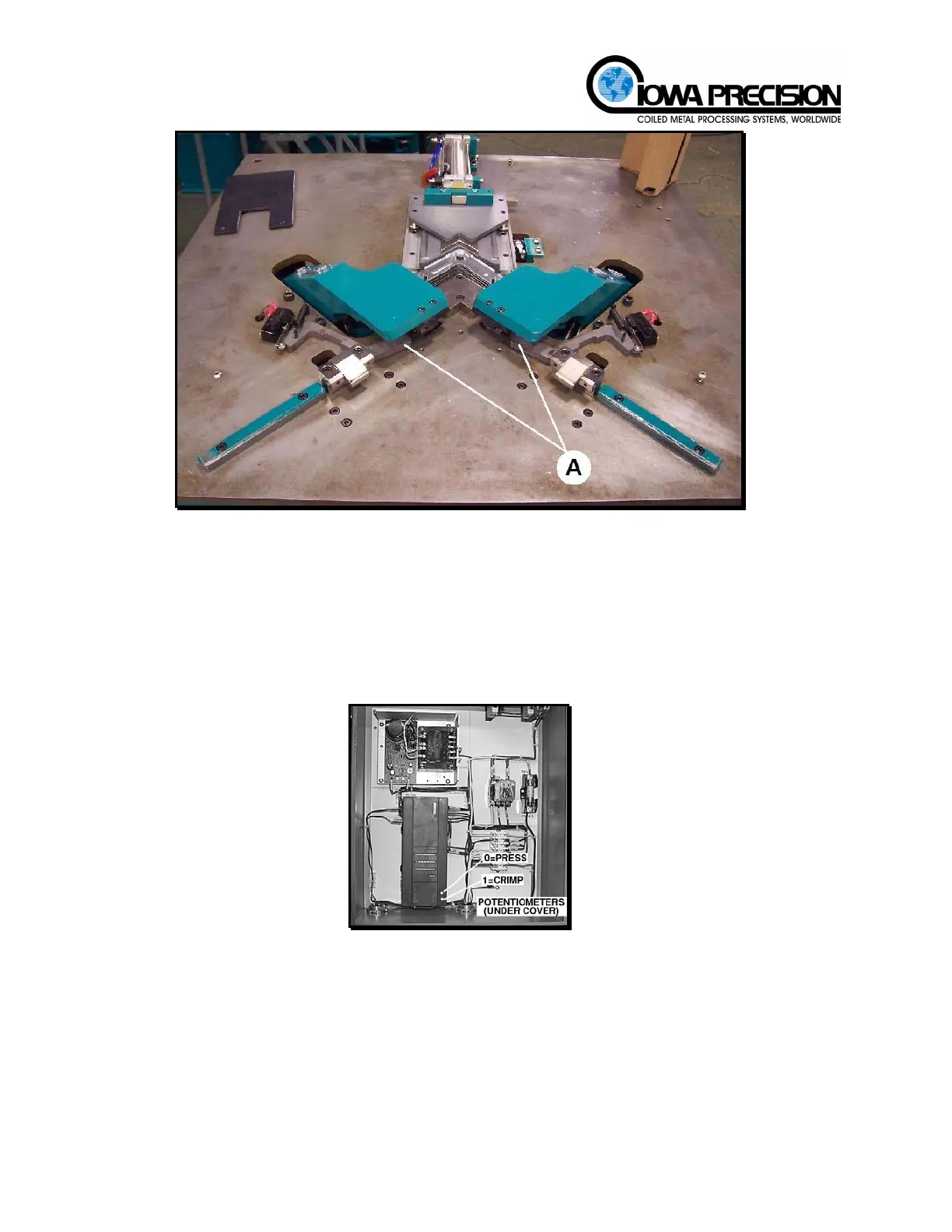

Figure 2-7 Bottom Head Cycle Start Levers
The step activation times for the first four steps of the sequence are not available for
operation adjustment. However, the time for the last two steps, PRESS and CRIMP, can
be adjusted by turning one of two potentiometers located under the flip up cover (A) on
the PLC.
The potentiometer labeled 0 controls the press time and the potentiometer labeled 1
controls the crimp time. Turning the potentiometer clockwise increases the time and
turning the potentiometer counterclockwise decrease the time.
Figure 2-8 PLC Press & Crimp Timer Adjust Potentiometers (Under Cover)
0 = PRESS, 1 = CRIMP
