Procedure
I. Configure the Switch
Configure the 802.1Q VLAN function on the switch. See the following table.
Switch Port
Connected to
VLAN ID
Port Type
PVID
1
AP1
1
Access
1
2
AP2
2
Access
2
3
AP3
3
Access
3
24
AC
1,2,3
Trunk
1
II. Configure the AC
According to the networking requirement, all the APs have no PVID or VLAN ID, and will obtain IP
addresses from the AC.
Procedure:
Step 1: Configure VLAN Interface

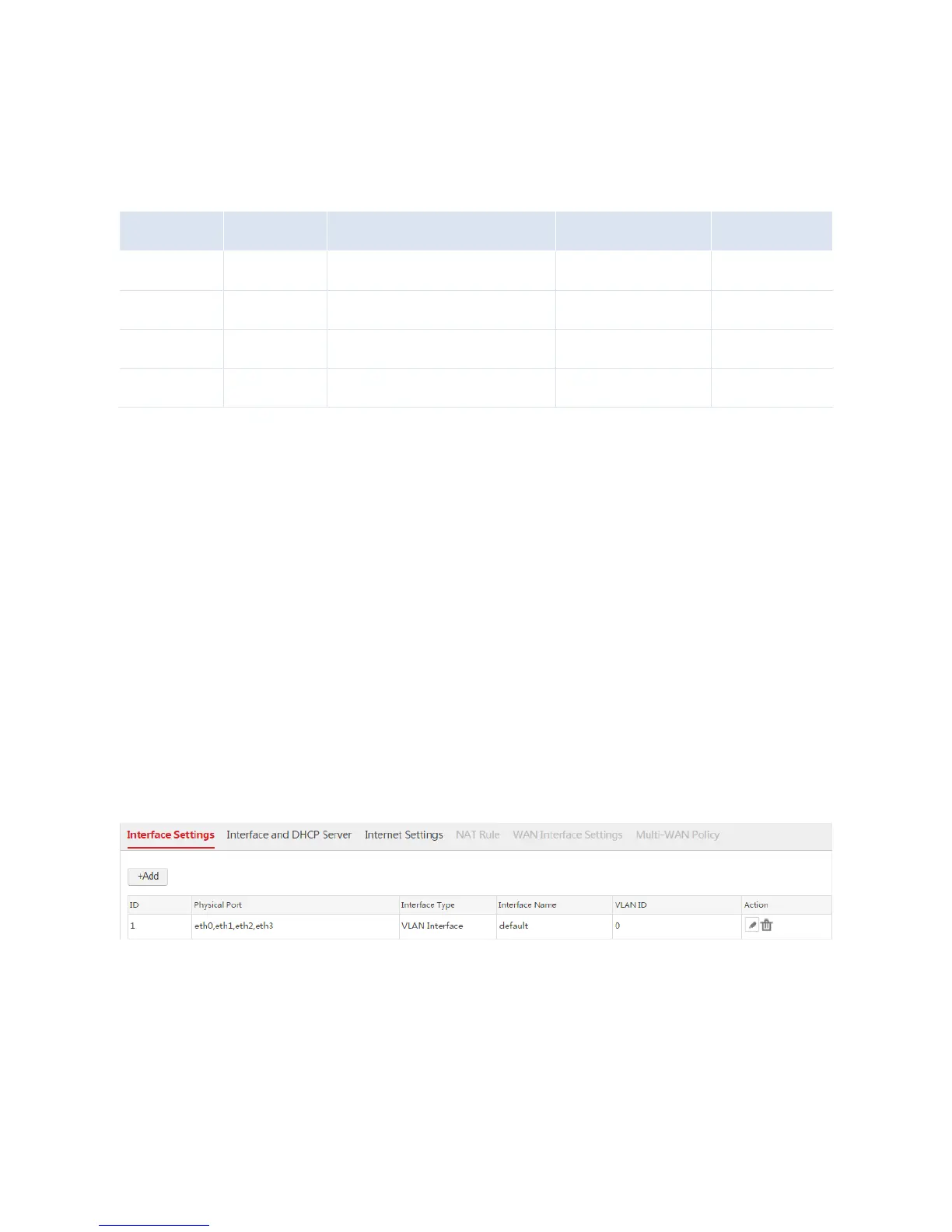

Choose Network Setting > Network Setting > Interface Settings, and configure three VLAN interfaces
used to communicate with the three APs.
1. Configure the VLAN interface used to communicate with AP1.
According to the networking requirement, the VLAN ID of the VLAN interface is 0, so you can use the
default VLAN interface.
2. Configure the VLAN interface used to communicate with AP2.
1) Click Add.
2) Configure the parameters in the window.
 Interface Type: Select "VLAN Interface".
 Physical Port: Select the physical port connected to the switch, which is "eth0".
 Interface Name: Set a name, such as "vlan2".
