89
2. Click Add.

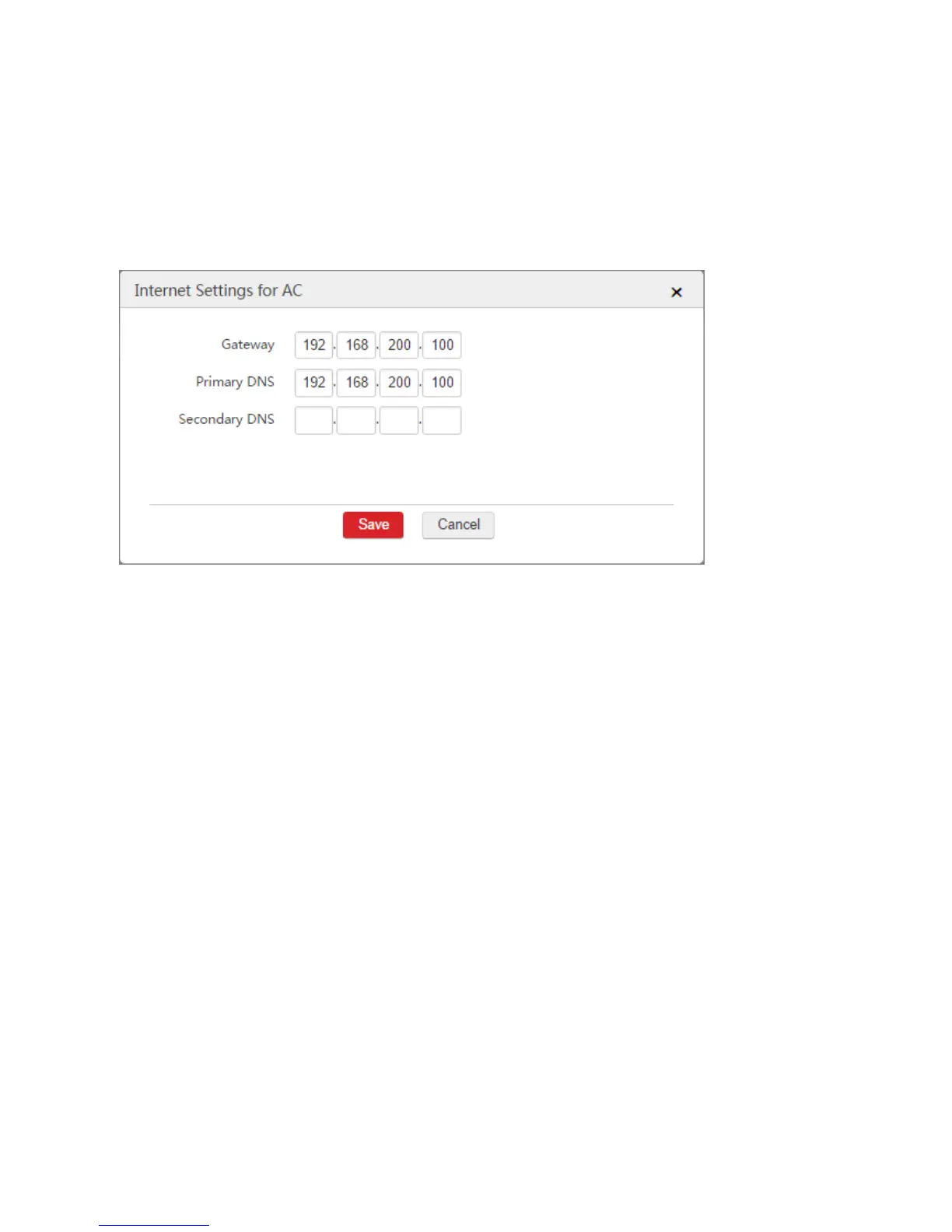

3. Configure the parameters in the window.
Gateway: Set the IP address of the default gateway of the AC, which is ""192.168.200.100" in this
example.
Primary DNS: Enter the DNS server address or DNS proxy server address, which is
"192.168.200.100" in this example.
4. Click Save.
Step 4: Configure IP Routing
1. Choose Network Setting > IP Routing.
2. Click Add.
3. Configure the parameters in the window.
Remark: Set a description for the route, such as "Internal".
Destination Network: Enter the network segment of the internal server, which is "172.16.100.0" in
this example.
Subnet Mask: Enter the subnet mask of the internal server, which is "255.255.255.0" in this example.
Next Hop: Enter the IP address of the next network node to which the packet is to be sent on the way
to the internal server. In this example, it is the LAN IP address of Router1: 192.168.100.100.
Interface: In this example, set the interface to "vlan100".
4. Click Save.
