13. Internal jumpers

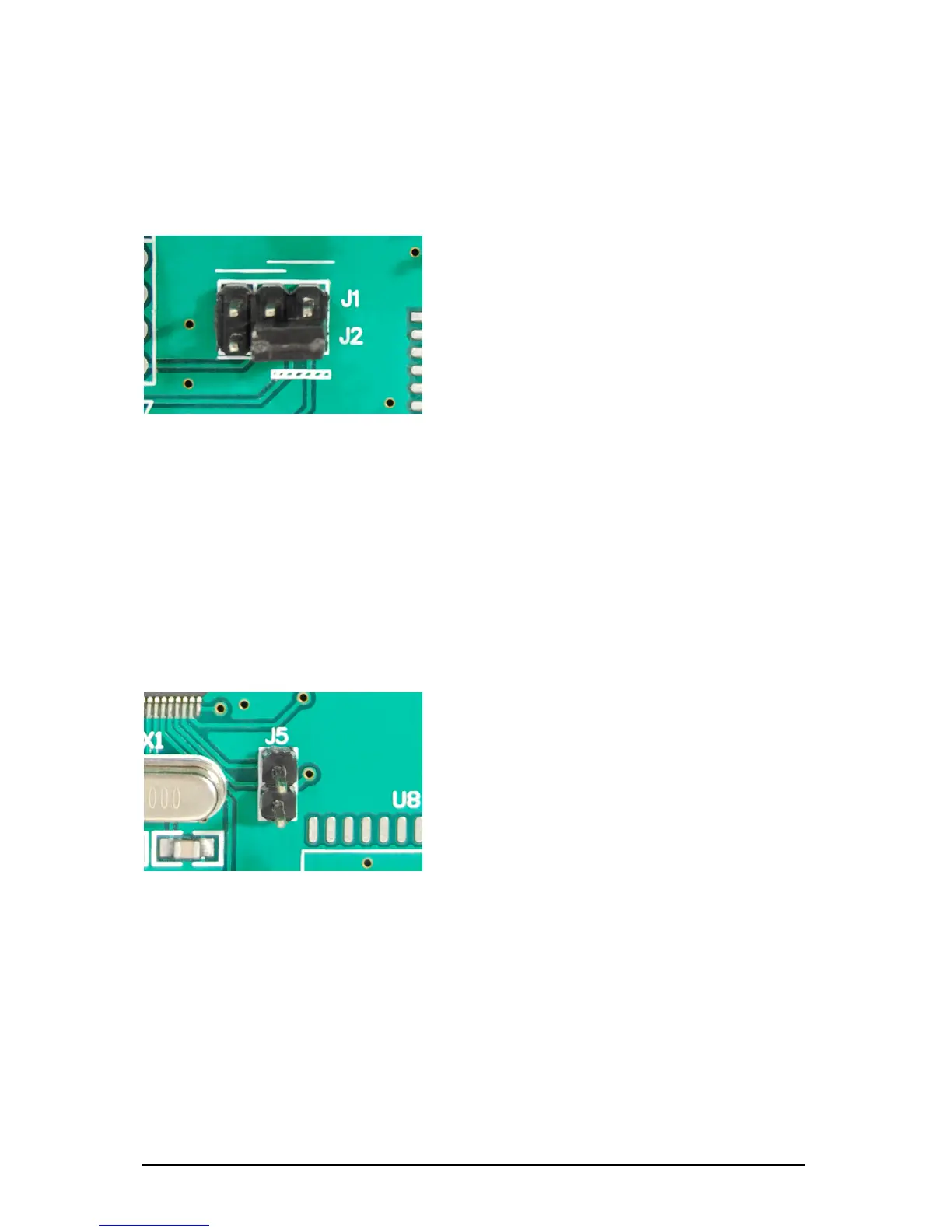

13.1 Jumper 1 and 2 – Select disk drive
Jumper J1 and J2 (In default J2, 2-3 is connected)
The following options are available:
J1: 1-2 connected: Disk drive mode 1
J1: 2-3 connected: Disk drive mode 2
J2: 1-2 connected: Disk drive mode 3
J2: 2-3 connected: Disk drive mode 4
The default mode is J2 connecting 2-3.
13.2 Jumper 5 Ready signal
Jumper J5
J5 open: active due to low level
J5 connected: active due to high level
Jumper J5 is open by default (Ready signal due to low level).
Please observe: when the jumper is connected, the data throughput
may possibly exceed the maximum throughput of your floppy
controller (especially with older systems). The deviation of the USB
Floppy Disk Emulator can amount up to 10%.
Subject to change without prior notice Date: 09-03-10
ipcas GmbH USB Floppy Disk Emulator – USB Floppy v0.2 Page 13 of 17
