iPower GXS11300RT - Control Panel Features Explained

1. Push-Button START/STOP: Push once to auto-
matically start the engine. Push again to stop the
engine.
2. CO (Carbon Monoxide) WATCH-GUARD Indica-
tor Light (Red for Shut off and Yellow for
Service): The CO (Carbon Monoxide)
WATCH-GUARD monitors for the accumulation of
poisonous CO gas around the generator produced
by engine exhaust when the generator is running. If
the CO WATCH-GUARD detects increasing levels of
CO gas, it automatically shuts off the engine. See
CO WATCH-GUARD section for more information.
3. Low Oil Indicator: The Light will be illuminated
when the engine oil level is low. Add oil.
4. 5V DC USB Outlets: Supply 3.6A USB-A type
and 3.0A USB-C type for different applications.
5. Data Center: Push the SELECT button to display
the voltage (V), frequency (Hz) and total run
time(Hour).
6. 120/240V AC, 50A, Single Phase, 60 Hz Outlet
(NEMA 14-50R): This outlet can supply either 120
Volt or 240 Volt output up to 50 amps.
7. 120/240V AC, 30A Twist Lock, Single
Phase,60Hz Outlet (NEMA L14-30R): Supply either
120 Volt or 240 Volt output up to 30 amps.
8. Circuit Breaker(AC): Protects the generator against
electrical overloads.
9. 120V AC, 30A Twist Lock outlet, single phase,
60Hz Outlet (NEMA L5-30R): This receptacle can
provide120 volt output up to 30 amps.
10. 120V AC, 20A Duplex, GFCI, Single Phase, 60Hz
Outlets (5-20R): Each outlet is capable of carrying a
maximum of 20 amps on a single outlet or a combina-
tion of both outlets.
11. Grounding Terminal: To ground the generator.
12. Remote Set Button: To pair the new remote control
fob.
13. 12V DC, Outlet (Automotive): Provides 12 volt DC
power up to 8.3 amps.
14. Circuit Breaker(DC): Protects the generator
against electrical overloads.
15. Battery Switch: Restore the battery power to the
control module. you must turn the switch to ON
position before start the generator.
16. LPG/NG Selector Switch: Select either LPG or NG.
17. Main Fuel Selector Switch: Use to select and turn
on gasoline (GAS) or LPG/NG fuel source.
18. LPG/NG inlet: Used to connect LPG/NG hose to
generator.
8811812 8131415
12V
1 2 3 4 5 6 7 8 9 8 10

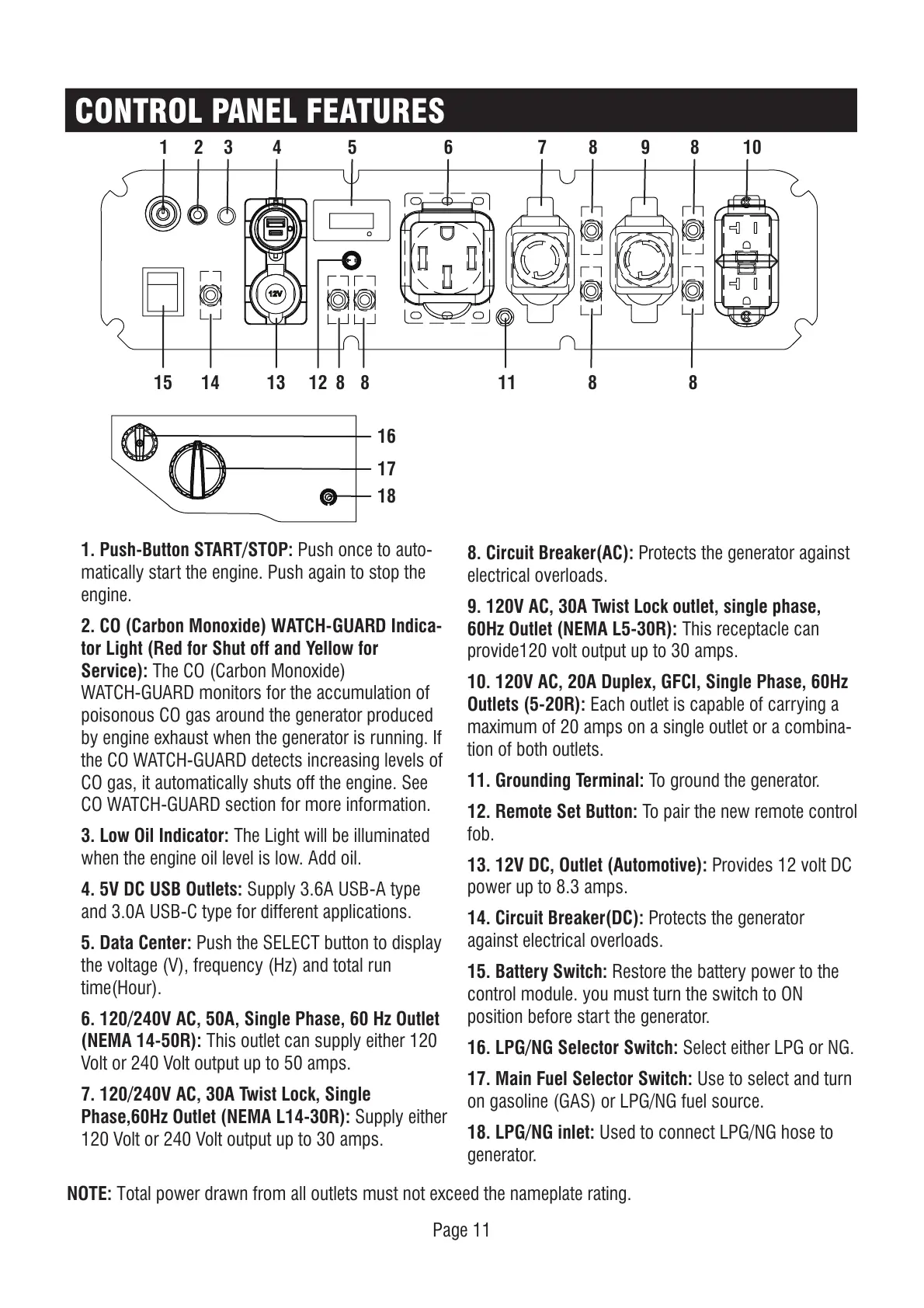

CONTROL PANEL FEATURES
Page 11
NOTE: Total power drawn from all outlets must not exceed the nameplate rating.
