Page 55

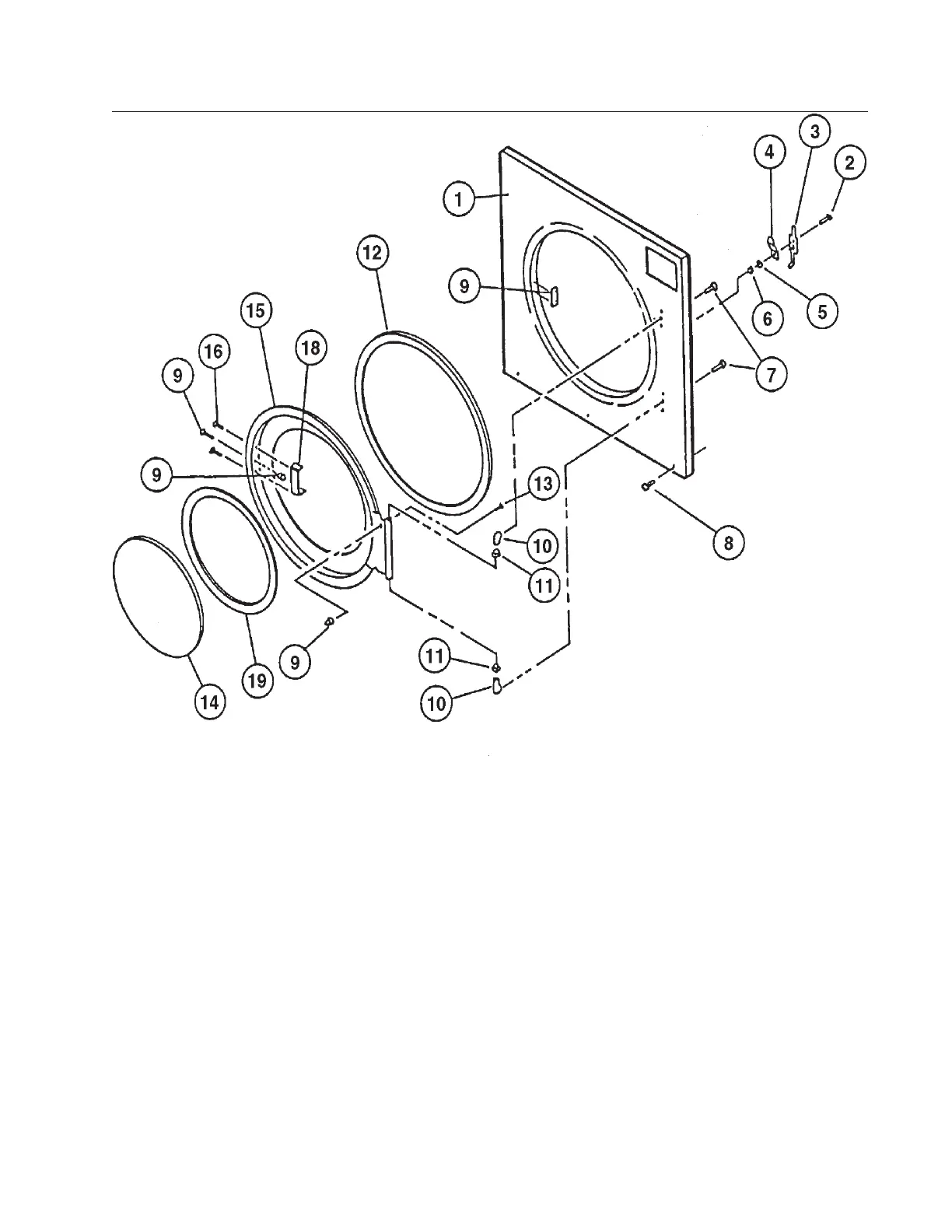

TU14602 - Front Panel and Door Assembly (Illustration)
1 TU14601 Front Panel W/Door Catch - c/m
2 M262 #8-32 x 3/8" Truss Head Screw
3 TU2194 Door Switch Actuator
4 TU2105 Door Switch Spring
5 FB187 #8 Split Lockwasher
6 TU3266 #8-32 Hex Nut
7 TU2836 5/16" - 18 x 1/2" Hex Head Screw
8 TU2878 #10 x 5/8" Sheet Metal Screw
9 TU5158 Door Catch Assembly
10 TU2236 Hinge Post
11 PIF172 Delrin Bearing (Pkg. 2)
12 TU2090 Basket Door Seal
13 TU4839 #10-32 x 3/8" Machine Screw
14 TU7862 Door GLass (Plain)
TU7862C Door Glass (w/Logo)
15 TU7171 Basket Door (Specify Color)
16 TU3215 #10-32 x 3/8" Taptite Screw
18 TU2874 Basket Door Handle
19 TU7169 Rubber Gasket
NOTE: TU4827---Actuator Assembly Consists of Ref. No. 2, 3, 4, 5, and 6
TU9040 ---Door Assembly Consists of Ref. No. 11-19 (Specify Color)
