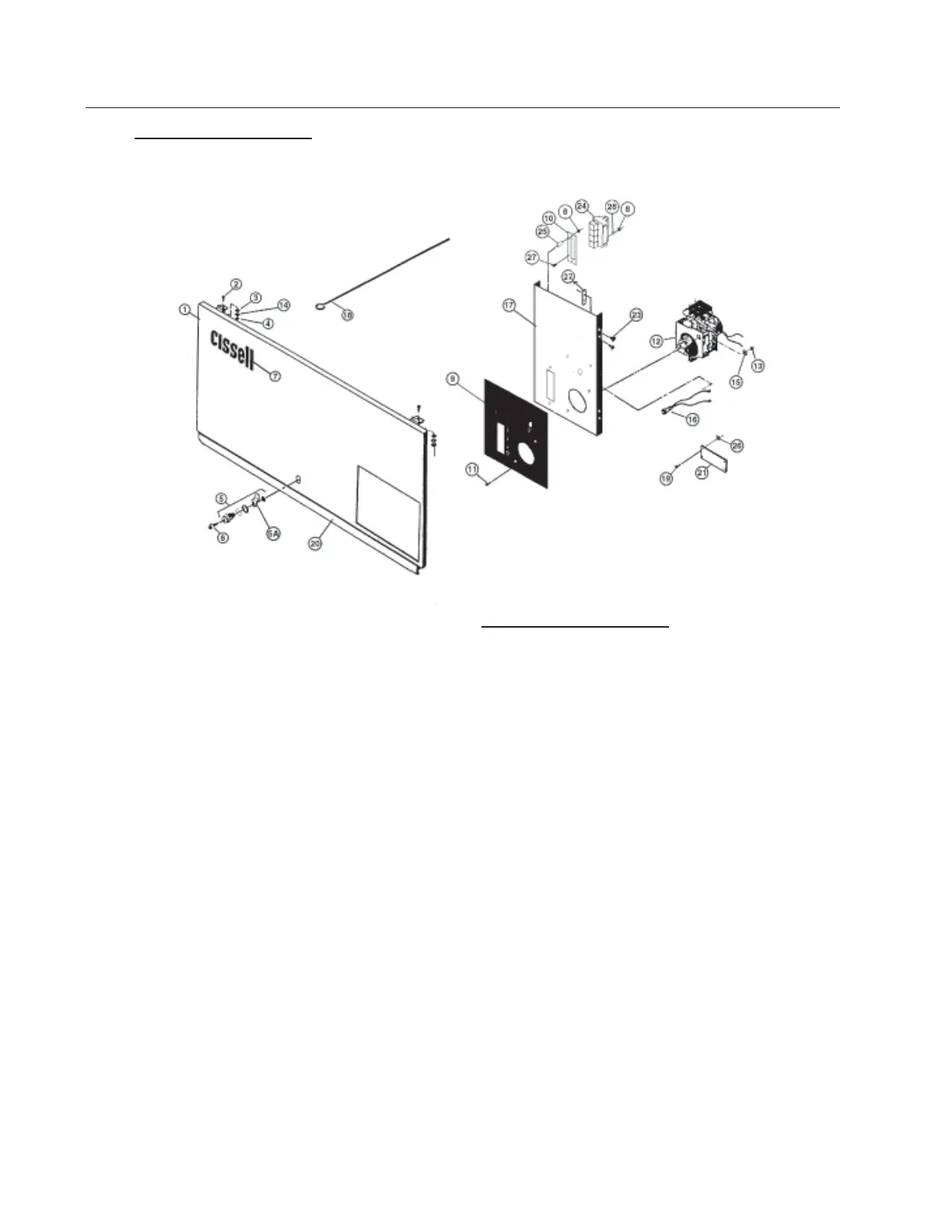

Parts—Access Door and Control Panel—Electro-Mechanical Coin Meter
Access Door Assembly
Ref. Nos. 1, 5-7, 18, 20, 29-30
TU14567
Control Panel Assembly
TU13721 - 24V 50/60 Hz. Gas
TU13847 - 24V 50/60 Hz. S/E
14 FB187 #10 Lockwasher
15 P104 1/4" Cut Washer
16 TUT316 Indicator Lamp—24V
17 TU13858 Control Panel Plate Asm.
18 TU5739 Support Rod
19 M262 Screw
20 TU14553 Trim Access Door
21 TU8629 Terminal Board
22 TU1771 Twin Clip
23 TU9524 #6 x 5/16" Screw
24 TU11510 Push Button Switch
25 TU14701 Spacer
26 TU3266 Nut
27 SV136 #6-32 x 15/16" Truss Head Scr.
28 M271 #8 Int. Tooth Lockwasher
29 SB-00951-0 Screw #8 x 7/16 Phillips
30 CA-13098-0 Gasket Access Door (Not Shown)
* Call factory for Coin Meter part number for 50 Cy.
1 TU14568WHT Access Door Weldment (Specify Color)
2 TU3479 #10-32 x 7/16" Truss Head Screw
3 P104 1/4" Cut Washer
4 TU2842 #10-32 Hex Nut
5 TU9386 Lock-JWC3
5A TU8995 Cam
6 TU9387 Key - JWC3
7 TU14662 Logo Decal
8 TU3400 Nut
9 TU13843 Control Panel Nameplate
10 TUT191A Push Button Switch Plate
11 TU4958 #8-32 x 3/8" Machine Screw
*12 CM7364 25¢/15 Min. - 24V
CM7365 25¢/12 Min. - 24V
CM7366 25¢/10 Min. - 24V
CM7368 25¢/7-1/2 Min. - 24V
CM7370 25¢/6 Min. - 24V
CM7372 25¢/5 Min. - 24V
13 TU3266 #8-32 x 11/32" Hex Nut
