Page 53

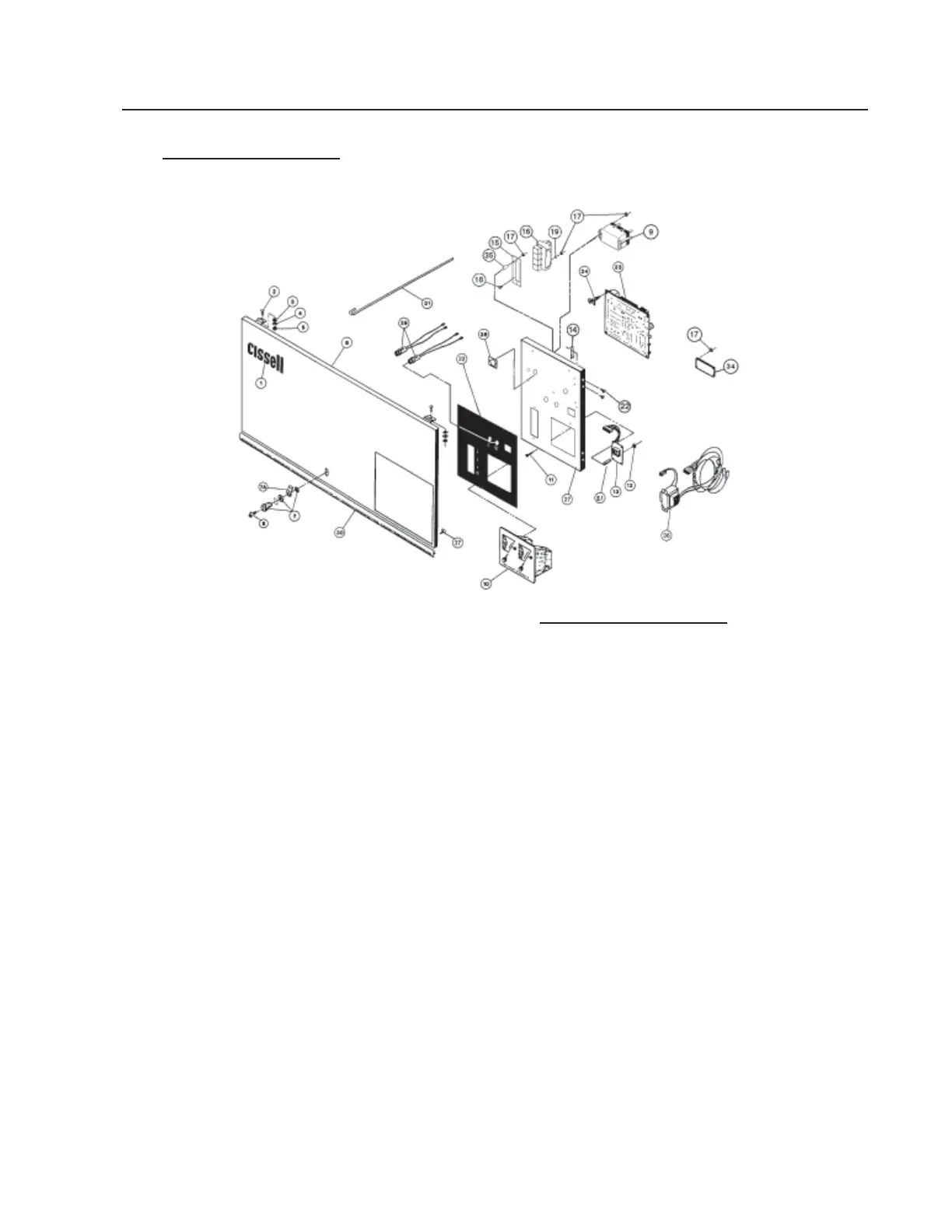

Parts—Access Door and Control Panel—Computerized Coin Meter
16 TU11510 Push Button Switch
17 TU3400 Nut
18 SV136 #6-32 x 15/16" Truss Head Screw
19 M271 #8 - Int. Tooth Lockwasher
21 TU11668 Standoff
22 TU9524 #6 x 5/16" Screw
23 TU13412 C/M Control (24V) F/1-Slot
TU9329 C/M Control (12V) F/2-Slot
24 TU9347 P.C. Board Support
27 TU13857 Control Panel Plate Asm.
28 TU9514 Reset Label
29 TUT316 Indicator Lamps 24V
30 TU14553 Trim Access Door
31 TU5739 Door Support Arm
32 TU13842 Control Panel Nameplate
34 TU8629 Terminal Board
35 TU13942 Spacer
36 TU9898 Transformer 24V/12V
(Used with TU9329 C/M Control)
37 SB-00951-0 Screw #8 x 7/16 Phillips
38 CA-13098-0 Gasket Access Door (Not Shown)
1 TU14662 Logo Decal
2 TU3479 #10-32 x 7/16" Truss Head Screw
3 P104 1/4" Cut Washer
4 FB187 #10 Lockwasher
5 TU2842 #10-32 Hex Nut
6 TU14568WHT Access Door W/A (Specify Color)
7 TU9386 Lock JWC3
7A TU8995 Cam
8 TU9387 Key JWC3
9 F1300 Motor Relay
10 - - - Coin Rejector (Specify Coin
Number and Denomination)
TU9006 Rejector Single Chute (25 cents)
TU9008 Rejector Dual Chute (25/10 cents)
TU9897 10 cents Coin Switch Replacement
TU9898 25 cents Coin Switch Replacement
11 TU9426 4-40 x 5/8" Machine Screw
12 TU9427 4-40 Hex Nut
13 TU13469 Digital Display Assembly
14 TU1771 Twin Clip (Pkg. 12)
15 TUT191A Push Button Switch Plate
Control Panel Assembly
TU13724 - 24V 50/60 Hz. Gas
Access Door Assembly
Ref. Nos. 1, 6-8, 30-31, 37-38
TU14567
