Connecting the Pi-DigiAMP+ to your Raspberry Pi
WARNING: PLEASE ENSURE ALL CABLES ARE DISCONNECTED FROM THE Pi-DigiAMP+ AND
THE RASPBERRY PI BEFORE ATTEMPTING THIS PROCEDURE.
The Pi-DigiAMP+ can be connected to the Raspberry Pi’s 40way pin header without any additional
soldering.

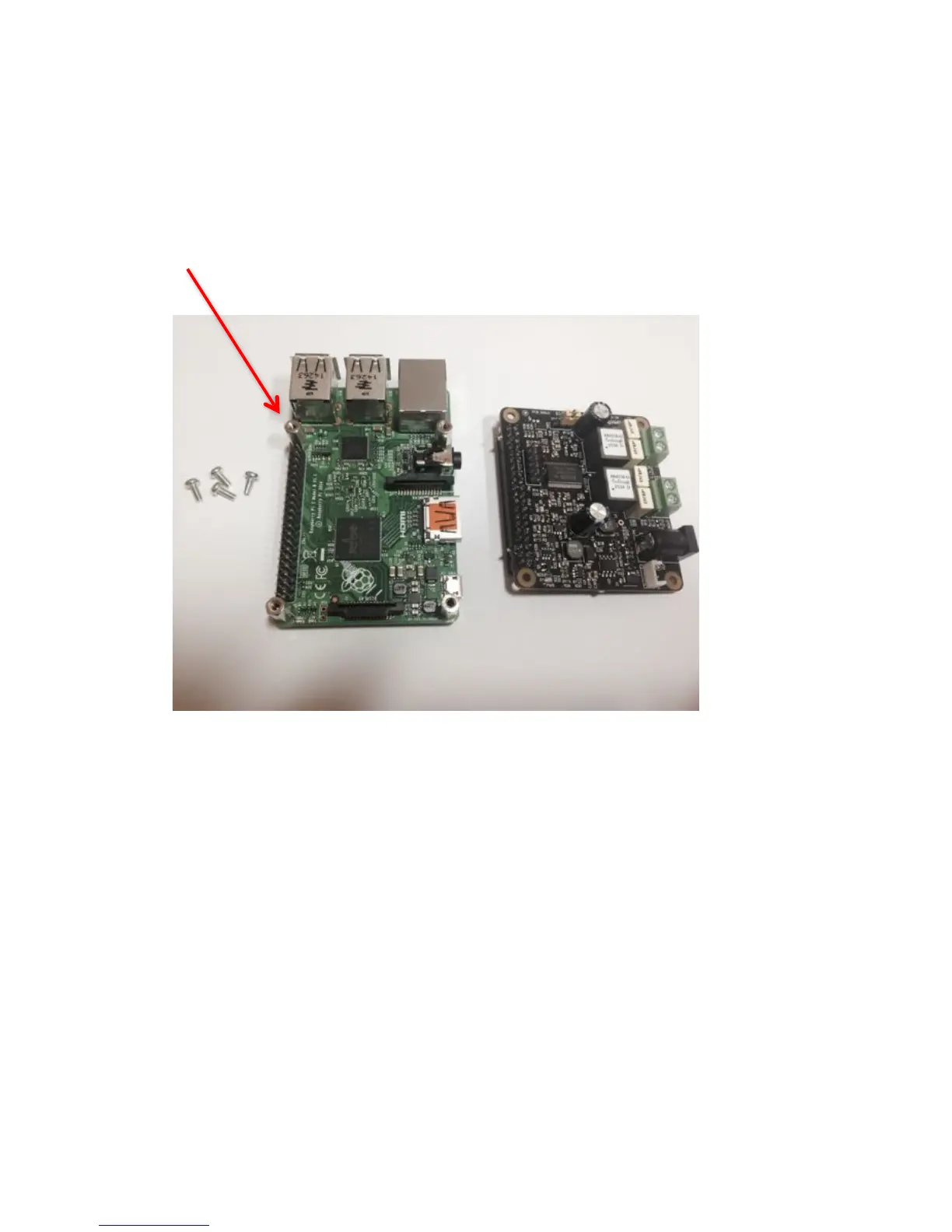

The Pi-DigiAMP+ is supplied* along with 4x 12mm PCB spacers and 8x M2.5 screws.
The spacers should be screwed (finger tight only) to the Raspberry Pi before adding the Pi-DigiAMP
+.
