Connecting the Pi-AMP+ to your Pi-DAC+
WARNING: ENSURE YOU HAVE DISCONNECTED ALL POWER BEFORE ATTEMPTING THIS
PROCEDURE
The Pi-AMP+ connects to the Pi-DAC+ through both Pi-DAC+’s two pin headers (the 2x4 audio pin
header, and the 2x5 power header).
NOTE: Older Pi-DAC+ may not have the 2x5 power header fitted. Please see Section 10 for details
on how to solder this to the Pi-DAC+ before continuing.

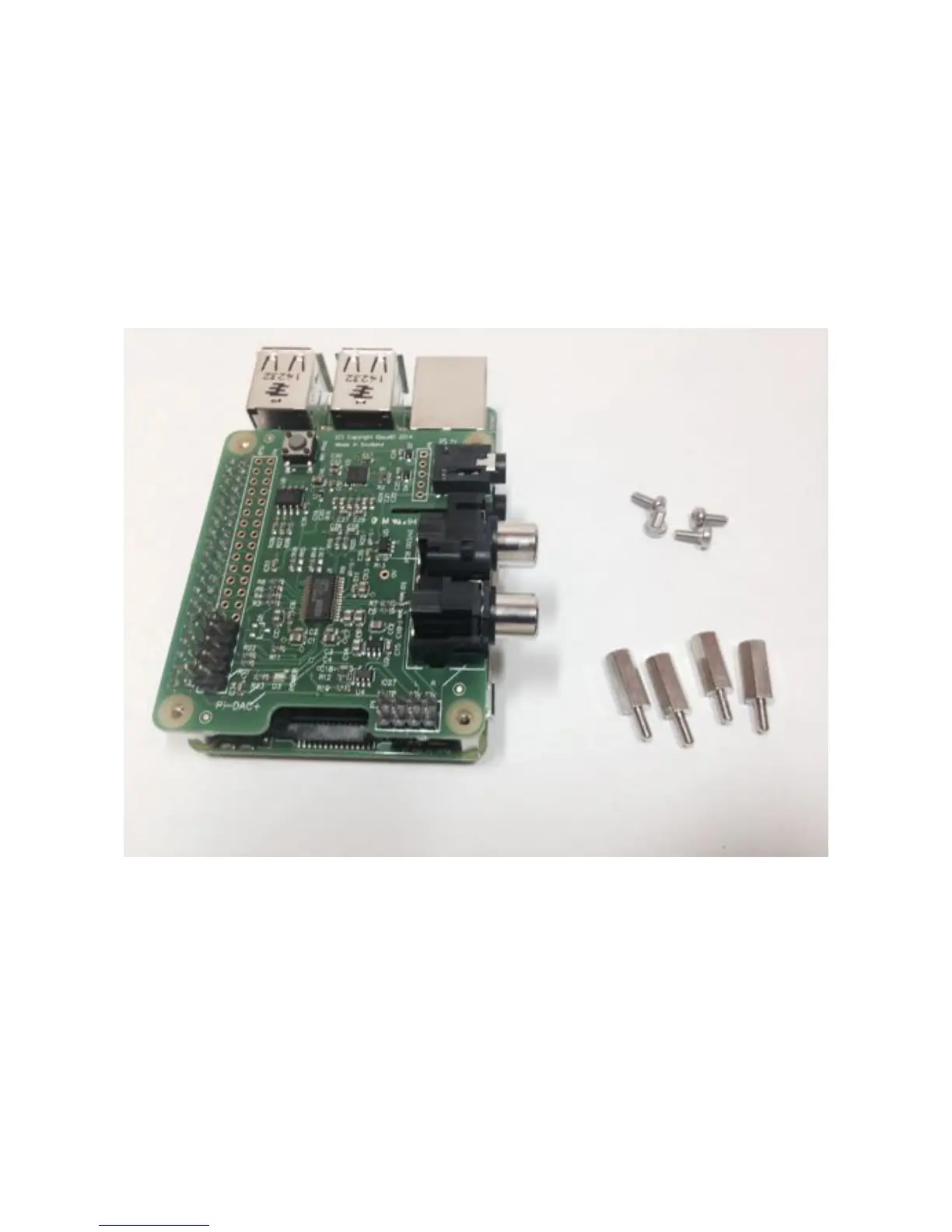

The Pi-AMP+ is supplied* with 4x male/female 12mm M2.5 PCB spacers. Use these spacers to
attach the Pi-DAC to the Raspberry Pi.
!
