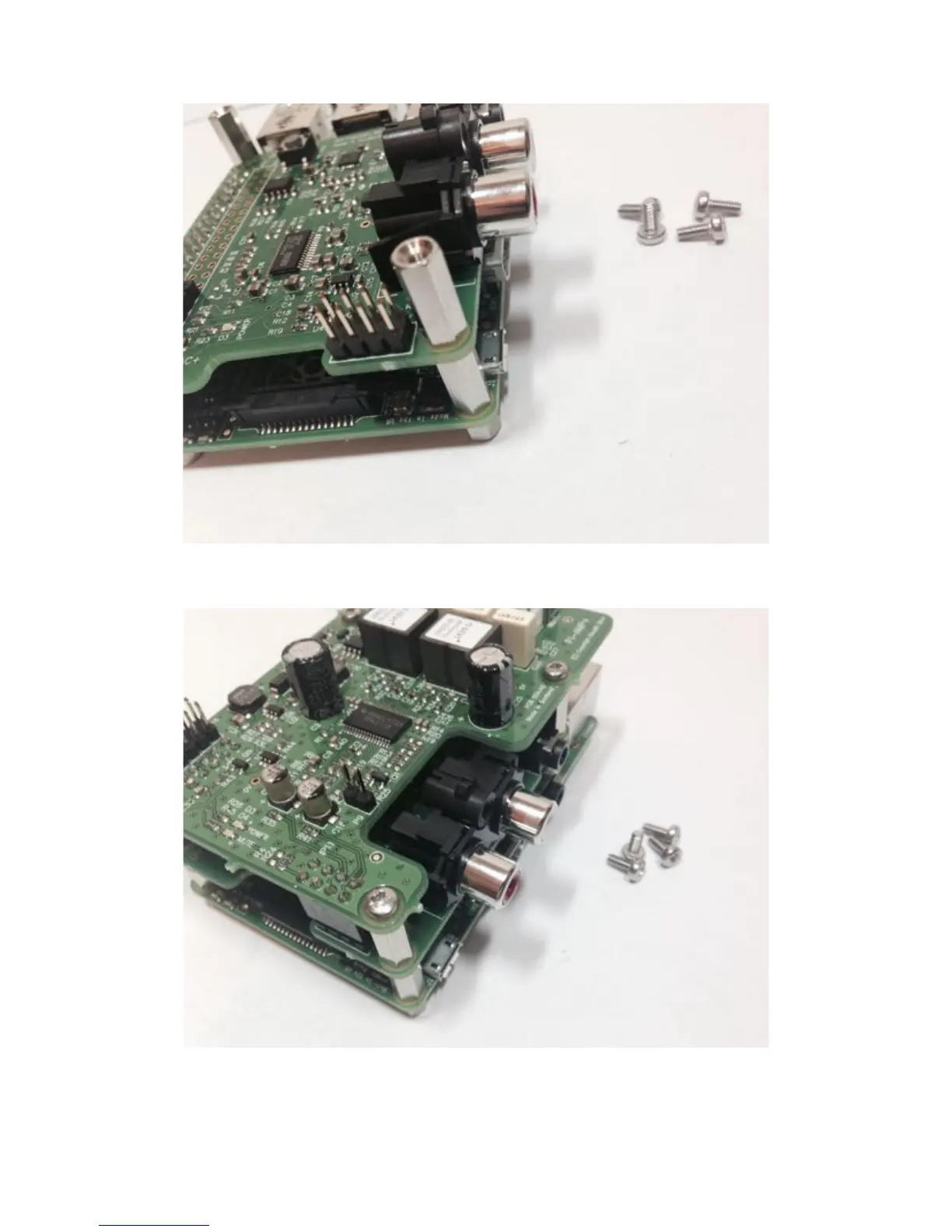

The male/female spacers should replace the 4 screws (these should be retained) previously used to
secure the Pi-DAC+ to the Raspberry Pi.
!
Once the Pi-AMP+ has been fitted the remaining screws (from the Pi-DAC+) can be tightened (finger
tight is fine) as required to secure the full PCB stack.
!
