Building the Raspberry Pi and IQaudIO sound cards into your Pi-CASE+
The following may prove helpful when building your Raspberry Pi and IQaudIO sounds card into the
appropriate Pi-CASE+.

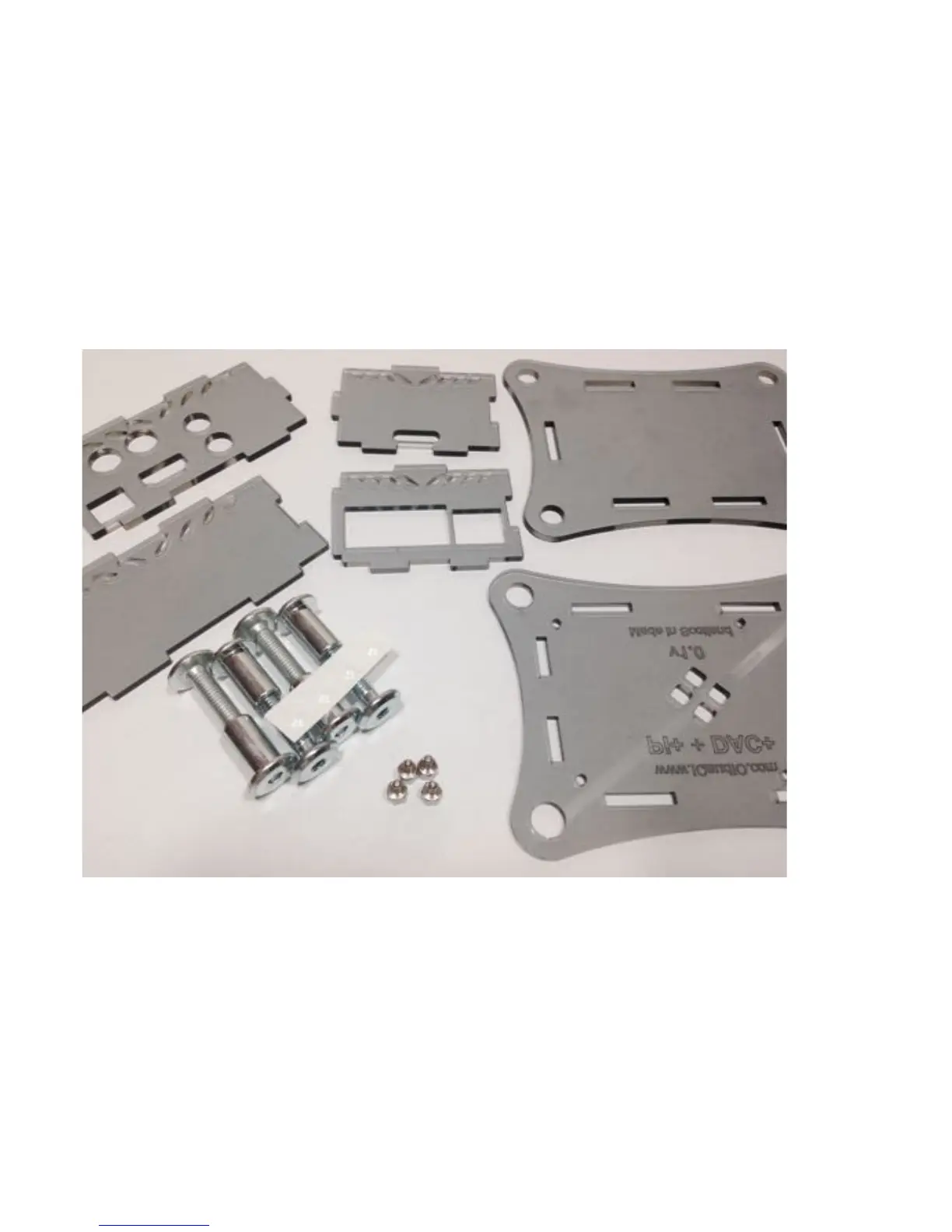

All acrylic CASE+ installations follow the same process:
•
If there is a protective film applied to either side of your acrylic, remove it now. If you build the
CASE+ whilst retaining the protective film you may find that the finished look is spoilt or for
transparent cases, the result may be opaque.
•
Bolt the PCBs together before attempting to install the bundle in the case. Make sure the small
5mm female/male spacers are fitted to the bottom of the Raspberry Pi
•
Build the case sides around the PCB first (tip: use tape on each corner during the build
process)
•
Add the bottom and top
•
Add the bolts and small rubber bumper stickers
!
