THE SENTRY CONTROLLER
The C.P. SENTINEL Automatic Rectifiers are controlled by the IRT SENTRY Controller. Refer
to the following layout of the SENTRY Controller for location of controls and jumpers:

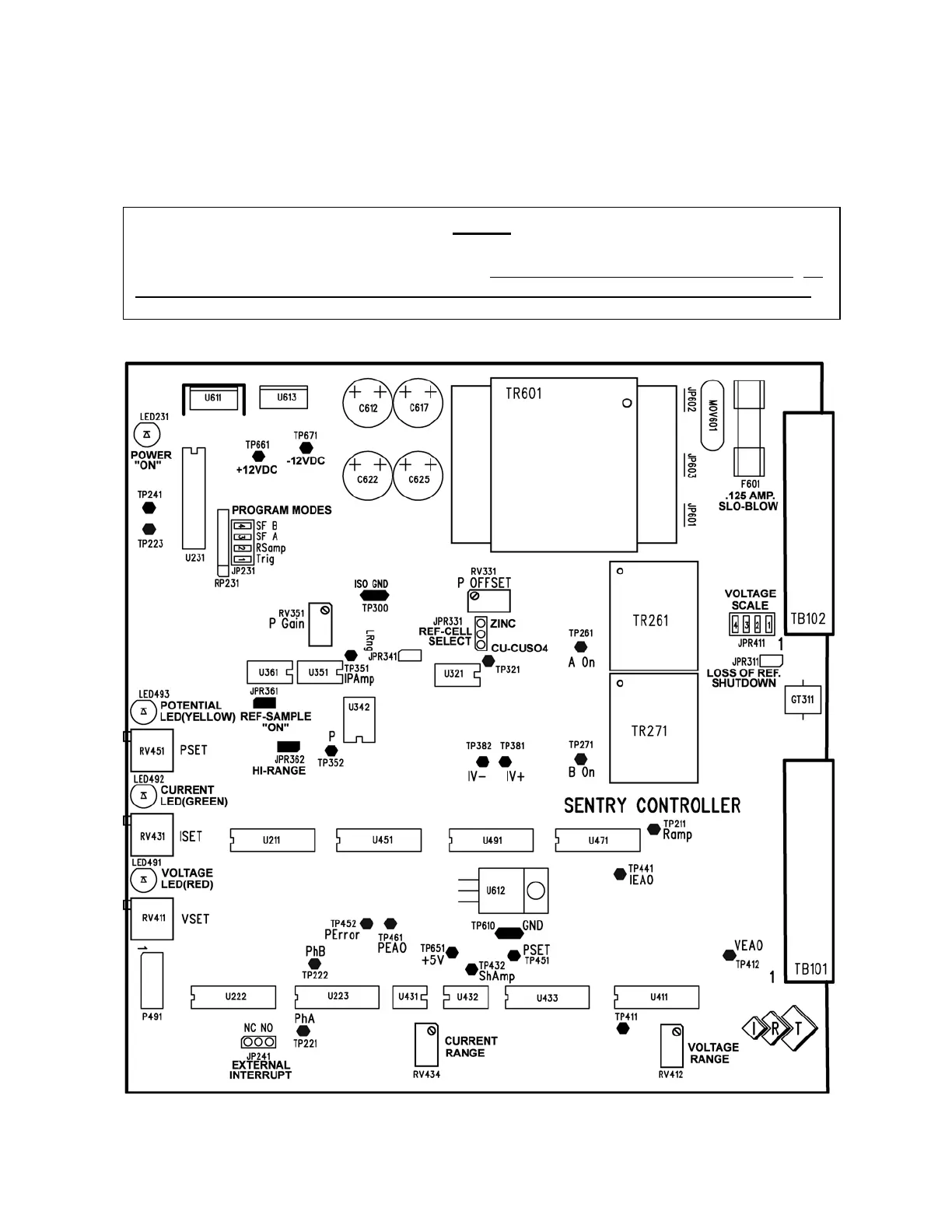

FIGURE 1.0 SENTRY CONTROLLER
(FOR BOARD REV. 2.0)
NOTE:
This section will describe the Controls, Jumpers, Test Points and Adjustments of interest
for field setup and operation, as performed by QUALIFIED TECHNICAL PERSONNEL
. All
Remaining Factory Settings & Calibrations SHOULD NOT be attempted or tampered with.
