b) Remote Heads for BSG1000- type 2 :
. Measurement circuits for two contacts;
. Each head has three cables, 2.5 m long, cross section 4 sq. mm, terminated with crocodile clamps,
for the current injection on two poles.
. Each head has two cables, 2.5 m long, cross section 4 sq. mm, terminated with crocodile clamps,
for the short circuit of noise.
. Each head has two bipolar shielded cable, 3 m long, terminated with crocodiles, for the open /
close detection of the CB contacts.
- Each head has one 8 m long cable, terminated with a multi-pole connector, for the connection
between the remote head and the BSG Main unit.
. No 1 BSG Main unit connected to the CBA2000 breaker analyzer.
. No 1 Cables kit made of:
- N. 1 Nine-way connection cable of BSG Main Unit to CBA1000.
- N. 1 Three-way connection cable for synchronization.
- N. 1 Mains supply cable.
- N. 1 Grounding cable with crocodile.

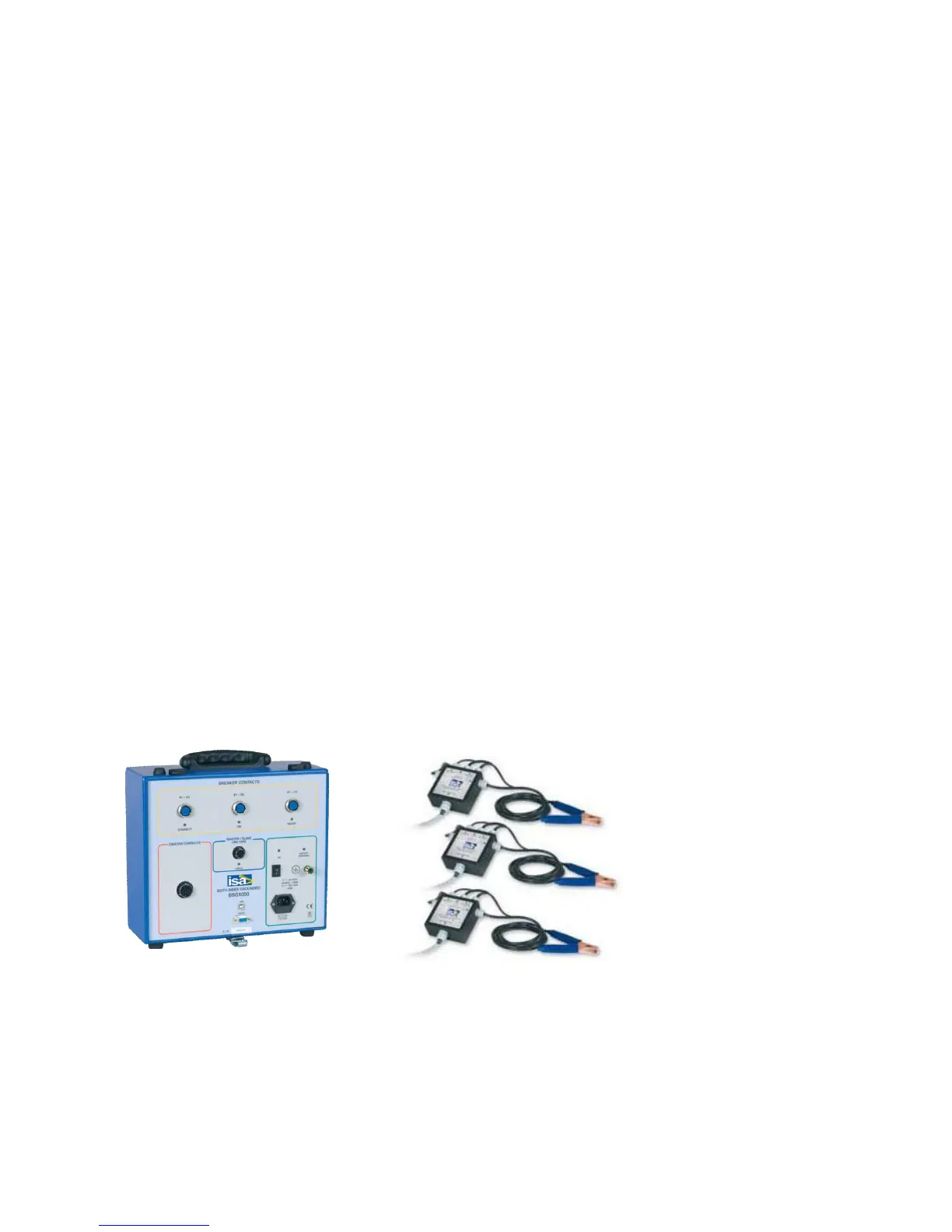

MAIN UNIT REMOTE HEADS
Option characteristics:
. Number of main contact inputs (type BSG1000-1): 3, divided in three groups.
. Number of main contact inputs (type BSG1000-2): 6, divided in three groups of two each.
. Test current injection: 20 A dc nominal.
