. Maximum test duration (each test): 1 s.
. Graphite nozzle test selection in the CBA2000 menu. In this instance, the contact with the graphite
is displayed as an intermediate thickness line. The relevant timings are reported.
Mains supply:
.. From 85 to 265 V AC; 50-60 Hz,
.. From 100 to 350 V DC.
. Maximum supply current: 1 A @ 85 V AC.
Weights and dimensions:
BSG1000 main unit
. Housing: aluminium case, with hinged removable cover and handles.
. Weight: 7 kg
. Dimensions: 320 x 180 x 275 (W x H x D)
BSG1000 measuring heads (three units)
. Housing: die-cast aluminium case.
. Weight: 0,7 kg (no cables)
. Dimensions: 125 x 56 x 125 (W x H x D)

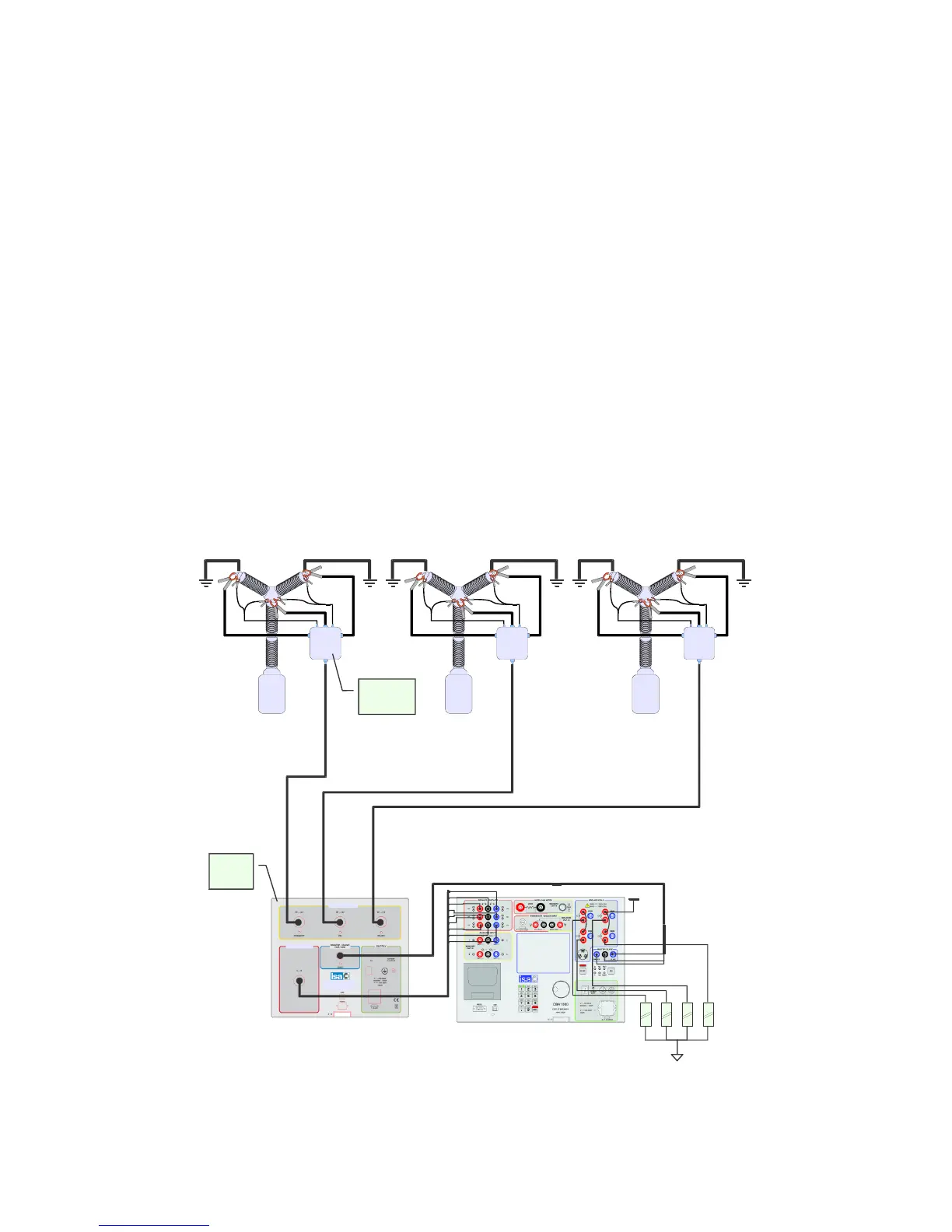

The design below refers to the BSG1000-2 type.
