ISA T1000 PLUS - Connection to Voltage Output

DOC. MIE91093 Rev. 1.34 Page 55 of 145

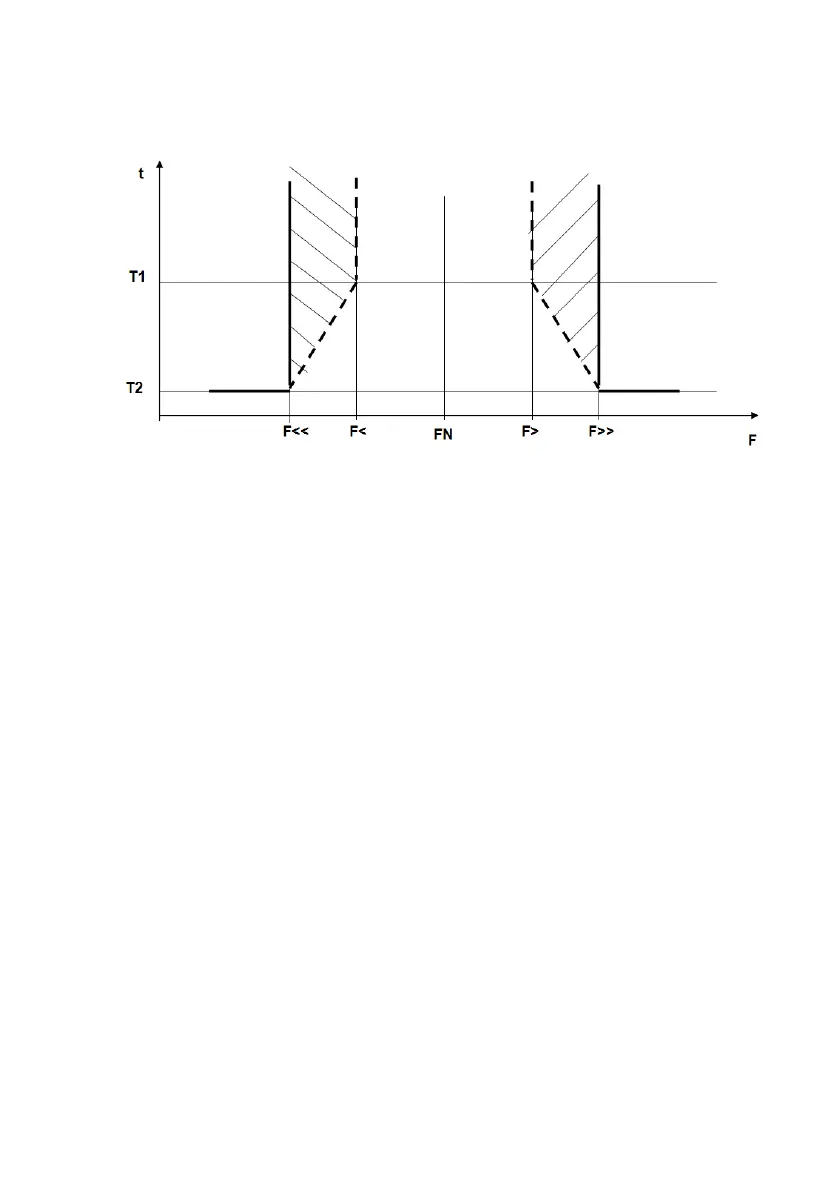

threshold MXROC; else, it does not trip. The characteristic
curve is the following.
In the dashed area the relay trips only if the ROC is higher
than the threshold.
1.7.2. Connection to voltage output
The following is the connection schematic.
F
