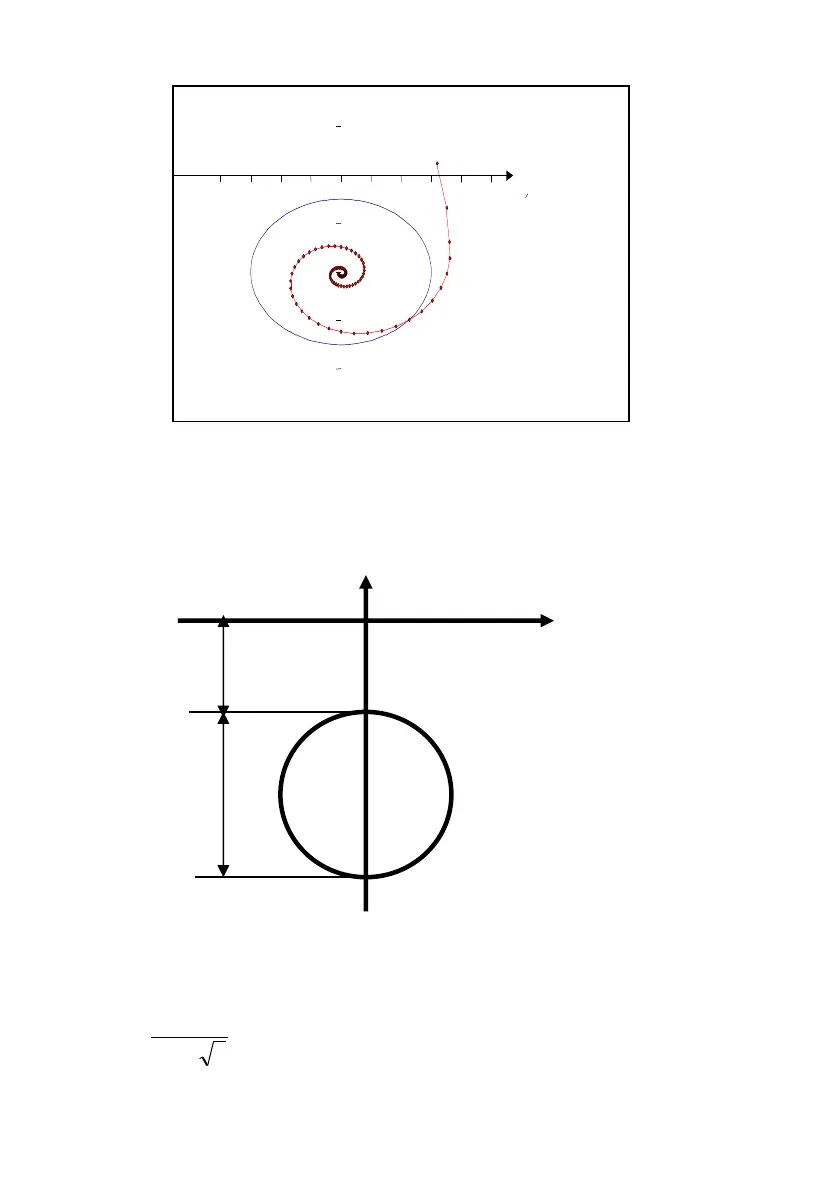

The relay detect the loss of field fault when the working point
enters the relay characteristic curve (the circle). The typical
parameters for LOF relays are the following.
K1 : circle diameter; expressed in % of ZN;
K2: offsert; expressed in % of ZN;
3*IN
VN
ZN 
K2
K1
R
X
