LUBRICATION & PERIODIC MAINTENANCE
85

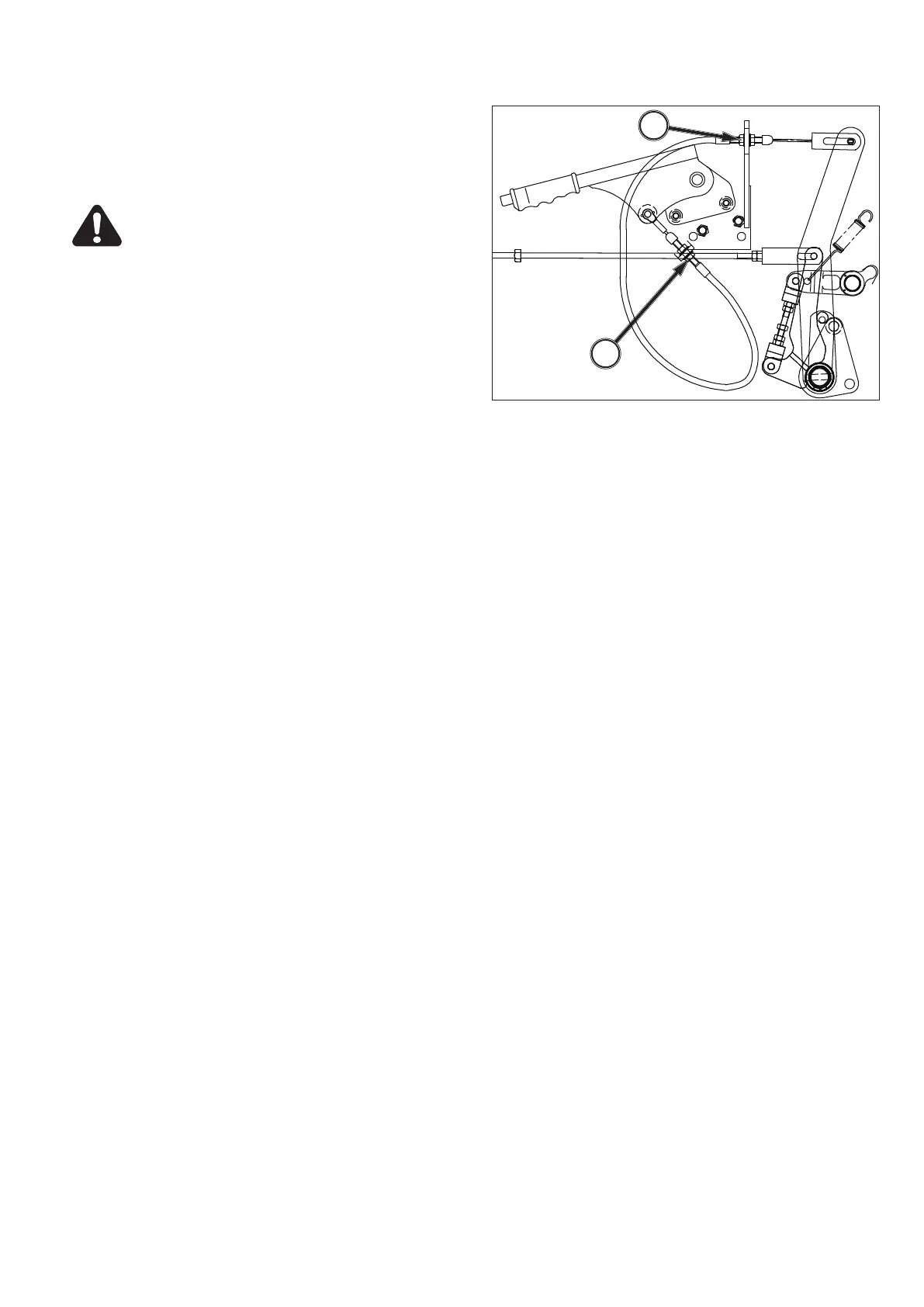

FIG. 153:
After the adjustment of brake pedal, adjust the
parking lever. Adjust the “A” and “B” of cable adjustment
point and adjust as brake is completely engaged with the
parking lever 5 or 6 notches.
CAUTION: Brakes must be adjusted evenly
to permit equal braking action at both rear
wheels when brake pedals are latched
together.
After the adjustment of brake pedal and parking
brake
(1) The play of brake pedal is 40 to 50 mm (1-9 / 16 to
1-15 / 16”).
(2) Brake is completely engaged with the parking lever
5 or 6 notch.
(3) Left and right brakes start to be engaged at the
same time.
(4) Make sure that there is no tire dragging when the
parking lever is released without depressing the
brake pedal.
