5

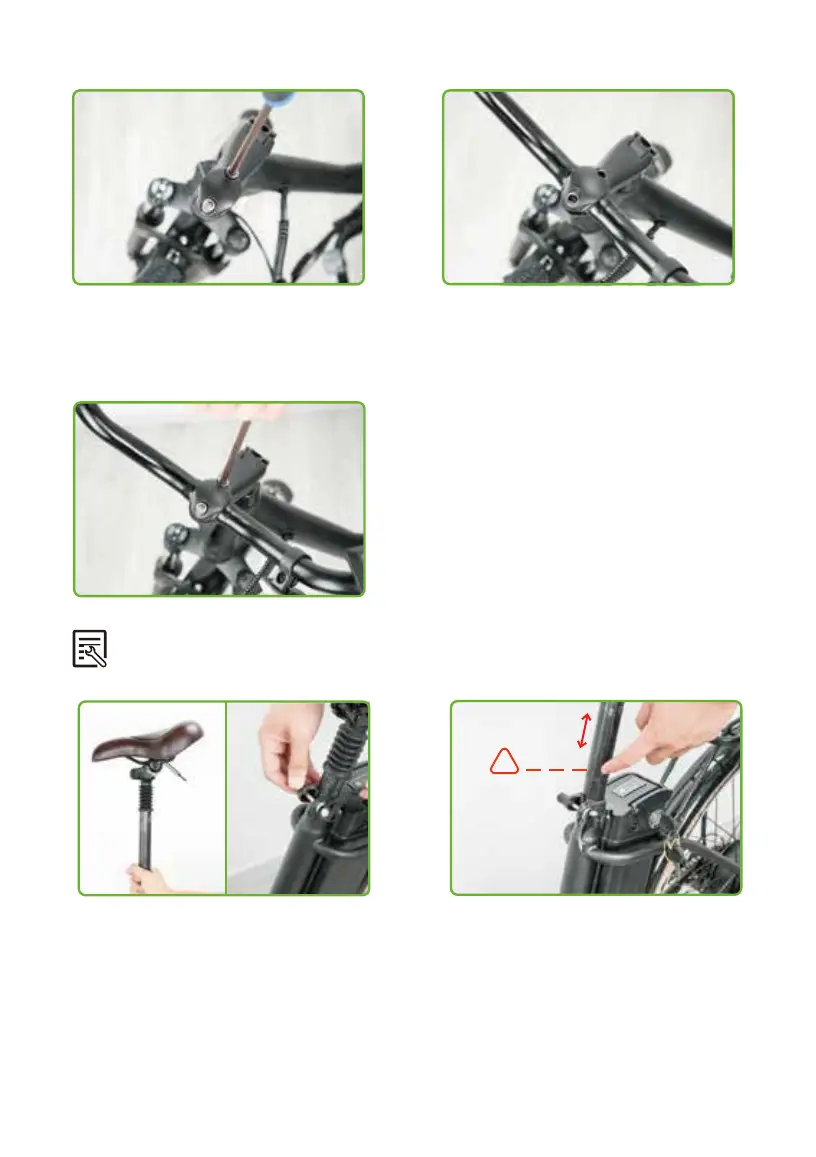

● Fully open the QR lever.
● Inset the seat post into the seat tube.
Must keep the safety line below the upper
end of the seat tube.
● Use an appropriate hex spanner to gently
unscrew the top cap that holds the stem to
the handlebar.
● Place the handlebar correctly on the
stem. Trace the front brake cable directly
from the front brake caliper to the left
handlebar and make sure the cables and
wires are not twisted.
● With the handlebar in the middle, tighten the
4 bolts holding the handlebar evenly. Loosen
the Allen bolts on the side and at the bottom
of the stem to adjust the stem angle if needed.
3.5 Install the seat
