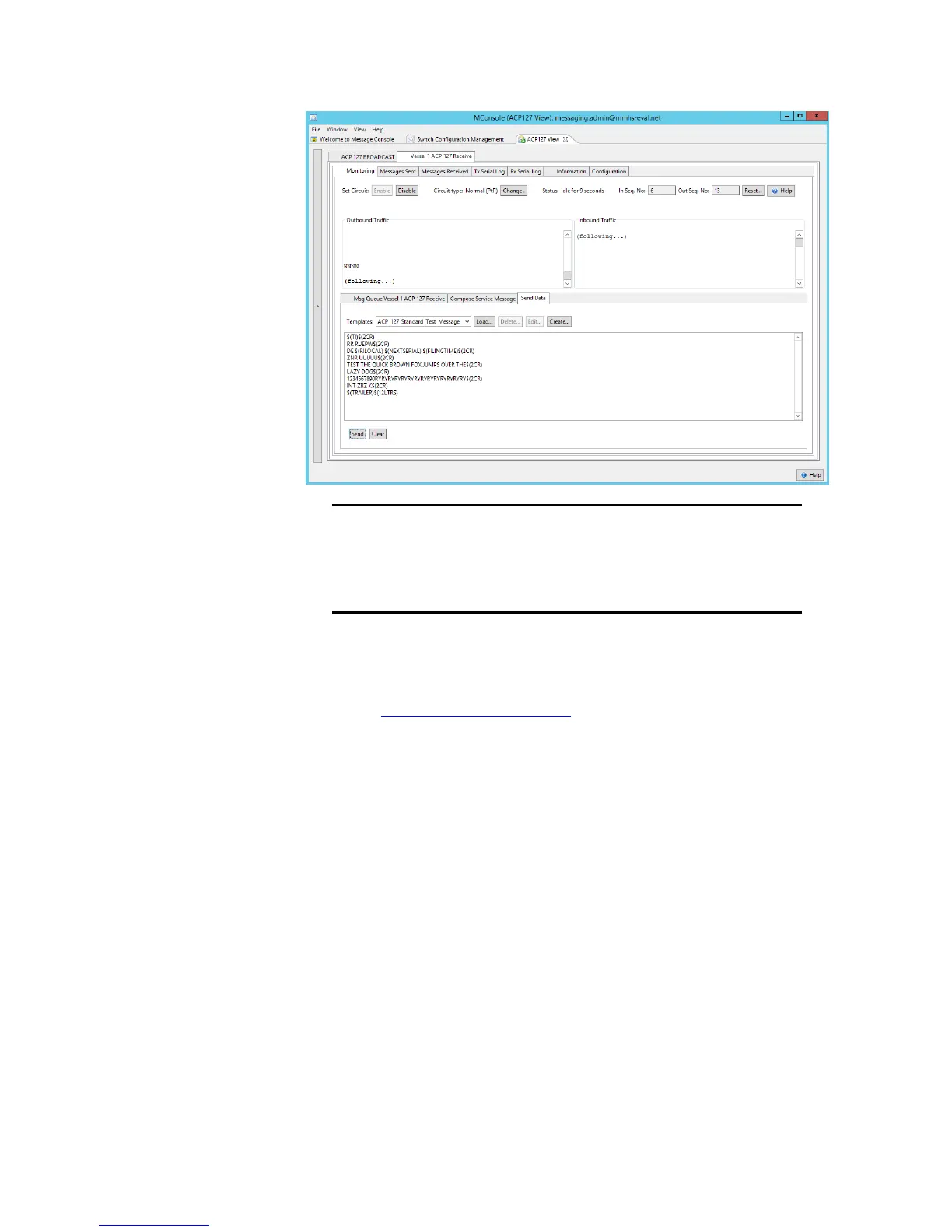

Figure 10.5. ACP127 Circuit Monitor View (Send Data)
Note: The default directory which contains the test templates can be changed by
altering the Template Directory within the ACP127 Monitoring tab of the Edit
Message Switch dialog. This dialog can be found by right clicking on your Switch
and selecting Modify, in either the Switch Operations view or the ACP 127
View.
10.1.2 ACP127 Repair Queue
The repair queue provides a list of messages that have garbled content. This tab will only
appear if the circuit has been configured to send garbled messages to the repair queue as
explained in M-Switch Administration Guide.
The Garbled tab provides the functionality to process these messages. The messages in
this queue can be discarded using the Discard... button and corrected using the Repair...
button.
The Repair dialog presents the garbled content in an editable area. Message can be corrected
here and then submitted to the server.
ACP127
38M-Switch Operator's Guide
