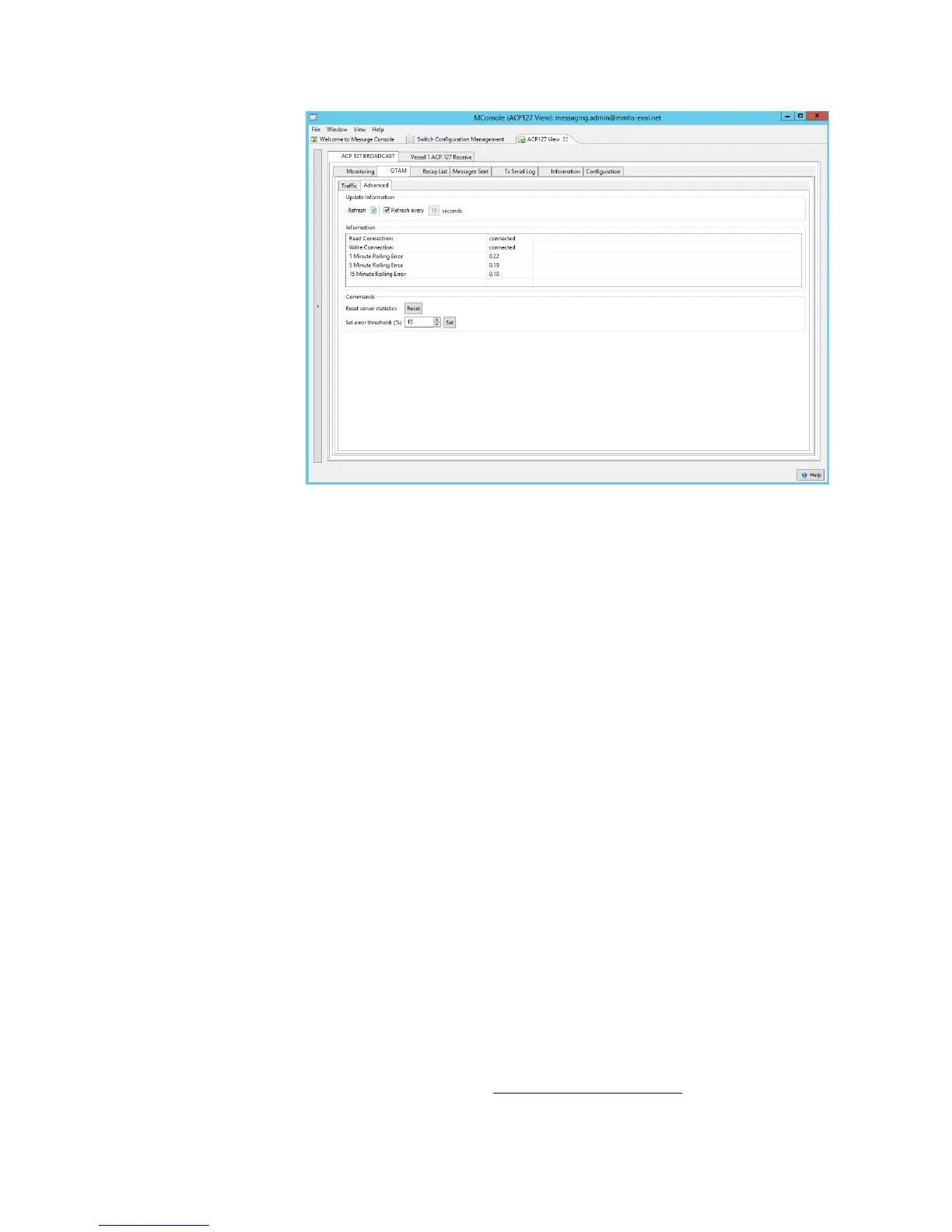

Figure 10.12. ACP127 OTAM View Advanced
The Advanced tab allows a user to:
• Refresh the error information and connection status
• Check the read connection.
• Check the write connection
• Check the 1 / 5 / 15 minute rolling average error information.
• Reset the error statistics.
• Set an error threshold. If the error rate reaches this level then an alert is issued.
Error information is updated when MConsole asks for the information to be refreshed from
the OTAM process. A user can do this manually by selecting the Refresh button, or by
setting the Refresh every option.
Selecting the Reset button will cause the OTAM process to reset its internal error count.
MConsole will notify a user if the OTAM internal error count exceeds the specified error
threshold.
The Read and Write connection information is useful to check that the OTAM process
has both read and write streams. It requires both streams to function correctly. If one or
both of the streams are not connected, then the OTAM process cannot provide any useful
information to the user.
10.1.8 ACP127 Queue Tabs
ACP127 server has types of queues associated with it that can be enabled by configuring
the server to send messages to them in certain scenarios.
10.1.8.1 Duplicate Queue
The duplicate queue presents the list of messages that the server regards as duplicates. This
tab will only appear if the circuit has been configured to send duplicate messages to the
duplicate queue as explained in M-Switch Administration Guide
ACP127
43M-Switch Operator's Guide
