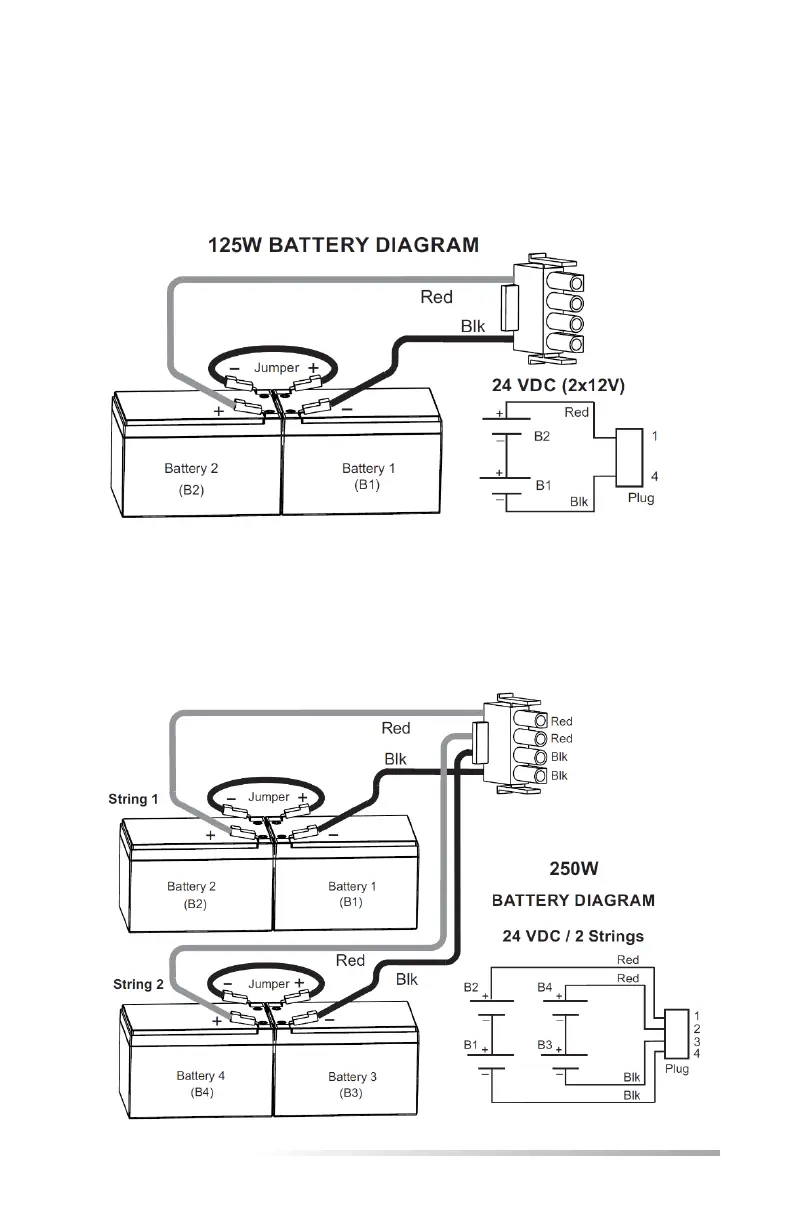

5.4 Battery Wiring Diagrams
E3MINI SERIES | 11
125W Inverter Single string of 24VDC
Connect Jumper and wires as shown below
250W Inverter Two strings of 24VDC
Connect Jumpers and wires as shown below
