Isolite E3MINI Series - TYPICAL WIRING DIAGRAMS; Diagram 1: Normally-On Output Wiring; Operation: Normally-On Output Use

13.0 Typical Wiring Diagrams
Input
Power
Earth GND
N-ON
LED Fixture
Operation:
Normally-On output is ALWAYS
energized 24/7. Use this output
when you need a continuous un-
interrupted source of power.
LINE
NEU
28 | INSTALLATION / OPERATION MANUAL
DIAGRAM #1
Note:
LED Fixture Neutral wire not shown.
Always run dedicated hot and
neutral wires to emergency fixtures
per NEC code.

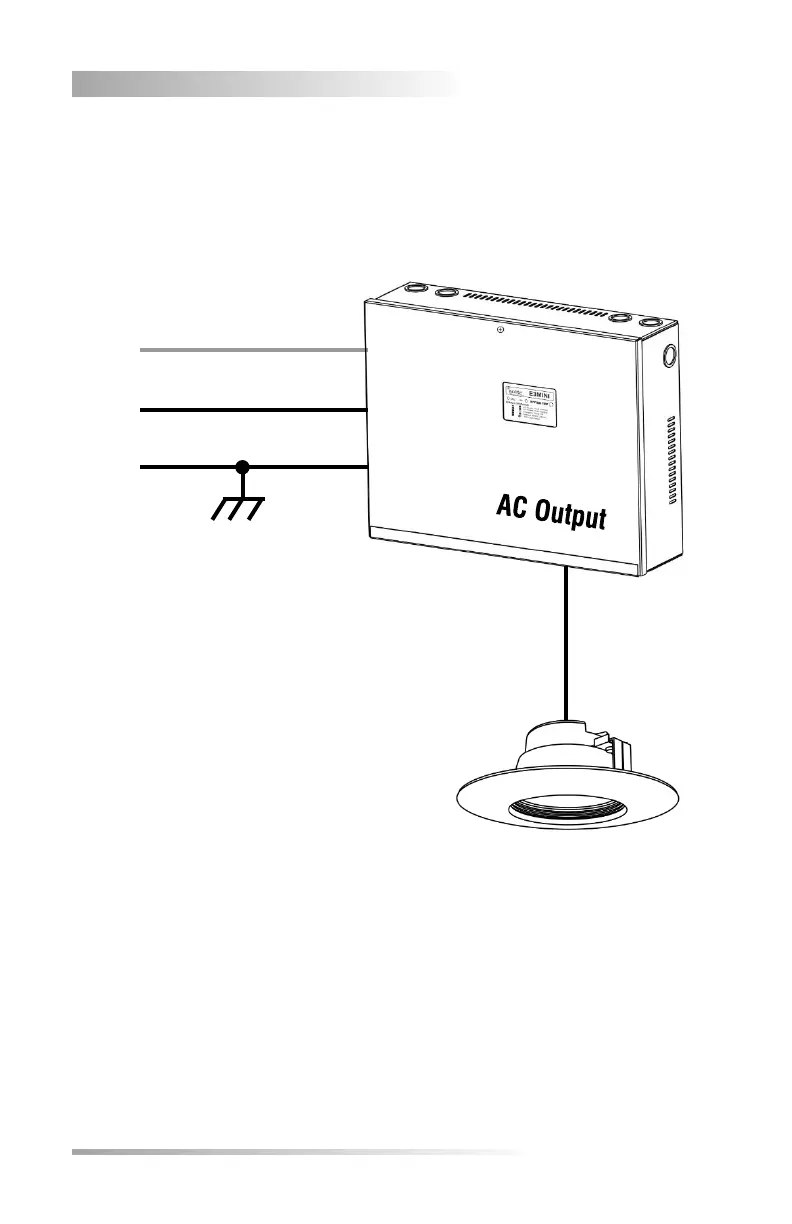

Wiring Diagram showing Normally-On Output
Use for Night-Lights or any other 24/7 Illumination
requirements such as downstream ELCD transfer devices.
