Isolite E3MINI Series - Diagram 2: Normally-Off Outputs Wiring; Operation: Normally-Off Outputs Use

Earth GND
LED Fixture
Note:
LED Fixture Neutral wire not shown.
Always run dedicated hot and
neutral wires to emergency fixtures
per NEC code.
Operation:
Normally-Off outputs are energized
in Inverter Mode ONLY.
Use this output when you need to
illuminate lights only when there is
a power outage.
OUT 1
OUT 2
-OR-
OUT 3
LINE
NEU
Input
Power

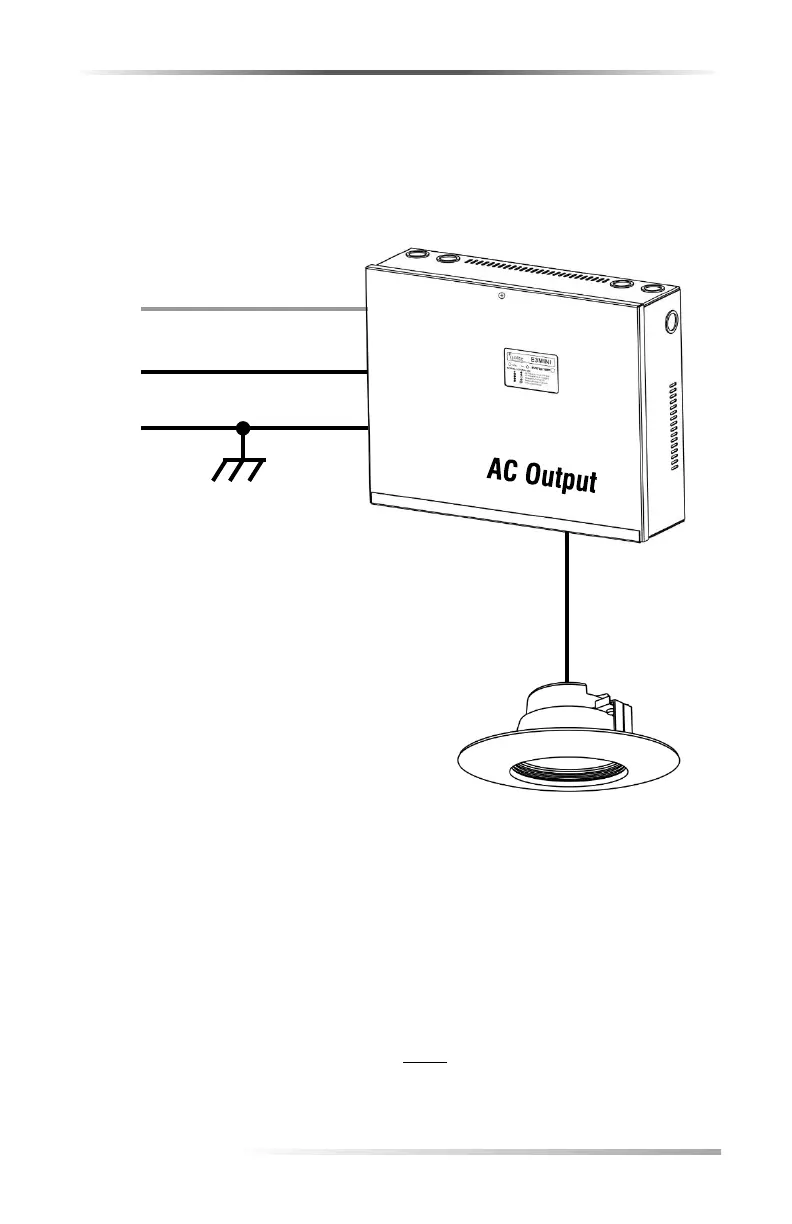

Wiring Diagram Using Normally-Off Outputs
Use when Lights are energized ONLY during Inverter Mode of
operation
DIAGRAM #2
E3MINI SERIES | 29
