istobal 4CA2000 - Location of Main Elements

GENERAL DESCRIPTION 4CA20

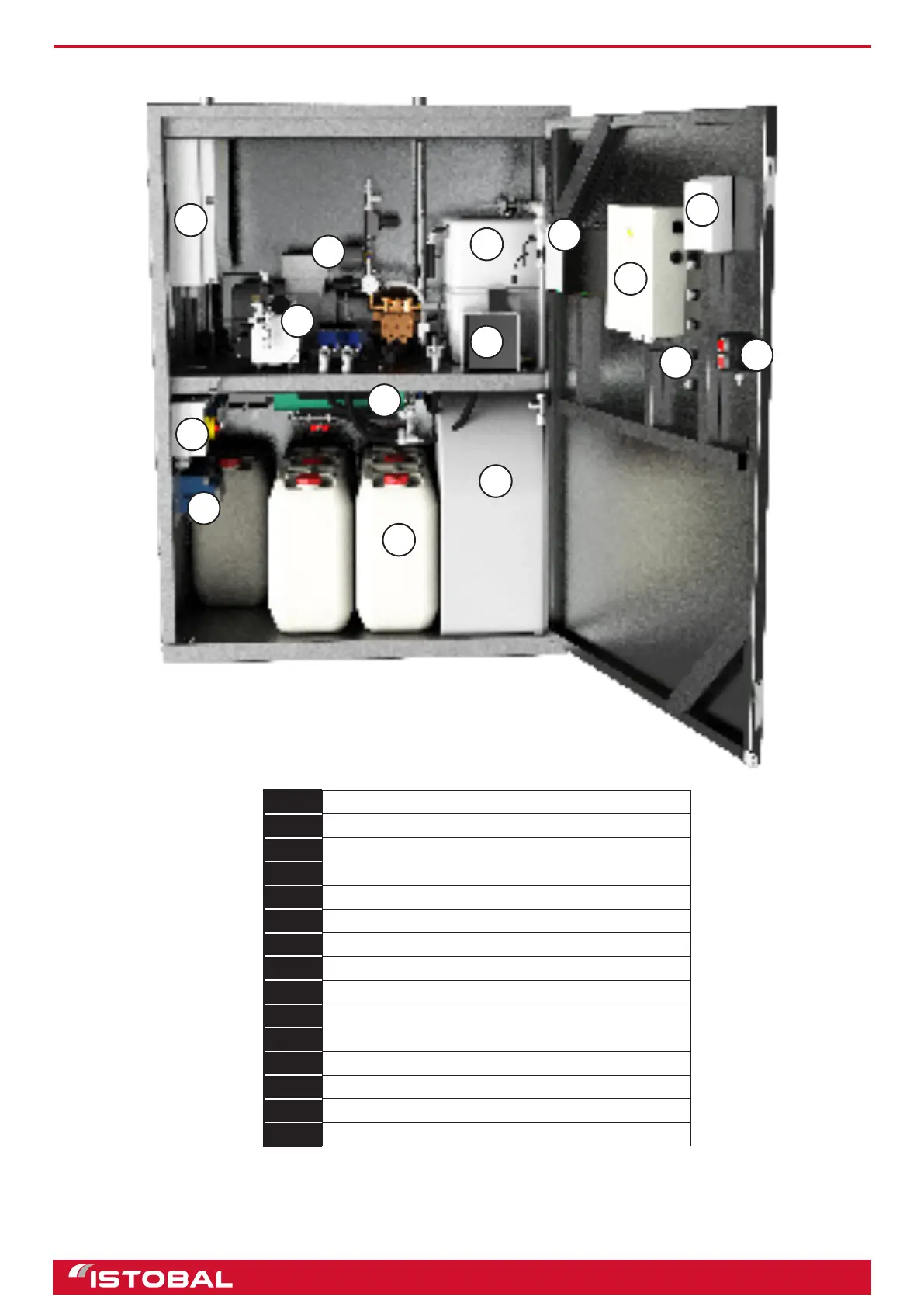

LOCATION OF MAIN ELEMENTS
A Control panel
B Incoming water tank
C Water pump
D Foam maker pump or compressor
E Hot water generator*
F Peristaltic dosing pumps
G Master switch
H Water softener (or hot water generator 40L)*
I Product tanks
J Coin acceptor
K Control board display
L Push buttons
M Buttons “K” and “P”
N Cash box
O Electrical cabinet
*A hot-water generator with a 2.5 L tank or a 40 L generator could be installed instead of the water softener. The
water softener and the 40 L hot-water generator are incompatible due to the lack of room.
J
B
D
C
H
N
E
I
F
G
K
O
A
L
M
11
