ELEMENTS INSTALLED
ELECTRIC HOT WATER GENERATOR 40 L.
OUTLET MIXING VALVE

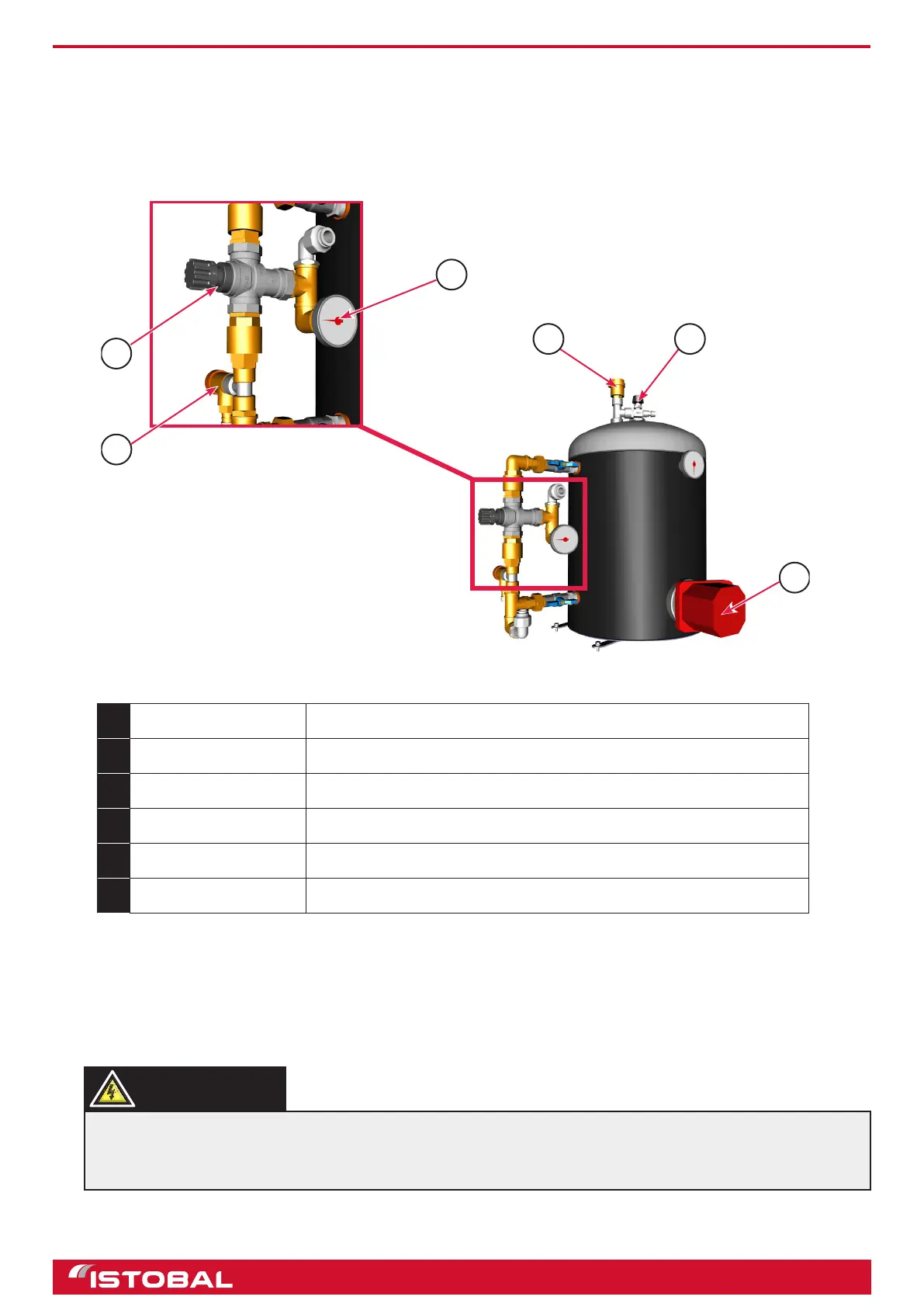

The outlet temperature of the boiler is regulated by means of a mixing valve (A). To verify that the outlet temperature
is between 40 and 60ºC, check the thermometer (B) during the operation of the generator and adjust the mixing
valve (A) if necessary.
.
A Mixing valve
To regulate the outlet temperature of the generator.
B Thermometer
Indicates the outlet temperature of the water.
C Safety valve, 3 bar
This safety valve controls the pressure of water entering the tank.
D Automatic air vent
It purges the air present in the tank automatically.
E Air regulating valve
For manual venting, if necessary.
F Resistance 6kW heating element with thermostat
MAINTENANCE POINTS
Monthly
• Check the thermometer (B) to make sure the water at the outlet is between 40 and 60º. Regulate mixing valve
(A) if necessary
DANGER
» The water and ducts coming out from the generator are very hot and can cause severe
burns.
