Isuzu 2008MY N Series User Manual

Engine Control System (4HK1) 1A-27
Fuel Injector No.1 Cylinder
Fuel Injector No.2 Cylinder
Fuel Injector No.3 Cylinder
Fuel Injector No.4 Cylinder
2 BLK Solenoid valve ground
Connector No. E-35
Pin No. Wire Color Pin Function
1 WHT Charge voltage (Common 1)
2 WHT Charge voltage (Common 1)
3 GRN Solenoid control
Connector No. J-59
Connector Color Black
Test Adapter No. J-35616-33
Pin No. Wire Color Pin Function
LNW46ESH001001
123
LNW46ESH001001
123

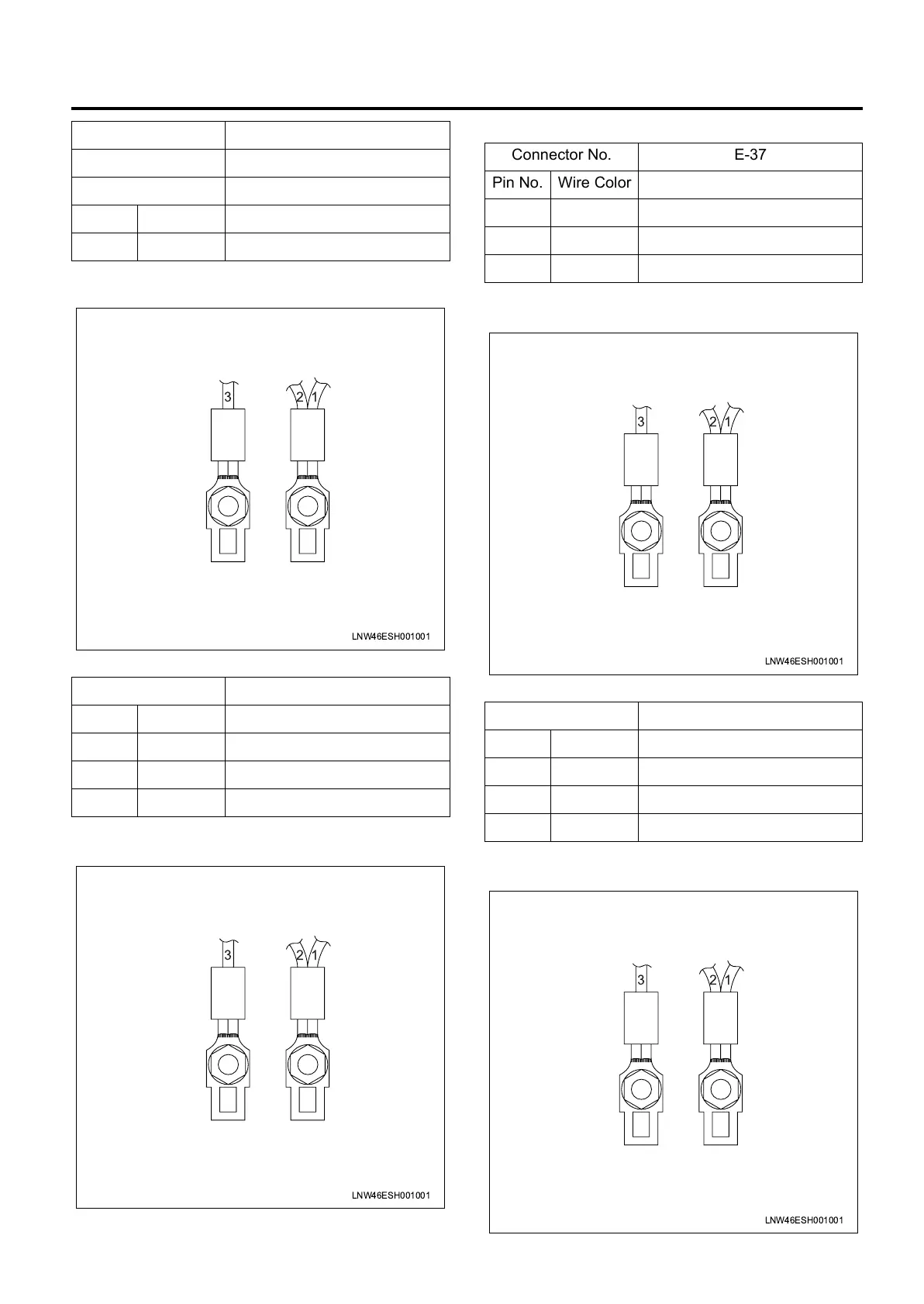

Connector No. E-37
Pin No. Wire Color Pin Function
1 RED Charge voltage (Common 2)
2 RED Charge voltage (Common 2)
3 BLU Solenoid control
Connector No. E-39
Pin No. Wire Color Pin Function
1 RED Charge voltage (Common 2)
2 RED Charge voltage (Common 2)
3 YEL Solenoid control
LNW46ESH001001
123
LNW46ESH001001
123
