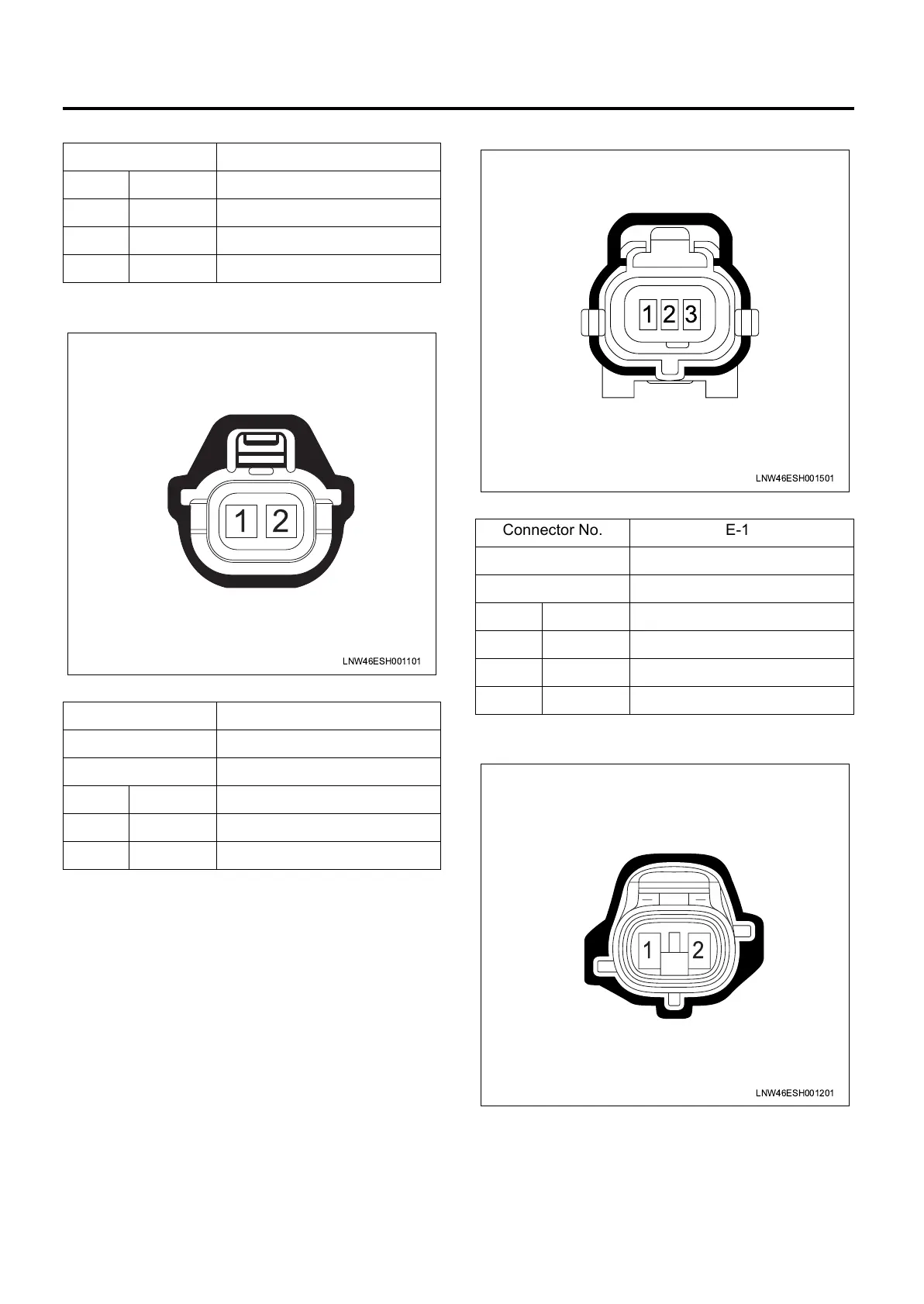

1A-28 Engine Control System (4HK1)
Fuel Rail Pressure (FRP) Regulator
Fuel Rail Pressure (FRP) Sensor
Fuel Temperature (FT) Sensor
Connector No. E-41
Pin No. Wire Color Pin Function
1 WHT Charge voltage (Common 1)
2 WHT Charge voltage (Common 1)
3 BLK Solenoid control
Connector No. E-17
Connector Color Gray
Test Adapter No. J-35616-33
Pin No. Wire Color Pin Function
1 WHT/RED Control high side (PWM)
2 GRN/RED Low side
LNW46ESH001101
1 2
Connector No. E-19
Connector Color Black
Test Adapter No. J-35616-33
Pin No. Wire Color Pin Function
1 YEL/BLK Sensor low reference
2 BLU/WHT Sensor signal
3 LT GRN Sensor 5 volts reference
LNW46ESH001501
123
LNW46ESH001201
12
