Isuzu 2008MY N Series User Manual

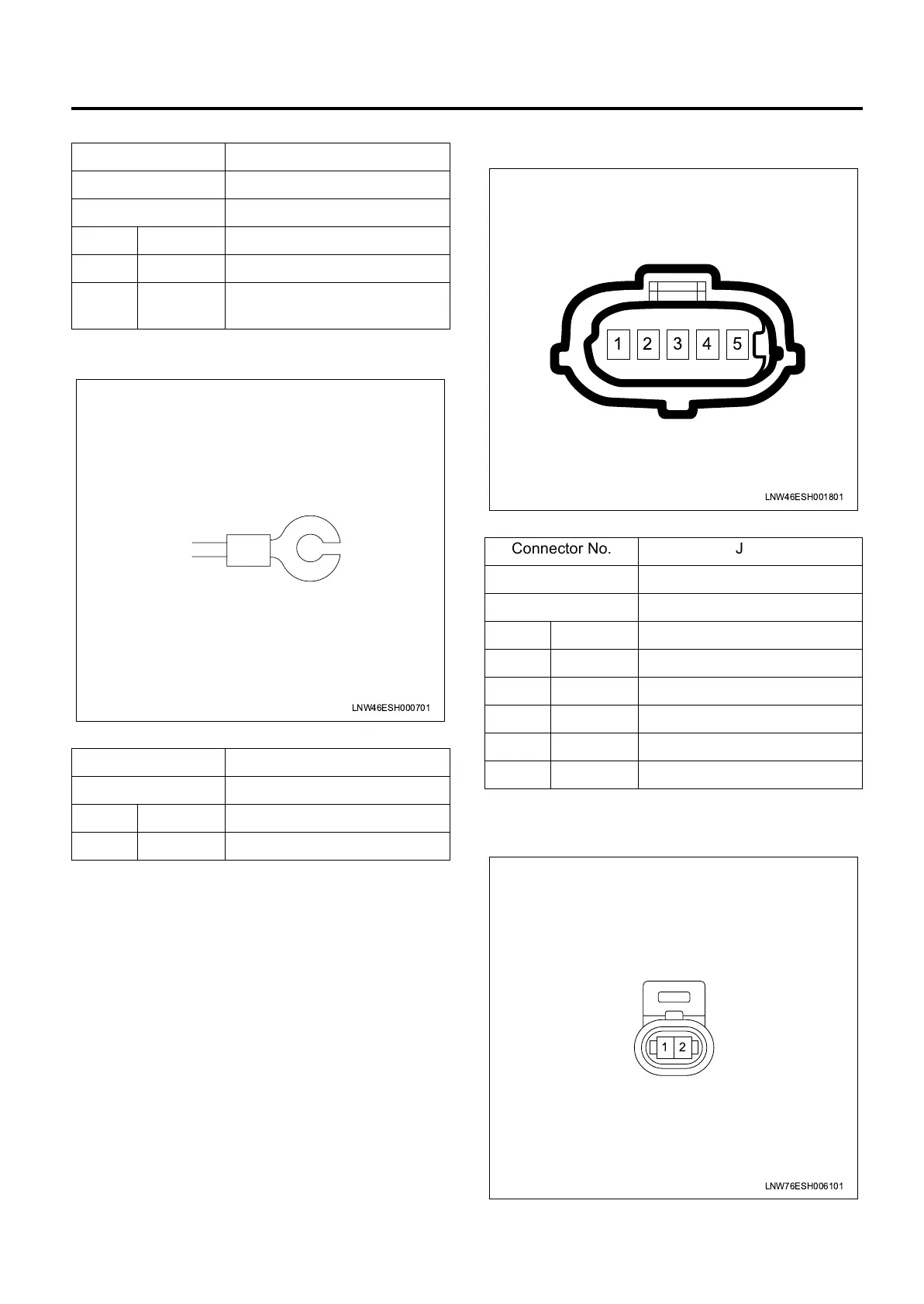

Engine Control System (4HK1) 1A-29
Glow Plug
Mass Air Flow (MAF)/ Intake Air Temperature (IAT)
Sensor (Euro4 specification)
Intake Air Temperature (IAT) Sensor (Except Euro4
specification)
Connector No. E-22
Connector Color Gray
Test Adapter No. J-35616-33
Pin No. Wire Color Pin Function
1 BLK Sensor low reference
2 LT GRN/
WHT
Sensor signal
Connector No. E-14
Connector Color Silver
Pin No. Wire Color Pin Function
1 BLK/RED Power Supply
LNW46ESH000701
Connector No. J-38
Connector Color Black
Test Adapter No. J-35616-64A
Pin No. Wire Color Pin Function
1 YEL MAF sensor 12 volts reference
2 GRN MAF sensor low reference
3 BLU MAF sensor signal
4 RED/GRN IAT sensor signal
5 BLK IAT sensor low reference
LNW46ESH001801
12345
LNW76ESH006101
12
LG4HKED-WE-0871.book 29 ページ ２００７年１１月２９日 木曜日 午後６時２９分
