Isuzu 2008MY N Series User Manual

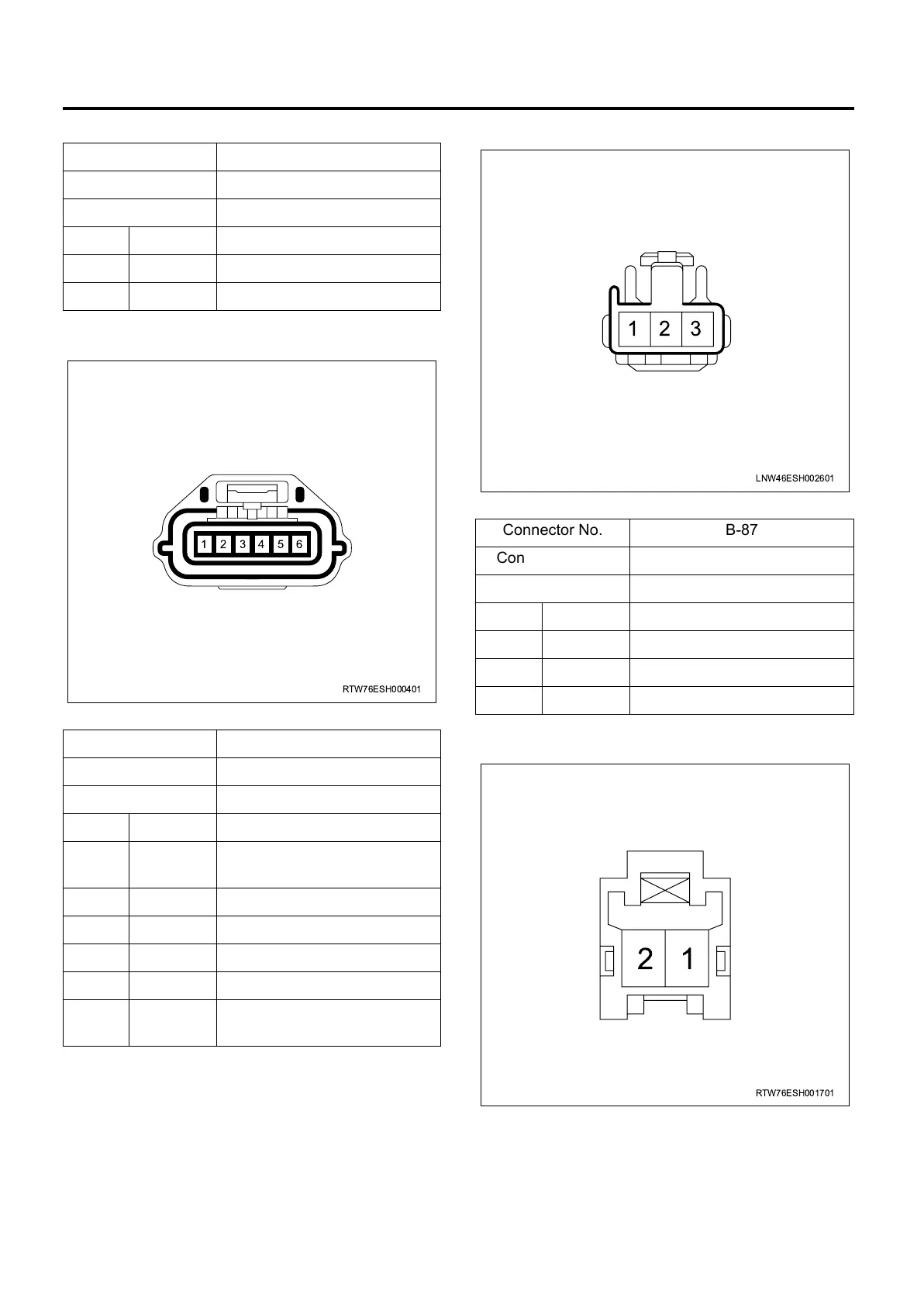

1A-30 Engine Control System (4HK1)
Intake Throttle Valve
Idle Up Sensor
PTO Switch
Connector No. J-217
Connector Color Gray
Test Adapter No. J-35616-16
Pin No. Wire Color Pin Function
1 RED/GRN Sensor signal
2 BLK Sensor low reference
Connector No. E-16
Connector Color Black
Test Adapter No. J-35616-64A
Pin No. Wire Color Pin Function
1 GRN Solenoid control low side
(PWM)
2 BLK/GRN Solenoid drive voltage
3 - Not used
4 BLK Position sensor low reference
5 VIO/WHT Position sensor signal
6 YEL Position sensor
5 volts reference
RTW76ESH000401
456123
Connector No. B-87
Connector Color White
Test Adapter No. J-35616-33
Pin No. Wire Color Pin Function
1 BLU Sensor low reference
2 BLU/YEL Sensor signal
3 BLU Sensor 5 volts reference
LNW46ESH002601
123
RTW76ESH001701
2 1
LG4HKED-WE-0871.book 30 ページ ２００７年１１月２９日 木曜日 午後６時２９分
