ITC T-4120UC User Manual

10
5. OPERATION ILLUSTRATION
7. Speaker Connection
Before turning on the device, please carefully confirm that the load is constant-voltage or
constant-impedance speakers and set the amplifier to the corresponding output mode. It is
forbidden to switch the constant voltage and constant impedance state arbitrarily when the
power is on.
Constant voltage mode: Turn the switches corresponding to CH1/CH2: 4-16Ω and CH3/CH4:
4-16Ω to OFF.
Constant impedance mode: Turn the switches corresponding to CH1/CH2: 4-16Ω and CH3/CH4:
4-16Ω to ON.
The operation method is as follows:

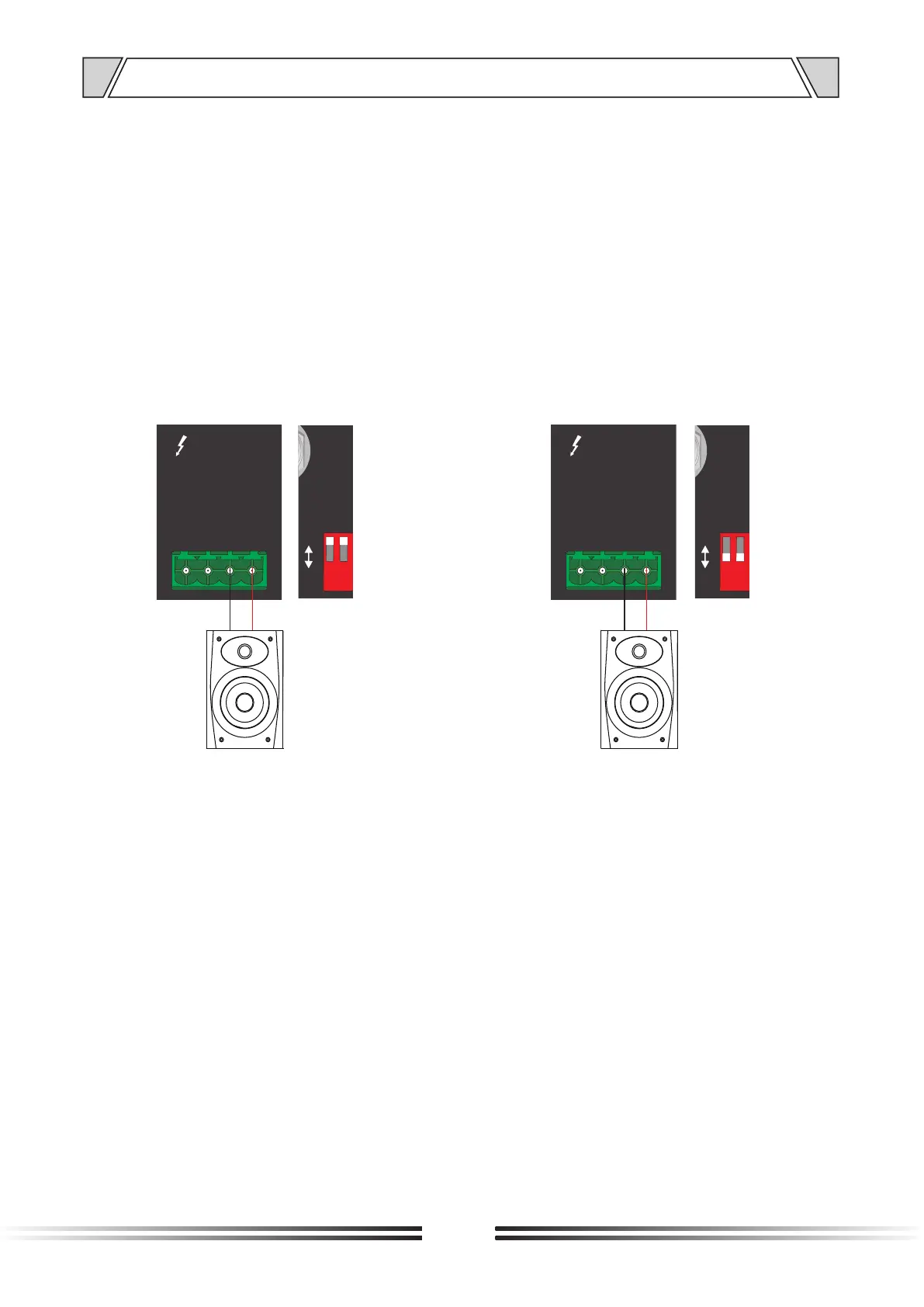

①When the 100V and speaker output
mode selection switch is set to the 100V
position, as shown in the figure below:
4-16Ω
②When the 100V and speaker output
mode selection switch is set to the 4-16Ω
position, as shown in the figure below:
4-16Ω
8. Audio source priority
EMC >MUTE >REMOTE MIC >INPUT1-4 >LINE1-2。
100V voltage speaker
OUTPUT
CH2
+ +
- -
CH1
100V/4-16Ω
SPK-SPK+
C
H
1
/C
H
2
:
4
-1
6
Ω
C
H
3
/
C
H4:4
-
16Ω
1
2
OFF
O
N
D
IP
4Ω constant impedance speaker
OUTPUT
CH2
+ +
- -
CH1
100V/4-16Ω
SPK-SPK+
CH1
/C
H
2
:
4
-1
6
Ω
C
H
3
/C
H
4:4-16Ω
1
2
OF
F
O
N
DIP
