CONNECTING SPEAKERS
5. OPERATING
Before connecting speakers, disconnect the AC
power cable. Note the proper connecting terminals
as shown Below. Make certain that the total impe-
dance is not less than the rated impedance indicated.

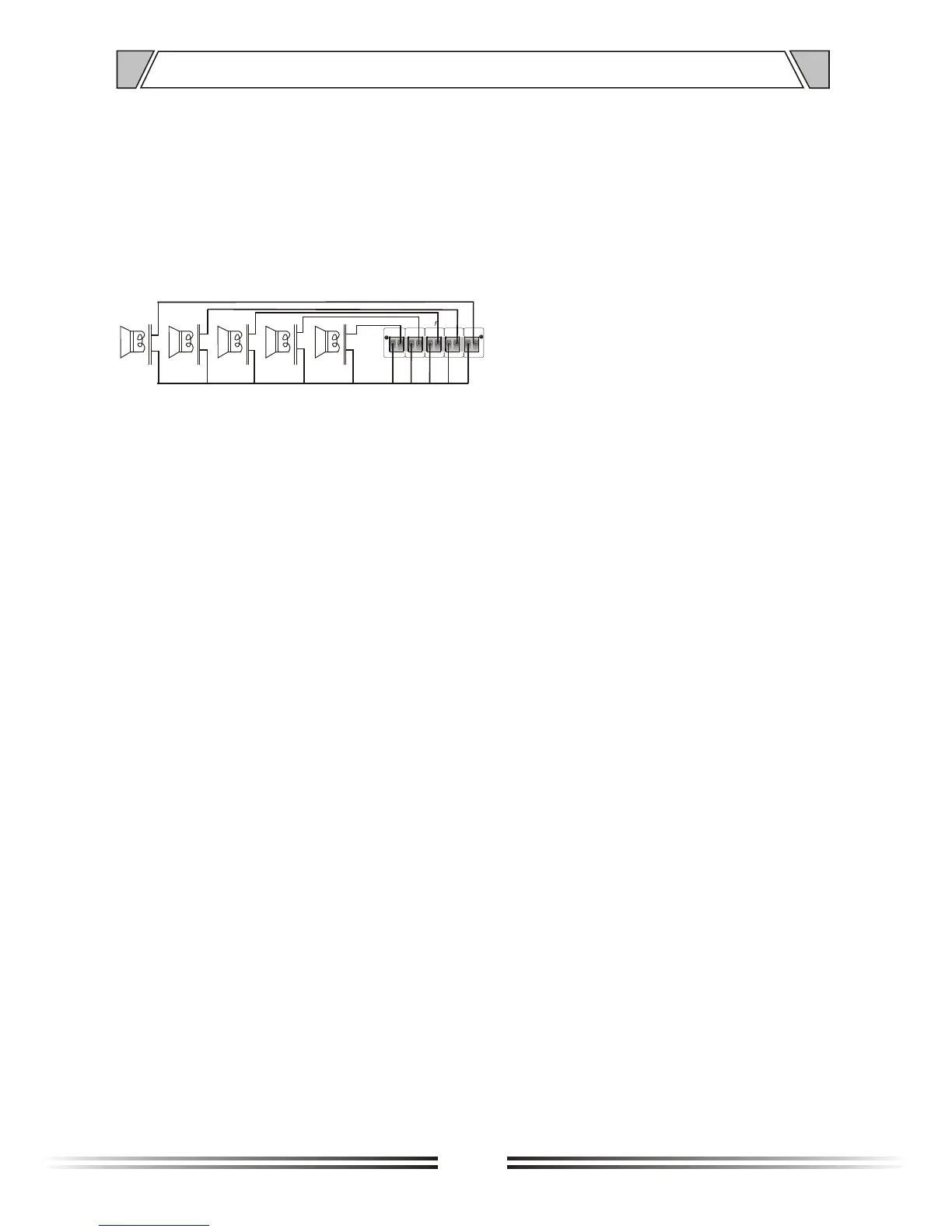

CONNECTING HIGH-VOLTAGE DISTRIBUTED
SPEAKER SYSTEMS
When connecting speaker system in parallel,
you can connect speakers with a total rated input
of up to 100W.
NOTE: Be sure that total impedance is not less than
rated impedance. (See upper chart.)
WARNING: Extreme care must be exercised when
connecting high-impedance systems, as
Potentially Hazardous voltages may be
present at these terminals.
Do not install this equipment in a confined space with
less-than-adequate ventilation.
=
COM 100V
CH 1 CH 2 CH 3 CH 4 CH 5
COM 100V COM 100VCOM 100V COM 100V
COM 100W100W100W100W100W
8
