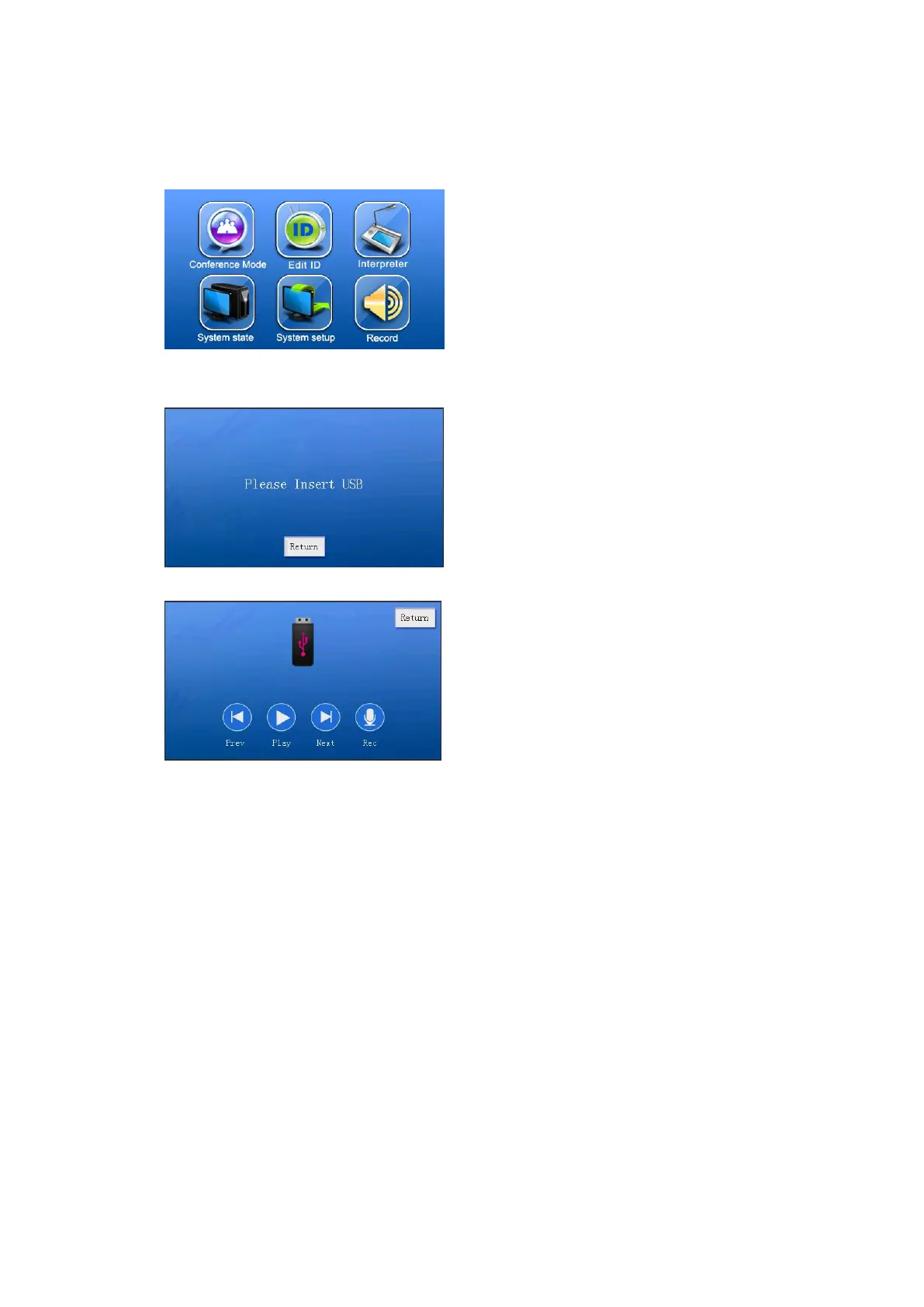

4.1.6 Recording
Click “Recording” in the main menu. Then the operator can play the BGM or record the mixing
sound in LINE IN and MIC, if the USB was plugged in.
If no USB plugged in, the system will prompt “Please plug in the USB”.
If USB was plugged in, the interface will display the USB icon, You can play background
music and recording.
4.1.7 Camera control
Conference host support VISCA / PELCD_D camera protocol, the user can directly connect a
camera through 232/422 method, you can also connect the camera tracking host to multiple cameras,
Need to use PC software to achieve the camera settings, currently only support to track the wired
microphone.
4.1.7.1 Camera connection and configuration
422 mode --- users can connect to the camera's 3,4 port directly by using CAMERA-422
interface which behind the host ,through the PC software prepare before the meeting->camera
control page to operate VISCA / PELCD_D protocol camera, if finish setting the corresponding
camera place, selecting and saving the preset position, then save all unit present position,
Finally to select the panorama and save (must follow this order). After saving, the user can choose
the preset position and see if it is correct. After finishing, check if the camera retreat mechanism is
correct through to turn on/off the microphone.
