ITC TS-W100 User Manual

36
4.2.16 Controller offline detection

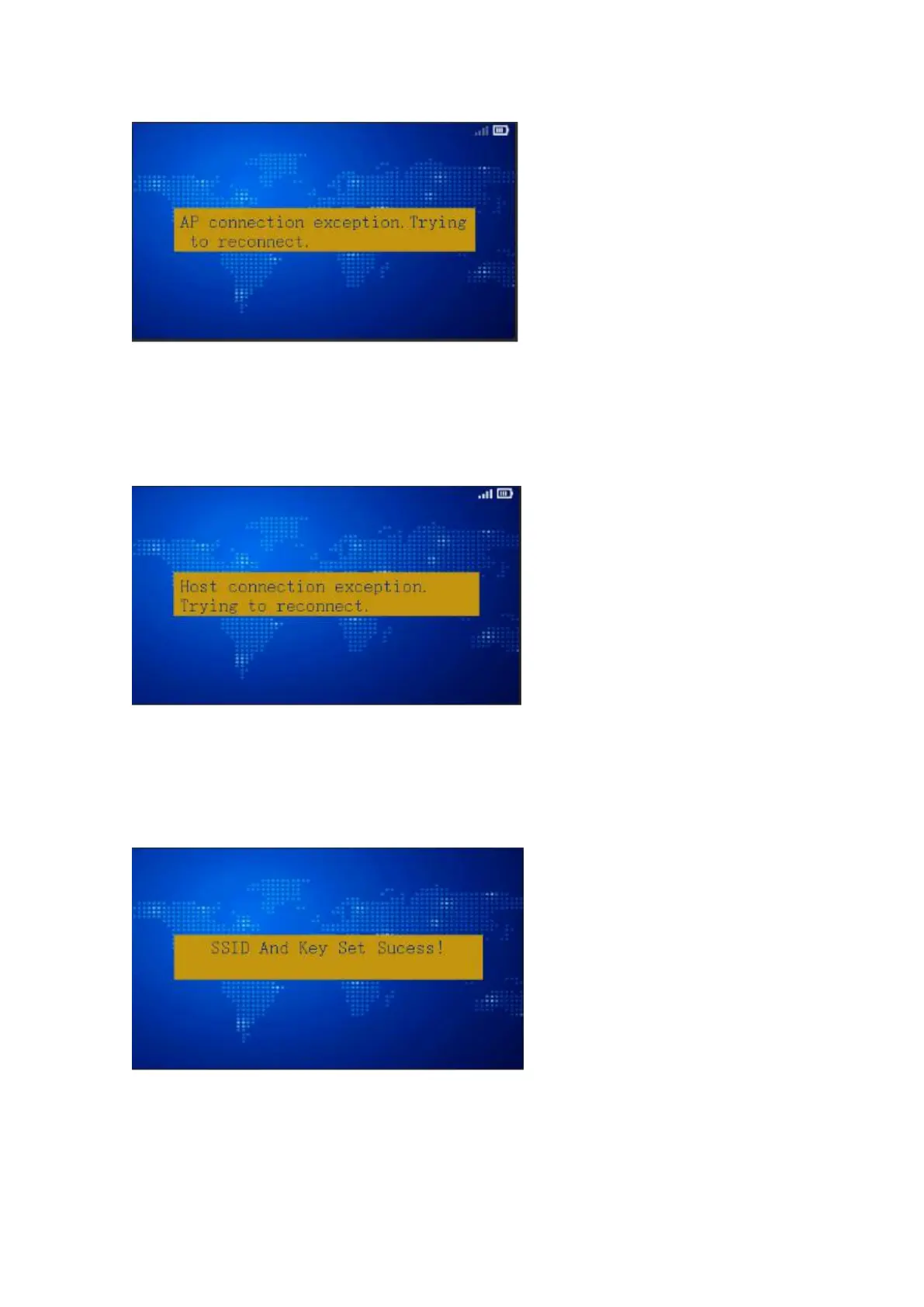

When network is disconnected or the controller power off for about 60 seconds, W101 / W101A
will pop up the following dialog box. If the controller recovers to normal work, then it will return to
the main page.
4.2.17 WIFI SSID and password modification
In the boot state, connect the wireless unit’s USB port to PC, and then modify the software by
SSID , after modification, the wireless unit will prompt the following page, then auto shut after 2
seconds.
4.2.18 Repeat ID detection
If the ID is same for different units, it will display as follows. Then need press the ID button, to
reset ID .

ITC TS-W100 Specifications

General

Brand	ITC
Model	TS-W100
Category	Conference System
Language	English
