4.2 TS-W101/W101A Operation instruction
4.2.1 Boot and start

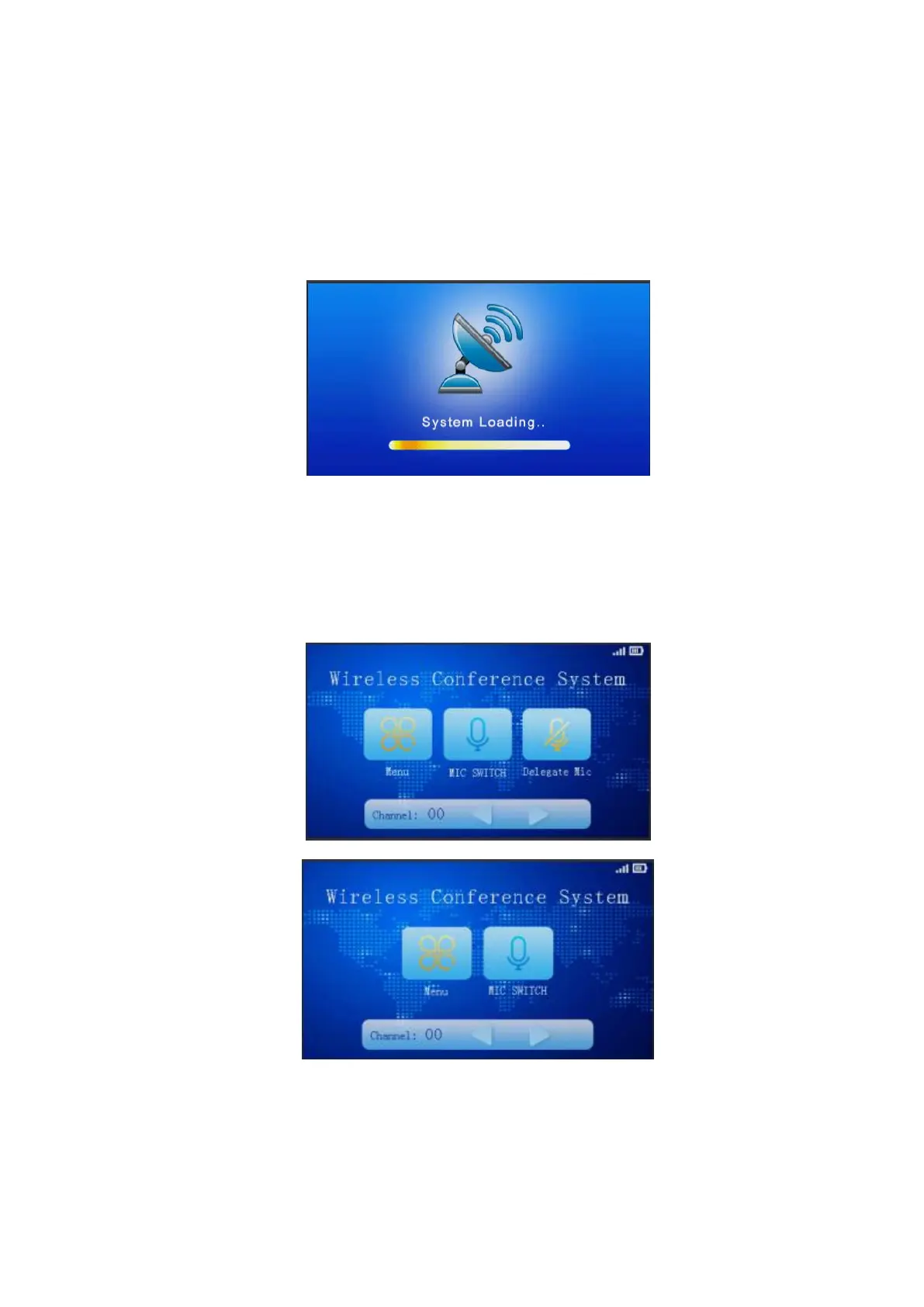

Turn on the host power to start the conference system, unit screen display "System Loading ...",
start page as follows:
Turn on the system, the touch screen display LOGO interface, Turn on microphone,priority,service
function are temporarily expire, and click the relevant button prompting"wait for network connection,
please wait";because it still has not connected to the network,the upper right corner signal strength
shows Gray, the connection time is 45S,you can operate before it connects successfully.Channel: It
shows the current actual channel number,there is no use when you press button up and down in
current version,only for channel 0, the correct LOGO interface as follows:
