Basic Operation

Minimum high level input

voltage

1.6V

Typical high level output

voltage

Typical low level output

voltage

Level rise slope 10us

Level fall slope 2us

The maximum sink current of each pin is 100mA, and the maximum output

current is 1mA.

Pins Introduction

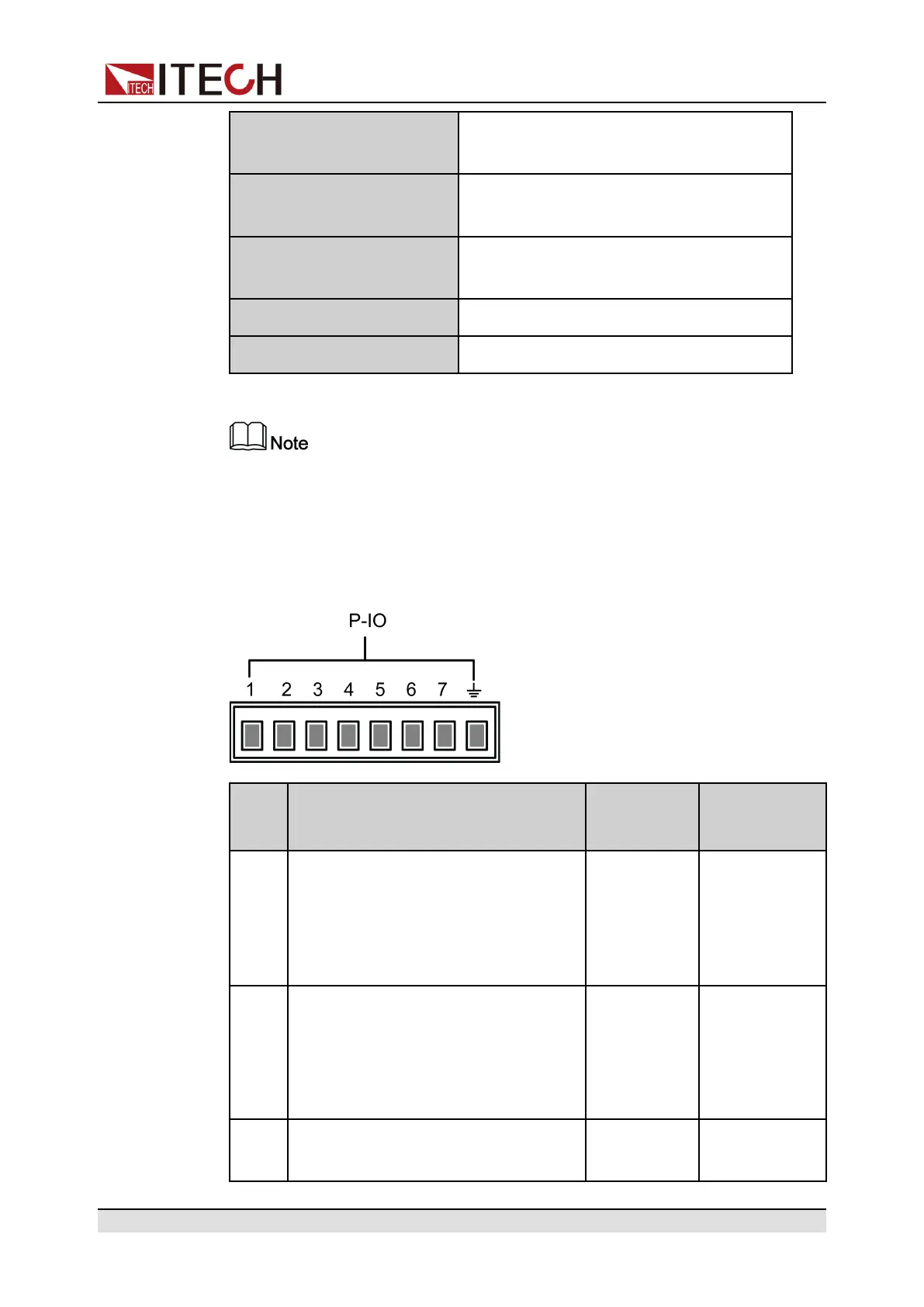

The appearance of the terminals are shown below.

Pin Description Properties

(Default

function)

Properties

(General I/O

function)

1 Corresponds to the function set in the

System→Digital Port→IO–1. Ps-

Clear, Not-Invert menu item. For pa-

rameter introduction, see 5.11.1 IO–

1. Ps-Clear, Not-Invert.

Pulse signal Level or PWM

signal

2 Corresponds to the function set in the

System→Digital Port→IO–2. Ps,

Not-Invert menu item. For parameter

introduction, see 5.11.2 IO–2. Ps,

Not-Invert.

Level signal Level or PWM

signal

3 Corresponds to the function set in the

System→Digital Port→IO–3. Off-

Level signal Level or PWM

signal

166

ITech IT6000C Series User Manual
