ITech IT6000C Series User Manual

Basic Operation
2. Calculate the Mx and Mb under the Ch1, Ch2, Ch3 menus according to the
above formulas.

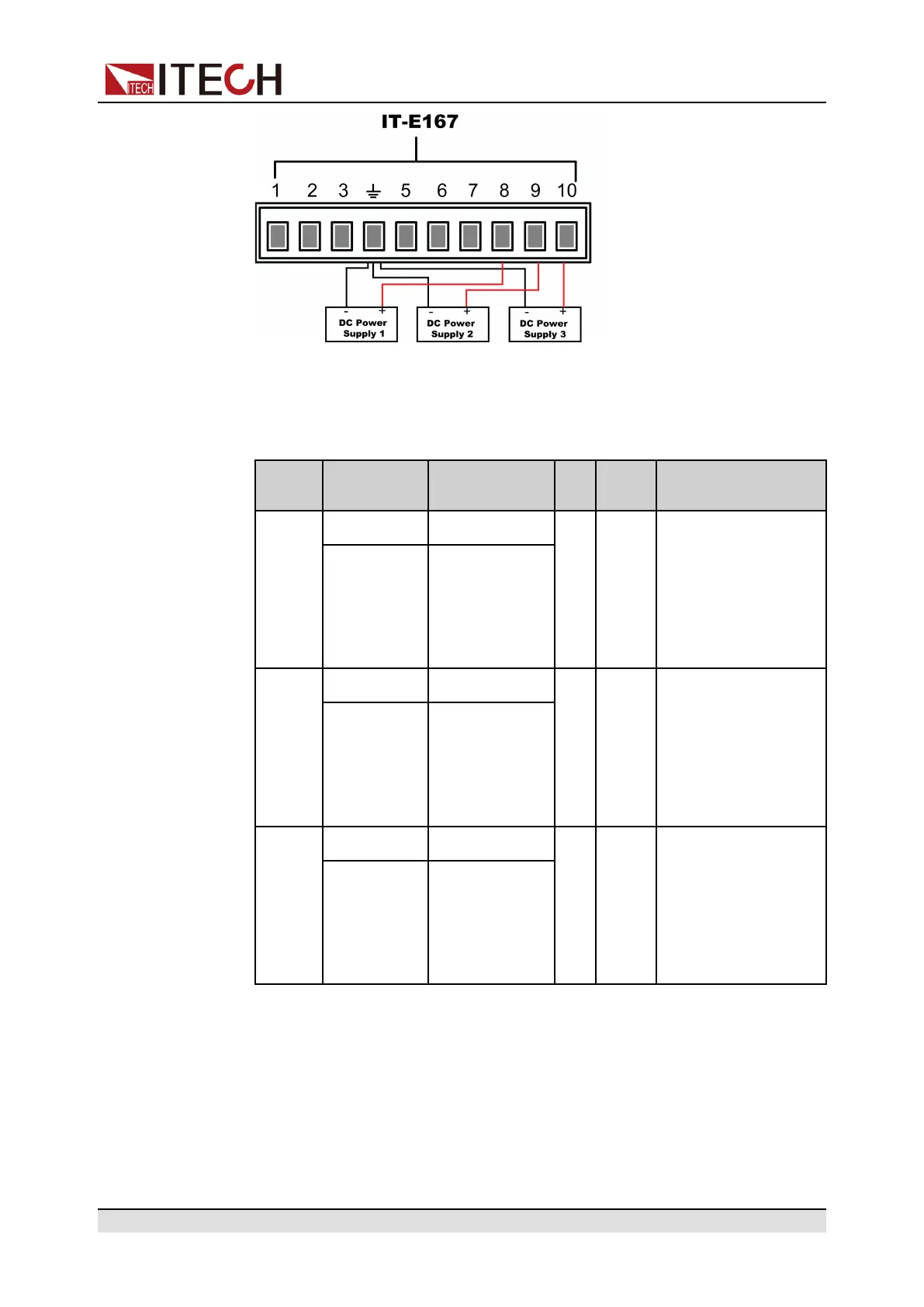

The sample data used in this manual is shown in the table below.
Pins Input
Voltage
Output Volt-
age / Current
Mx Mb Description
8 V
in1
= -5 V
out1
= 0 50 250 By inputting a volt-
age of -5V to 5V to
pin 8, the actual out-
put voltage Vs is
controlled from 0 to
500V.
V
in2
= 5 V
out2
= 500
9 V
in1
= -10 I+
out1
= 0 1.5 15 By inputting a volt-
age of -10V to 10V
to pin 9, the actual
output current upper
limit I+ is controlled
from 0 to 30A.
V
in2
= 10 I+
out2
= 30
10 V
in1
= -10 I-
out1
= -30 1.5 -15 By inputting a volt-
age of -10V to 10V
to pin 10, the actual
output current lower
limit I- is controlled
from -30 to 0A.
V
in2
= 10 I-
out2
= 0
3. Press the composite keys [Shift]+[P-set] (System) on the front panel to en-
ter the system menu.
4. Use knob or Up/Down key to select Ext-Program and press [Enter].
5. According to step 2, set Mx and Mb of the corresponding pins.
6. Set the Ext-Program→On / Off to On to turn on the analog function.
