Power Supply Function
User-defined Startup Voltage Waveform System
The user can define the startup voltage, ranging from 8V to 32V. When the
waveform program is divided into 8V-16V, the waveform is consistent with
standard 12V; when the waveform program is divided into 16V-32V, the wave-

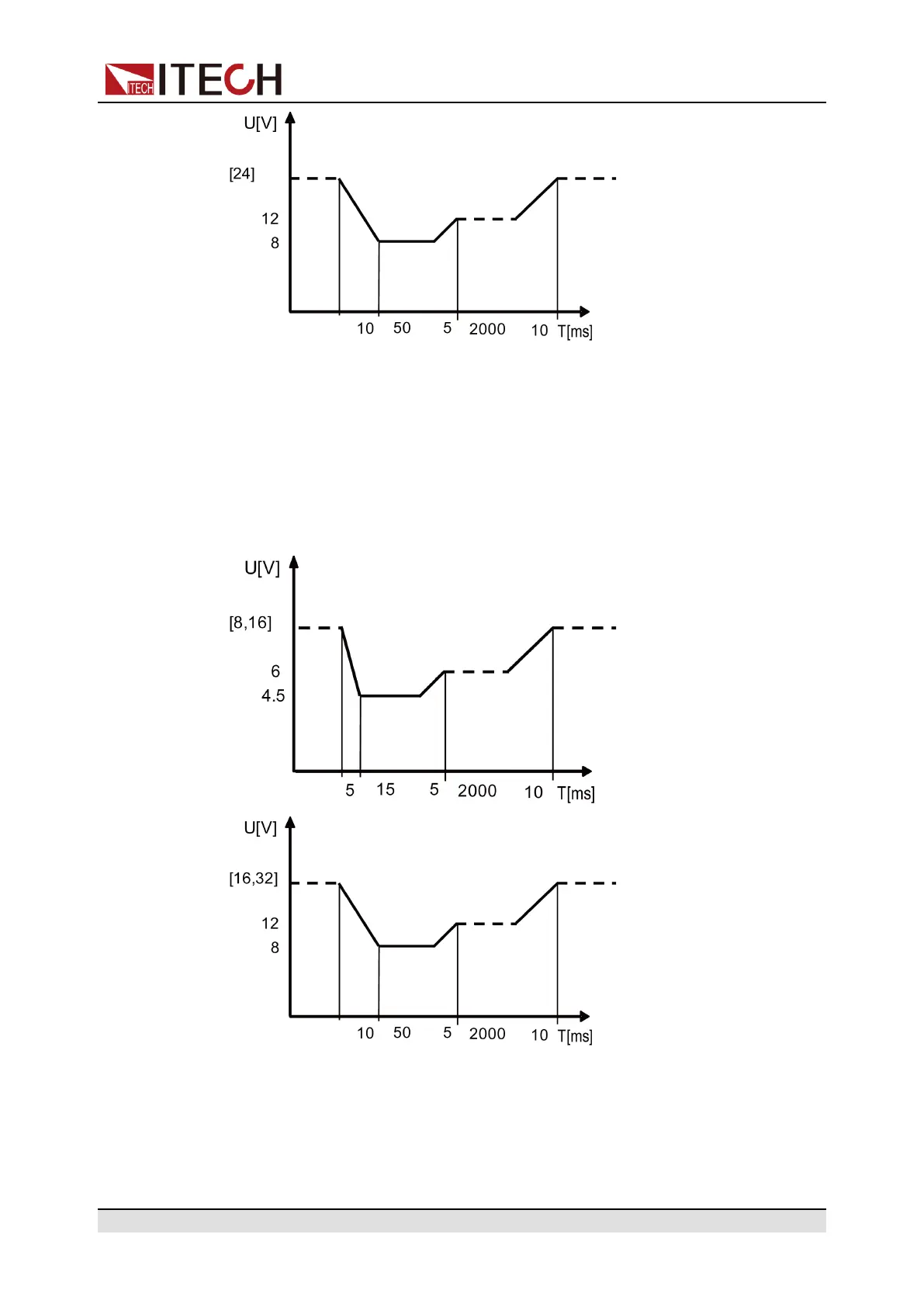

form is consistent with the standard 24V waveform. The waveform diagram is
shown below.
How to Use
Recall the self-defined DIN waveform operation (taking 12.5V voltage waveform
as an example):
Copyright © Itech Electronic Co., Ltd.
88
